12V Battery Voltage Chart: Accurate Charge Levels for Lithium, LiFePO4, and Lead Acid Batteries

As solar installations, RV setups, off-grid cabins, and backup power systems become more common, managing your batteries effectively is crucial. At the heart of good battery management is a solid understanding of the 12V battery voltage chart, a reliable tool that helps you monitor charge levels, optimize performance, and extend battery life.

At Solar Guys Pro, we equip energy enthusiasts and homeowners with actionable knowledge. In this comprehensive guide, we’ll explain how to read and use voltage charts for 12V batteries, covering lithium, LiFePO4, AGM, and traditional lead acid options.

What Is a 12V Battery Voltage Chart?

A 12V battery voltage chart correlates a battery’s voltage level with its state of charge (SOC). It’s an essential tool for determining how much energy remains in your battery without relying on advanced monitoring systems. This chart becomes especially important when working with off-grid solar setups or RV applications.

Voltage values vary by battery chemistry, so separate charts are used for:

  • 12V lithium battery voltage chart

  • 12V LiFePO4 battery voltage chart

  • 12V AGM battery voltage chart

  • 12V lead acid battery voltage chart

These charts are based on resting voltage—meaning the voltage is measured after the battery has been idle (no charging or discharging) for at least several hours.

Why Voltage Monitoring Matters

Monitoring voltage gives you a real-time view of your battery’s condition and capacity. It helps you:

  • Accurately estimate remaining energy

  • Prevent deep discharges that shorten battery life

  • Avoid overcharging and potential damage

  • Detect performance issues early

This is especially critical in remote or mobile setups where losing power can mean being stranded or incurring costly replacements.

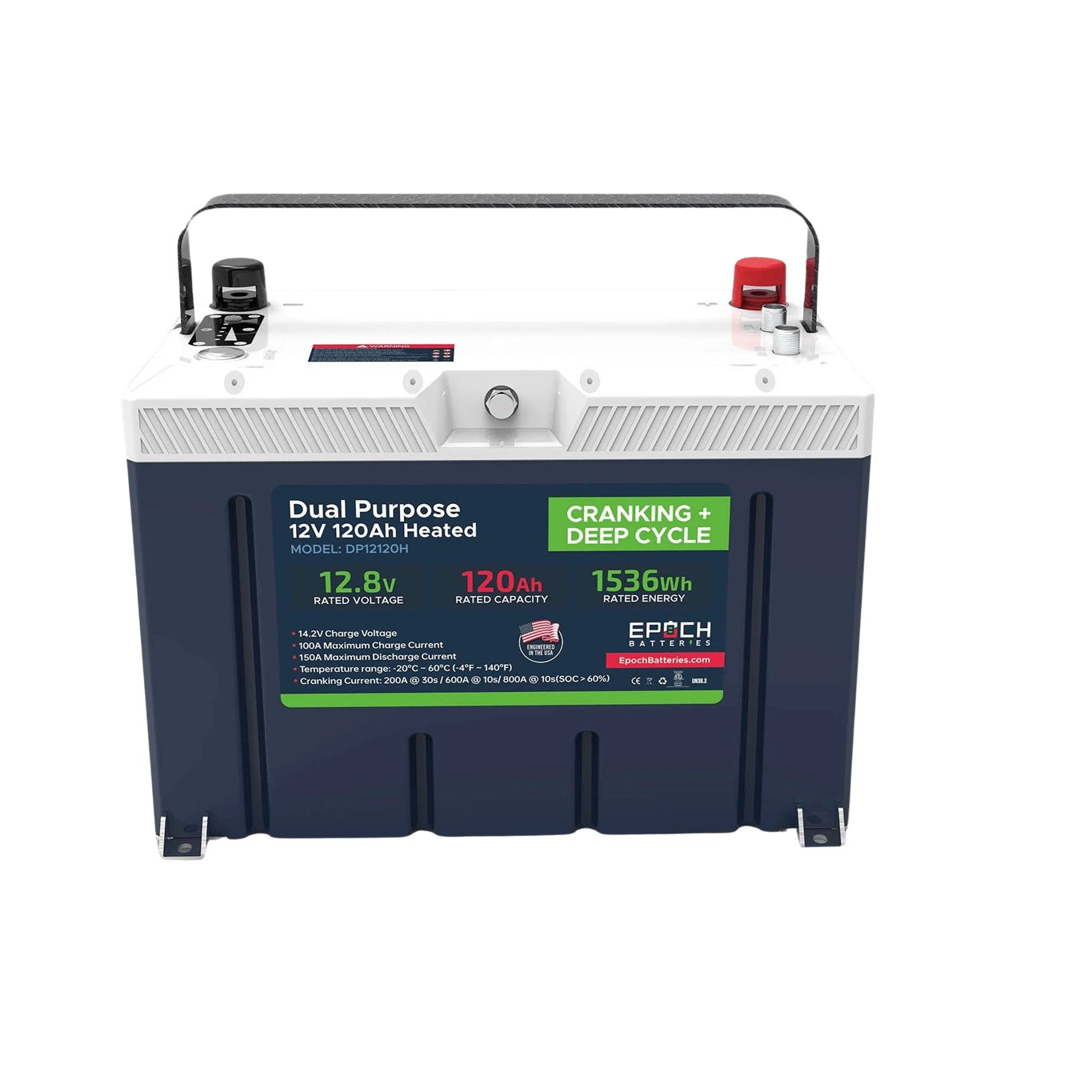

12V Battery Voltage Chart image 1

12V Lithium Battery Voltage Chart

Lithium-ion batteries are prized for their high energy density and low self-discharge. However, they feature a relatively flat voltage curve, meaning the voltage stays nearly constant until the battery is nearly empty.

12V Lithium Battery Voltage Chart:

State of Charge

Voltage (Resting)

100%

13.6V – 13.8V

90%

13.4V

80%

13.2V

70%

13.1V

60%

13.0V

50%

12.9V

40%

12.8V

30%

12.6V

20%

12.4V

10%

12.0V

0%

≤11.5V

Best Practice: Use a Battery Management System (BMS) and avoid discharging below 10% to prevent damage.

12V Battery Voltage Chart image 2

12V LiFePO4 Battery Voltage Chart

LiFePO4 (Lithium Iron Phosphate) batteries are ideal for solar and off-grid use due to their long cycle life, safety, and excellent thermal stability. They deliver more consistent voltage levels compared to other lithium-ion chemistries.

12V LiFePO4 Battery Voltage Chart:

State of Charge

Voltage (Resting)

100%

13.6V – 14.6V

90%

13.4V

80%

13.3V

70%

13.2V

60%

13.1V

50%

13.0V

40%

12.9V

30%

12.8V

20%

12.6V

10%

12.0V

0%

<11.5V

Best Practice: Keep LiFePO4 batteries between 20% and 90% SOC to maximize longevity.

12V Battery Voltage Chart image 3

12V AGM Battery Voltage Chart

AGM (Absorbent Glass Mat) batteries are a sealed form of lead acid technology. They are commonly used in RVs, marine systems, and off-grid homes due to their maintenance-free nature. Their voltage curve provides a more linear view of SOC than lithium options.

12V AGM Battery Voltage Chart:

State of Charge

Voltage (Resting)

100%

12.9V – 13.0V

90%

12.7V

80%

12.5V

70%

12.4V

60%

12.3V

50%

12.2V

40%

12.1V

30%

12.0V

20%

11.9V

10%

11.8V

0%

≤11.7V

Best Practice: Discharging below 50% SOC regularly will significantly reduce AGM battery life.

12V Battery Voltage Chart image 4

12V Lead Acid Battery Voltage Chart

Traditional flooded lead acid batteries require regular maintenance but are cost-effective upfront. Their voltage profile is similar to AGM batteries, though they typically offer fewer total cycles.

12V Lead Acid Battery Voltage Chart:

State of Charge

Voltage (Resting)

100%

12.7V – 12.8V

90%

12.6V

80%

12.5V

70%

12.4V

60%

12.3V

50%

12.2V

40%

12.1V

30%

12.0V

20%

11.9V

10%

11.8V

0%

≤11.6V

Best Practice: Avoid discharges below 50% SOC. Perform regular maintenance such as electrolyte checks and top-ups.

Key Differences Between Battery Chemistries

Feature

Lithium-Ion

LiFePO4

AGM / Lead Acid

Lifespan (Cycles)

1000–2000

3000–5000

300–800

Depth of Discharge

80–90%

90–95%

~50%

Maintenance

None

None

Required (flooded)

Upfront Cost

High

Medium-High

Low

Efficiency

~95%

~96%

~80%

Voltage Stability

Moderate

Very High

Low

Understanding these distinctions will help you choose the right battery for your application, whether you're powering a remote cabin, marine electronics, or an RV solar setup.

Tips for Accurate Voltage Monitoring

  • Measure at Rest: Always check voltage when the battery has been idle for a few hours.

  • Use a Quality Battery Monitor: Devices like the Victron BMV-712 provide precise SOC and voltage readings.

  • Avoid Deep Discharges: Follow SOC guidelines for each battery type to maximize service life.

  • Install a BMS: Especially for lithium and LiFePO4, to prevent unsafe overcharging/discharging.

  • Schedule Routine Checks: Weekly voltage reviews can catch early signs of trouble in off-grid setups.

Master Battery Health with the 12V Battery Voltage Chart

Understanding your 12V battery voltage chart is critical to getting the most out of your energy storage—whether in an RV, solar-powered home, or marine vessel. With insights into the charge curves of lithium, LiFePO4, AGM, and lead acid batteries, you’ll be equipped to make smarter decisions and avoid preventable battery failures.

Bookmark this guide from Solar Guys Pro to reference when assessing battery health. With regular monitoring, proper voltage awareness, and chemistry-specific best practices, your power system will remain reliable for years to come.
