Maximize Your Portable AC Efficiency: The Essential Guide to the ZERO BREEZE Mark 2 Venting Hose Setup

The ZERO BREEZE Mark 2 works best when its hot exhaust air is routed outside through a properly installed venting hose. The key is simple: keep the exhaust path short, sealed, and as straight as practical so the portable AC doesn't have to fight its own heat.

Key Takeaways

• The ZERO BREEZE Mark 2 uses a dedicated exhaust system to remove hot air from the cooled space.

• A properly installed vent hose helps prevent hot exhaust from leaking back into your tent, vehicle, RV, or room.

• Shorter and straighter is better: every unnecessary bend adds resistance to airflow.

• Don't crush, sharply kink, or tightly coil the hose behind the unit.

• Keep the exhaust outlet away from the Mark 2's intake area to avoid pulling warm air back into the cooling cycle.

• A 12V LiFePO4 battery can be an excellent portable power source for the Mark 2, but battery capacity and inverter losses still matter.

• A 48V LiFePO4 system is usually better suited to larger solar setups; don't assume a 48V system should connect directly to a 12V appliance.

• The best portable-AC setup combines good airflow, proper venting, adequate power, and sensible insulation.

• If you're building a portable solar-powered cooling setup, Solar Guys Pro can help you match the battery, solar, and power equipment instead of guessing.

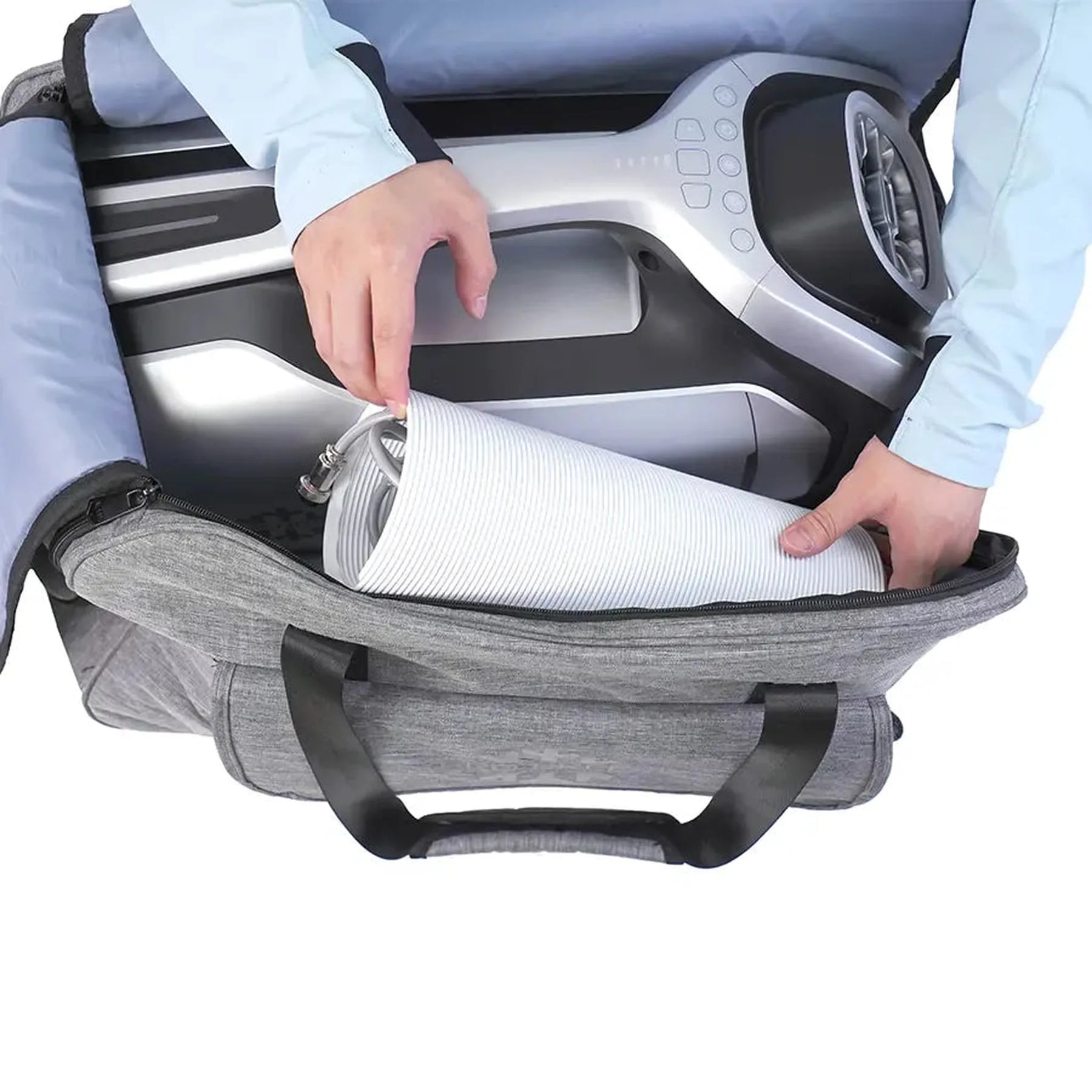

ZERO BREEZE Mark 2 Venting Hose

The ZERO BREEZE Mark 2 venting hose is the exhaust path that carries hot air away from the portable air conditioner. A correct setup keeps the hose securely attached, minimizes bends and restrictions, and positions the outlet where expelled heat won't return to the cooling area or interfere with the unit's air intake.

Why Venting Matters So Much on the ZERO BREEZE Mark 2

Look, portable air conditioners have one job that isn't obvious until you've used one in a small space:

They have to get rid of the heat they remove.

The ZERO BREEZE Mark 2 pulls warm air through its cooling system, transfers heat away from the conditioned air, and needs to discharge that heat through its exhaust path.

If that hot air simply ends up back inside your tent, vehicle, bedroom, or RV, you're fighting yourself.

We've seen this happen with portable cooling setups. Someone gets the Mark 2 running, feels cold air coming out of the unit, and assumes everything is fine. But then the surrounding space barely cools.

The first thing we'd check isn't always the temperature setting.

We'd look at the vent hose.

Is it kinked?

Is the outlet blocked?

Is the hot exhaust being dumped right next to the intake?

Is the hose stretched into an awkward shape with several sharp bends?

Those small details can make a noticeable difference.

The Biggest Venting Mistake We See

Here's a useful distinction:

A vent hose doesn't just need to be connected. It needs to breathe.

It's tempting to push the Mark 2 against a wall, compress the hose into the smallest possible space, and call the setup finished.

Don't.

A hose that's flattened or sharply bent creates additional airflow resistance. The blower has to work against that restriction, and the hot air doesn't leave the system as easily.

Think of it like drinking through a straw.

A straight straw is easy.

Pinch the straw halfway shut and suddenly you're working much harder to move the same amount of air.

The same basic idea applies to your exhaust path.

Our Pro Tip: Insulate the Hot Section, Not Just the Room

This is one detail that's easy to overlook.

If you're operating the Mark 2 in a tent, van, or small enclosed area, users often focus entirely on insulating the walls.

That's important.

But the exhaust hose itself can become a heat source.

If the hose runs through the cooled space before exiting outdoors, its warm exterior can radiate heat back into the area you're trying to cool.

So, where practical, keep the hot exhaust section outside the conditioned space as much as possible. If part of the exhaust path must travel through the cooled area, consider an appropriate heat-resistant insulation approach that doesn't restrict the hose.

Don't wrap the hose so tightly that you crush it.

The goal is to keep heat contained while preserving airflow.

ZERO BREEZE Mark 2 Venting: What You Need to Know

The Mark 2 is a very different animal from a large residential portable AC.

It's designed around portability.

That means your installation options are also different.

You might be cooling:

• A tent

• A camper

• An RV

• A van

• A workshop

• A small room

• A hunting or fishing shelter

• An off-grid sleeping area

Each space creates a different venting challenge.

In a tent, you may need to route the exhaust through a flap or dedicated opening.

In a van or RV, you may have a window or vent opening available.

In a room, you might create a temporary window pass-through.

Whatever method you choose, the principle stays the same:

The heat needs a clear path out.

Don't create a setup where the exhaust leaves the unit but immediately hits a wall, curtain, vehicle panel, or enclosure and gets trapped around the machine.

How to Set Up Your ZERO BREEZE Mark 2 Venting Hose

1. Choose the Exhaust Exit First

Before attaching anything, decide where the hot air is going.

This sounds backward, but it makes the rest of the installation easier.

Find an opening that's as close to the Mark 2 as reasonably possible while still allowing safe airflow.

A shorter route is generally preferable to running a long hose around furniture, seats, or equipment.

If you're using the Mark 2 in a vehicle, think about where the exhaust will leave the vehicle without allowing hot air to immediately return through another opening.

If you're unsure how to build the rest of the portable cooling setup, check out our solar kits and portable-power options before buying random components that may not work together.

2. Connect the Hose Securely

Attach the vent hose to the appropriate Mark 2 exhaust connection.

You should feel the connection seat properly rather than loosely resting in place.

Give it a gentle check.

You don't need to yank on it. You're simply making sure the connection isn't likely to separate when the unit starts operating.

When everything is fitted correctly, the setup should feel solid rather than flimsy.

That's important when you're moving gear around.

A portable AC, battery, cables, and accessories can turn into a surprisingly awkward pile of equipment.

3. Keep the Hose as Straight as Possible

This is where most portable installations can improve.

Don't automatically assume that a beautifully compact setup is an efficient setup.

A hose folded into several tight curves might take up less space, but it can make the exhaust path worse.

Try to use broad, gentle curves.

Avoid:

• Sharp 90-degree bends

• Crushing the hose under equipment

• Tight coils

• Blocking the outlet

• Pinching the hose against walls

• Placing heavy gear on top of it

If you can make the route shorter by moving the Mark 2 six inches closer to the exit, that's often a better solution than adding another bend.

4. Separate Hot Exhaust From the Intake

This one matters.

Your exhaust is carrying warm air away from the system. The intake needs a reasonable supply of air.

If you place the exhaust outlet directly beside the intake, you can create a hot-air loop.

The Mark 2 sends warm air out.

That warm air gets pulled back toward the unit.

The unit then has to deal with warmer air again.

You're basically handing the system the same problem twice.

Give the exhaust outlet enough separation from the intake and from the cooled-air outlet whenever your installation allows it.

5. Seal the Exit Around the Hose

The hose can be perfectly installed and still lose efficiency if your window, tent flap, or vehicle opening has a large gap around it.

Think about the whole path.

Hot air exits the hose.

It leaves the conditioned area.

Then the opening around the hose allows hot outdoor air to come straight back in.

That's not a hose problem.

That's a sealing problem.

Use a suitable removable seal or weather-resistant barrier for your installation.

For a temporary setup, you don't need to permanently modify your vehicle or building.

You just need to control the airflow.

6. Power the Mark 2 Properly

Venting is only half the equation.

The other half is power.

The ZERO BREEZE Mark 2 is designed as a low-power portable cooling solution compared with conventional household air conditioners, which makes it interesting for solar and battery systems.

A 12V LiFePO4 battery can make sense for a portable setup because LiFePO4 chemistry offers good cycle life and useful energy density compared with older lead-acid battery types.

But don't confuse a 12V battery with unlimited power.

A 12V 100Ah battery has roughly 1,200Wh of nominal stored energy before accounting for usable depth of discharge, conversion losses, temperature, and actual appliance consumption.

If your cooling setup averages 250W, the theoretical runtime calculation would be:

1,200Wh ÷ 250W = 4.8 hours

Real-world runtime will be lower or different depending on operating conditions and battery specifications.

And this is where people sometimes get into trouble.

A 48V LiFePO4 battery bank is excellent for larger solar systems because higher voltage means lower current for the same power.

But you shouldn't simply connect a 48V battery to a 12V appliance.

Use the correct DC-DC converter, inverter, or manufacturer-approved power system.

Voltage compatibility isn't optional.

Make the Space Easier to Cool

Here's something we learned early when working with portable cooling equipment:

The best portable AC is the one you don't force to overcome unnecessary heat.

If you're cooling a tent that's sitting in direct afternoon sunlight, the Mark 2 has a much harder job than it does inside a shaded, insulated shelter.

You can improve results by reducing heat gain.

Close unnecessary openings.

Use reflective material where appropriate.

Create shade.

Insulate large exposed surfaces.

Reduce air leaks.

Keep doors and windows closed when you're trying to hold the cool air.

This is basic physics, but it gets overlooked because everyone wants to focus on the AC itself.

The less heat entering the space, the less heat the Mark 2 has to fight.

A Real-World Setup Check

Before we call a portable AC installation finished, we'd walk around the setup.

Our team looks for a few simple things.

First, is the unit stable?

Then we checked the hose.

It's not being crushed, the connections are secure, and the exhaust isn't pointed into an enclosed pocket.

We also check the battery cables.

A good electrical connection should feel secure. Loose connections can create resistance and heat, especially as current increases.

And then there's the sound.

When everything is working correctly, you'll hear the normal hum of the cooling system and airflow. What you don't want is an obvious rattling, buzzing, or airflow noise caused by a hose being crushed against something.

That little check can tell you a lot.

If your portable cooling setup still isn't performing the way you expected, reach out to Solar Guys Pro. We'd rather help you identify the actual bottleneck than have you replace equipment unnecessarily.

Common ZERO BREEZE Mark 2 Venting Problems

The Hose Is Too Long

• Longer isn't automatically better.

• Extra length creates more opportunities for bends, compression, and heat transfer.

• Keep the route practical.

The Hose Is Kinked

• A kink can dramatically reduce the effective opening through which air can move.

• If you see a flattened section, fix it.

Exhaust Is Too Close to the Intake

• This can allow heated exhaust air to circulate back toward the unit.

• Move the outlet when possible.

The Exit Isn't Sealed

A large gap around the hose can allow outdoor heat and humidity back into your cooling area.

Seal it.

The Space Has Too Much Heat Gain

• If the shelter is poorly insulated or sitting in direct sunlight, your AC is fighting a much larger thermal load.

• Improve the space before blaming the machine.

Three Easy Ways to Improve Efficiency Tonight

1. Shorten the exhaust route.

Move the Mark 2 closer to the exit if you can.

2. Protect the cooled space.

Close unnecessary openings and reduce direct sunlight.

3. Check your power source.

• Make sure your battery, cables, inverter, and connections are correctly sized.

• These aren't exciting upgrades.

• They're just effective.

• And sometimes the best improvement is the one that doesn't cost anything.

Why This Matters for Solar-Powered Cooling

Portable air conditioning is one of those loads where solar system design becomes very practical.

• A phone charger is easy.

• A few LED lights are easy.

Cooling equipment is different because you're asking your energy system to provide power for an extended period.

That's why we like combining portable cooling with LiFePO4 storage and solar charging.

During daylight, your solar panels can replenish the battery.

The battery can then provide energy when solar production drops.

For larger systems, a 48V battery architecture can reduce current and make higher-power wiring more manageable. For smaller portable applications, 12V systems can be simpler and easier to transport.

There's no universal "best" voltage.

The right choice depends on the load, battery size, inverter or converter requirements, cable distances, and how portable the system needs to be.

If you're building a complete off-grid cooling setup and aren't sure which direction makes sense, our team can help you compare the options before you spend money on equipment that doesn't fit your system.

Semantic FAQ

Who needs a ZERO BREEZE Mark 2 venting hose setup?

Anyone using the Mark 2 in an enclosed or semi-enclosed space should pay close attention to exhaust routing. It's particularly important for tents, vans, RVs, small rooms, and other compact spaces where heat can build quickly.

What does the ZERO BREEZE Mark 2 venting hose do?

The venting hose provides a path for warm exhaust air to leave the cooling area. Proper routing helps prevent that heat from accumulating around the air conditioner or returning to the conditioned space.

Where should I put the vent hose?

Route it toward the nearest suitable exterior opening while keeping the path short and free from sharp bends. Keep the exhaust outlet away from the Mark 2's air intake and from openings where the hot air could immediately return indoors.

Why is my ZERO BREEZE Mark 2 not cooling well?

Check the exhaust hose first. A crushed hose, restricted outlet, hot-air recirculation, poor sealing, or excessive heat entering the space can all reduce practical cooling performance.

How can I run a ZERO BREEZE Mark 2 from solar power?

A properly sized LiFePO4 battery can store solar energy and provide power to the Mark 2. For a larger 48V solar system, use the correct power conversion equipment rather than connecting a 48V battery directly to a 12V appliance.

Final Thoughts: Get the Airflow Right First

The ZERO BREEZE Mark 2 is small enough to take places where a conventional portable AC simply doesn't make sense.

• That's the appeal.

• But portability doesn't eliminate the laws of thermodynamics.

• The heat still has to go somewhere.


Keep the exhaust route short. Avoid kinks. Seal the opening. Separate hot exhaust from the intake. Reduce heat entering the space. Then give the unit a battery system that can actually support the job.

That's how you get more useful cooling without automatically buying a bigger machine.
