Solar Charge Controller: What It Is, How It Works, and Why You Need One

In any solar power system, the solar charge controller is a critical component that ensures your batteries are charged efficiently and safely. Whether you're designing a small off-grid setup or a robust solar array for home backup, understanding the role of a solar charge controller is essential. This guide explains everything you need to know—from what it is, how it works, the differences between MPPT and PWM models, and how to choose the right one for your system.

You can find top-rated charge controllers and solar components at SolarGuysPro.com.

What Is a Solar Charge Controller?

A solar charge controller is an electronic device that manages the power going from your solar panels into your battery bank. Its main job is to prevent overcharging and to protect your batteries from discharging too deeply or receiving the wrong voltage. Without a charge controller, you risk damaging your batteries or shortening their lifespan.

This is especially important in systems using lead-acid, AGM, or lithium batteries, which all have specific voltage and current requirements. As a core component in renewable energy systems, it also plays a crucial role in system efficiency and energy regulation.

In short: if you're wondering what is solar charge controller technology used for, the answer is battery health, charging accuracy, and system optimization.

Types of Solar Charge Controllers

There are two primary types of charge controllers solar systems use: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking).

PWM (Pulse Width Modulation)

• Lower cost and widely available



• Best for smaller solar systems



• Works best when panel voltage matches battery voltage



• Reduces excess energy by pulsing rather than converting it

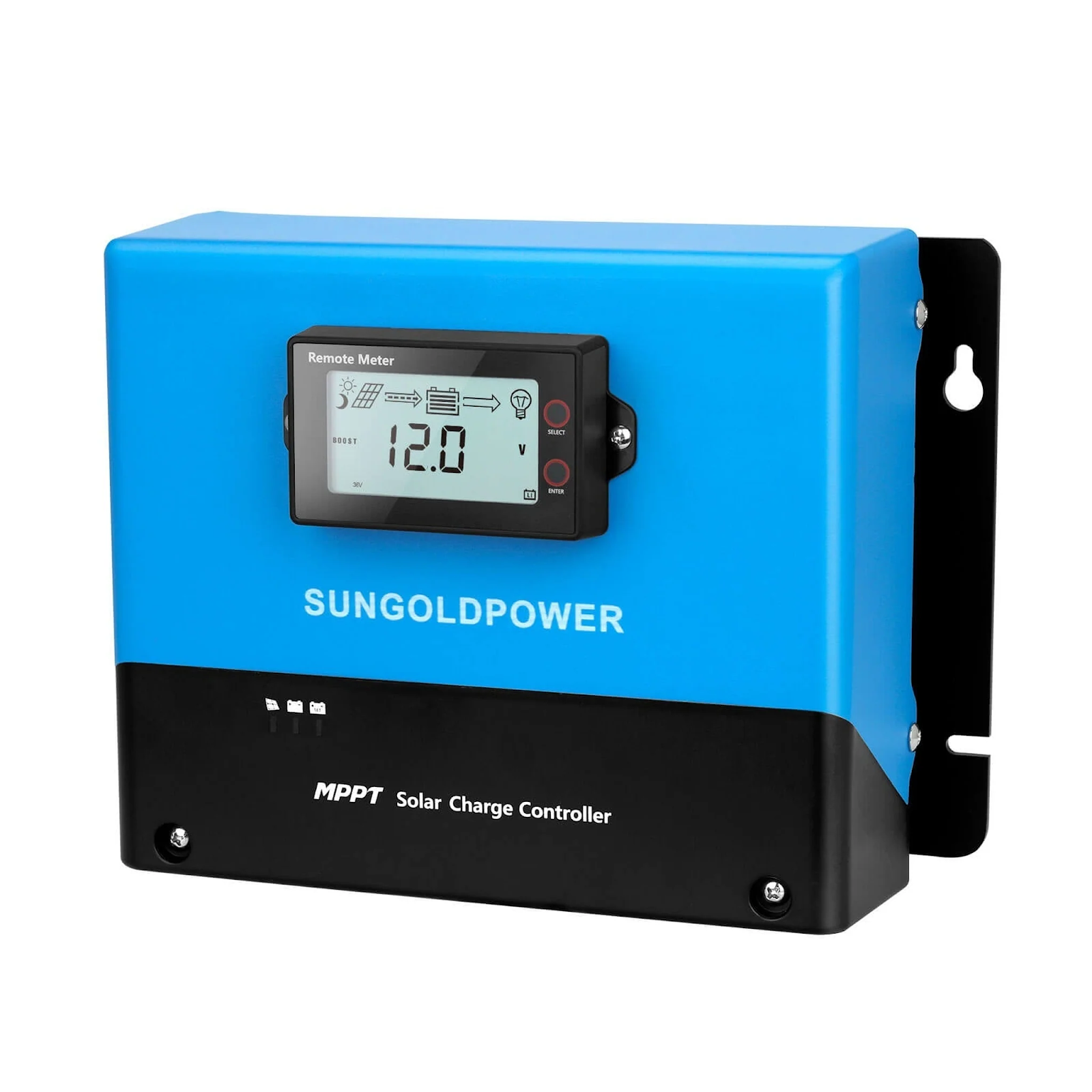

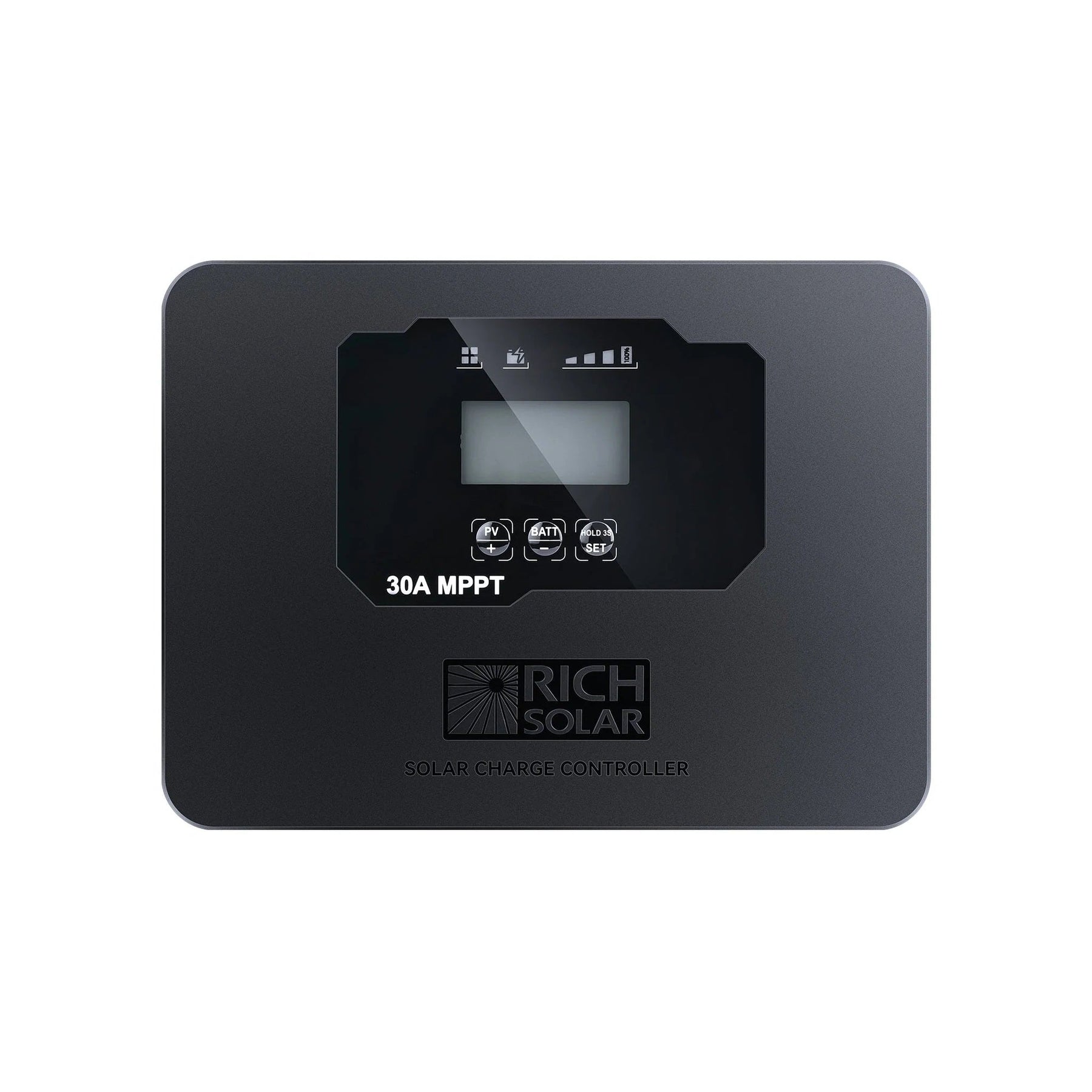

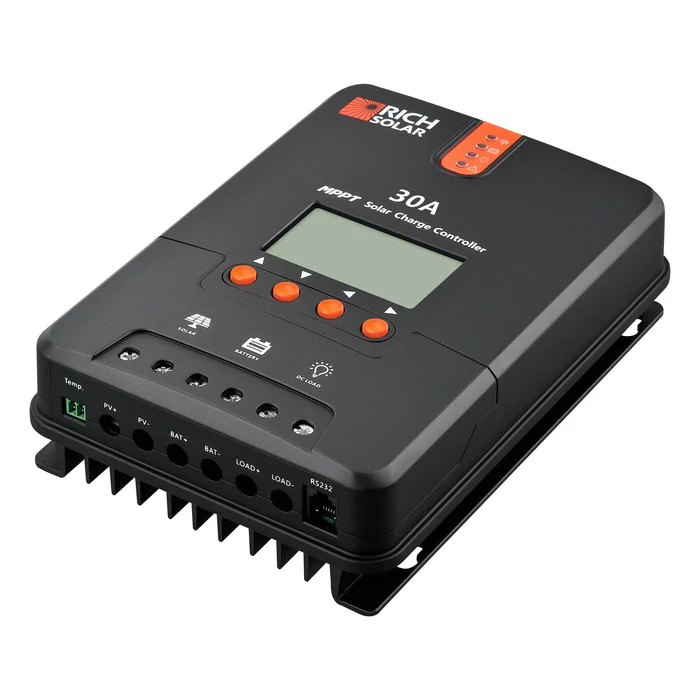

MPPT (Maximum Power Point Tracking)

• Higher efficiency (up to 30% more energy harvest than PWM)



• Adjusts voltage from solar panels to match the battery bank



• Ideal for larger or more complex solar systems



• Works well in cold, cloudy, or variable light conditions



Choosing an mppt solar charge controller is usually recommended if you're looking to maximize energy production and plan to scale your system.

How a Solar Charge Controller Works

The charge controller solar devices regulate the current and voltage flowing from your solar panels to your batteries. Here’s how:

1. Monitoring Input: The controller constantly monitors the output of the solar panel and the status of the battery.



2. Voltage Regulation: It ensures that the battery receives the appropriate charging voltage and prevents overcharging.



3. Load Control: Some models also allow you to connect DC loads directly and manage them via timers or thresholds.



4. Three-Stage Charging:



• Bulk: Delivers maximum current until battery reaches target voltage



• Absorption: Voltage held constant, current slowly tapers



• Float: Voltage lowered to maintain full charge without overcharging



An mppt solar charge controller constantly adjusts to find the maximum power point, extracting more energy from your panels than PWM units.

Why You Need a Solar Charge Controller

Whether you're setting up a basic RV system or a fully independent off-grid home, a solar charge controller is necessary for:

• Battery Protection: Prevents overcharging and over-discharging



• Efficiency Boost: Especially with MPPT technology, enhances system performance



• System Longevity: Protects your expensive batteries and panels from misuse



• Monitoring & Control: Many modern models offer display screens, Bluetooth, or app-based monitoring



Skipping a charge controller could lead to system failure or expensive battery replacement. Investing in the right unit saves money and improves reliability.

Key Features to Consider When Buying a Charge Controller

When browsing options on SolarGuysPro.com, here are the features that matter most:

1. Voltage Compatibility

Make sure the controller supports the voltage of your solar array and battery bank (e.g., 12V, 24V, or 48V).

2. Amperage Rating

This should exceed your system’s expected output to prevent overheating or damage. Use this formula:
Controller Amps = Total Panel Watts ÷ Battery Voltage

3. MPPT vs PWM

Choose MPPT for best efficiency and long-term value, especially if you plan to expand your system.

4. Battery Type Support

Ensure compatibility with lithium, AGM, gel, or flooded lead-acid batteries.

5. Monitoring Features

Some advanced models offer:

• Bluetooth or Wi-Fi



• App or PC-based data tracking



• LCD screen or LED indicators



6. Temperature Compensation

Critical for lead-acid batteries, it adjusts charging voltage based on ambient temperature.

Common Use Cases for Solar Charge Controllers

RV and Vanlife

Space-saving and compact MPPT controllers work well with mobile systems. Controllers keep your lithium or AGM batteries protected on the road.

Off-Grid Cabins

In remote systems, charge controllers manage daily cycles and are essential for reliable power generation. MPPT models ensure you get usable energy even on cloudy days.

Home Backup Power

Pairing solar with batteries? A quality charge controller balances your energy input/output and maximizes lifespan of the system.

DIY Solar Projects

If you’re experimenting with solar for gardening, lighting, or garage setups, a simple charge controller solar kit is a great starting point.

MPPT vs PWM: What Should You Choose?

If budget allows, always go for an mppt solar charge controller. The added efficiency can significantly reduce the size of your solar array or extend your battery runtime.

Installation and Safety Tips

• Follow the correct order: Always connect battery first, then solar panel, then load



• Use fuses or breakers: Add protection on both solar input and battery output



• Check wiring gauge: Undersized wires can overheat or drop voltage



• Avoid moisture: Install in a dry, ventilated place



• Monitor performance: Use the display or app to track voltages and charging current regularly

Making the Most of Your System with a Quality Solar Charge Controller

A solar charge controller is the heart of a well-functioning solar power system. Whether you're using an mppt solar charge controller for maximum performance or a basic PWM controller for simplicity, it ensures your batteries are protected and your energy system stays efficient.

From understanding what is solar charge controller technology to choosing the right model and features, we hope this guide helps you make an informed decision.
