Unstoppable Home Power: Why the EcoFlow DELTA Pro Ultra is the Ultimate Whole-Home Backup System

With the desire to have a single backup system to cater to large 120V and 240V loads without having fuel-based generators around, there is no better power product than the EcoFlow DELTA Pro Ultra that can serve as an extremely powerful device. This is due to the distinctive feature of combining a 6.144kWh LFP battery, 7,200W continuous AC output, and 120/240V split-phase power.

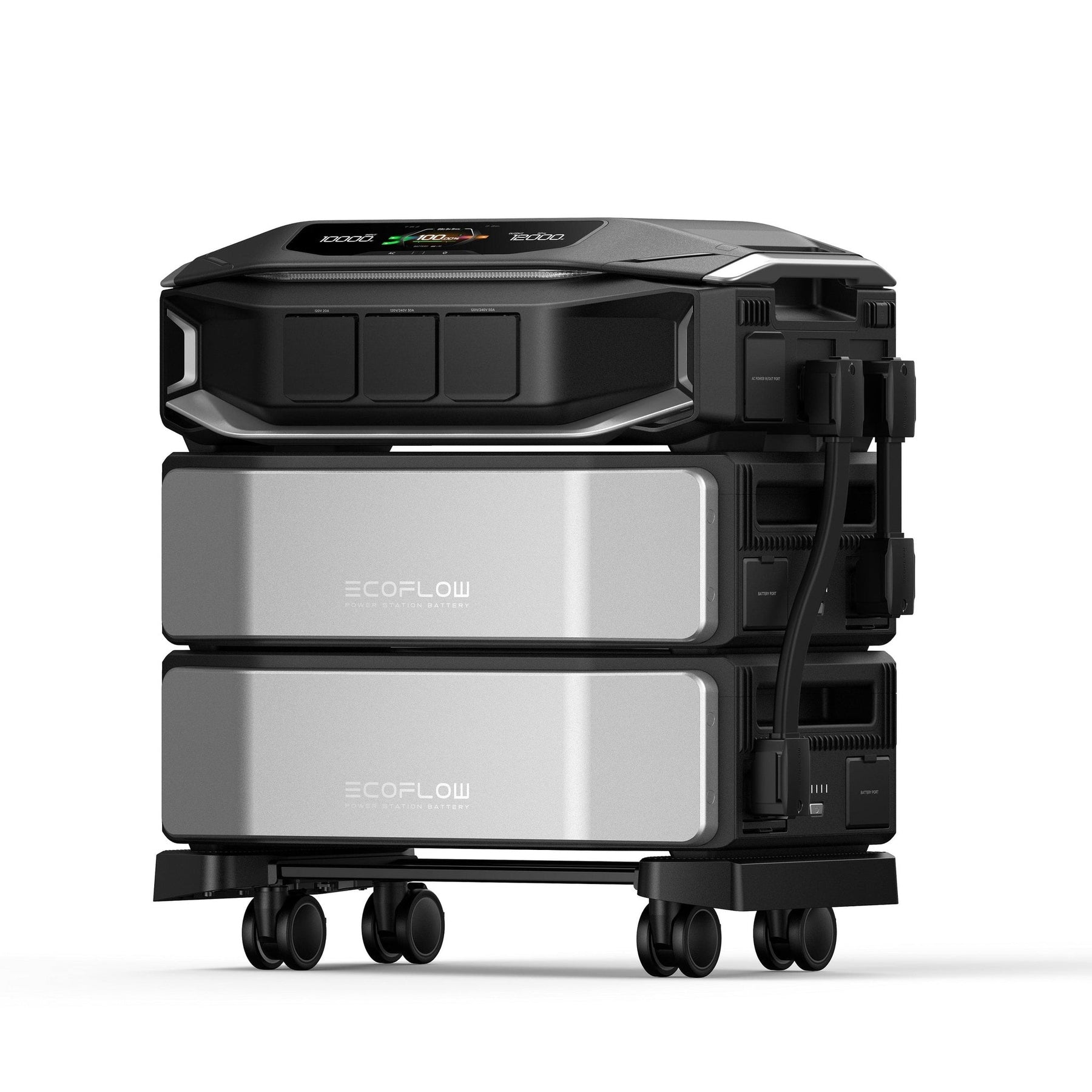

EcoFlow DELTA Pro Ultra

The EcoFlow DELTA Pro Ultra is a modular home energy storage system that features a 6.144kWh LiFePO4 battery with a 7,200W pure sine wave inverter. The single inverter provides an output of 120V/240V, while multiple batteries will help increase the energy storage up to 30kWh per inverter. Three inverters with 15 batteries will provide 21.6kW/90kWh.

Key Takeaways:

• 7,200W continuous output gives one DELTA Pro Ultra enough inverter capacity for demanding household loads.

• The battery uses LFP/LiFePO4 chemistry, rather than lead-acid or older lithium chemistries.

• A single battery stores 6,144Wh, with expansion to 30kWh per inverter.

• The system produces 120V and 240V split-phase AC, which matters for many household appliances.

• Solar input reaches 5,600W total, split between high-PV and low-PV inputs.

• Three inverter units can scale the system to 21.6kW/90kWh when paired with the appropriate EcoFlow home-backup equipment.

• It's a very different electrical architecture from a traditional 12V battery bank or even many 48V LiFePO4 DIY systems.

• Whole-home installation isn't simply a matter of plugging the battery into an outlet. Transfer equipment and professional electrical installation may be required.

Why is the DELTA Pro Ultra Different From a Typical "Solar Generator"?

Here's the deal: a lot of products get called solar generators when they're really portable battery packs with an inverter.

The DELTA Pro Ultra is built with whole-home power in mind.

At its core is a 102.4V, 6,144Wh battery using LFP chemistry. The inverter can deliver 7,200W continuously, with a listed 10.8kW surge capability. It also provides 120V/240V output rather than being limited to a single low-voltage AC circuit.

That voltage architecture is worth understanding.

A conventional DIY solar system might use a 12V LiFePO4 battery, a 24V bank, or a 48V battery bank feeding an inverter. Those lower-voltage systems can work extremely well, but high-power loads require substantial DC current.

The DELTA Pro Ultra takes a different approach internally. Its battery specification is 102.4V, while its inverter handles household AC output. That's one reason this isn't something you should approach like a basic 12V RV installation.

And there's another big advantage: expansion.

You can add batteries without redesigning the entire system around a completely different inverter.

The Numbers That Matter

The comparison isn't about saying one architecture is universally better. It's about understanding what you're buying.

A 12V system can be excellent for an RV, van, cabin, or small backup application. A 48V LiFePO4 system is a common choice for larger DIY solar installations because higher DC voltage reduces current for a given power level.

The DELTA Pro Ultra takes another step with its high-voltage battery architecture and tightly integrated inverter, controls, charging inputs, and battery management.

What Does It Feel Like to Build Around One?

We spend enough time around solar equipment to know that specifications don't tell the entire story

The DELTA Pro Ultra inverter itself weighs roughly 70 pounds, while each battery is around 112 pounds. That's not "portable" in the same sense as a small camping power station. You're moving serious hardware.

When you're putting the system together, you notice it immediately.

The battery isn't something you casually tuck under one arm. You feel the weight when positioning it. Connections need to be properly seated. You get that solid mechanical engagement when the components lock together.

That's actually useful feedback.

When you're building a high-energy storage system, sloppy connections aren't something to shrug off. Take your time. Follow the manufacturer's assembly procedure. Don't improvise cables or connectors because something "looks close enough."

For whole-home installations, EcoFlow specifically notes that the compatible manual transfer switch requires professional installation by a certified electrician.

That's one place where being a DIY enthusiast means knowing when not to DIY.

How-To: Build the DELTA Pro Ultra Into a Whole-Home Backup System

1. Start With Your Actual Loads

Don't start by asking, "How big of a battery should I buy?"

Start with the loads.

Write down your refrigerator, freezer, HVAC system, well pump, lighting, internet equipment, kitchen appliances, sump pump, computers, and anything else you consider essential.

Then separate running watts from startup/surge requirements.

A refrigerator that averages a modest amount of power can still have a much higher compressor startup demand. Motors and compressors are where many backup-power calculations go sideways.

2. Separate Energy From Power

This is one of the most important concepts in backup solar.

• kWh = stored energy.

• kW = power delivery.

A 6.144kWh battery doesn't automatically mean you can run a 6kW load for exactly one hour. Conversion losses, battery operating limits, load changes, reserve capacity, and other factors affect actual runtime.

The DELTA Pro Ultra gives you 7.2kW of continuous AC output, while battery expansion increases how long you can sustain loads.

3. Plan Your Solar Input

The DELTA Pro Ultra supports up to 5,600W of solar input through two PV inputs. The high-PV input accepts 80–450V, up to 4,000W, while the low-PV input accepts 30–150V, up to 1,600W.

This is where string planning matters.

Don't simply look at the panel wattage. Check the array's Voc, Vmp, Isc, and Imp, then make sure the finished string stays inside the DELTA Pro Ultra's voltage and current limits under the expected temperature conditions.

That's especially important because cold temperatures can raise panel open-circuit voltage.

4. Choose the Home Integration Method

For a true whole-home backup arrangement, you'll need the appropriate home integration hardware.

EcoFlow supports configurations using its Smart Home Panel 2, while its manual transfer-switch approach provides another way to connect selected circuits. EcoFlow states that its Smart Home Panel 2 setup can provide automatic backup switching in under 20ms.

A qualified electrician should handle the permanent house-side electrical work.

5. Test Before the Storm Does It for You

Here's a pro tip we don't think gets enough attention:

Do a controlled outage test before you actually need the system.

Don't wait for a hurricane, ice storm, wildfire-related outage, or utility failure to discover that your refrigerator is on the wrong circuit or that a large HVAC load pushes your system harder than expected.

Turn off utility power using the properly installed equipment, observe what transfers, check the DELTA Pro Ultra's load display, and verify that the appliances you actually care about remain powered.

Then restore utility power and verify the transfer back.

That test can reveal more than another hour of reading specifications.

If you're stuck deciding how to combine battery capacity, solar input, and your household loads, check out our solar kits and energy-storage options at Solar Guys Pro. Our team can help you work through the equipment instead of leaving you alone with a spreadsheet full of numbers.

Why LiFePO4 Chemistry Matters?

The DELTA Pro Ultra uses LFP, short for lithium iron phosphate, commonly called LiFePO4.

That's important for a home backup system because battery chemistry affects cycle life, thermal characteristics, charging behavior, usable energy, and system design.

EcoFlow lists the DELTA Pro Ultra at 80% capacity after 3,500 cycles under its specified conditions.

Compare that with the older lead-acid systems still found in some backup installations.

Lead-acid can absolutely work. But for a system you expect to cycle regularly, modern LFP storage offers a different balance of weight, usable energy, cycle life, and maintenance requirements.

And remember: chemistry isn't the only factor. The battery management system, temperature, charging profile, depth of discharge, and operating environment all matter.

The Other Big Advantage: Multiple Ways to Recharge

A backup system isn't truly resilient if the only way to recharge it disappears.

The DELTA Pro Ultra supports several charging sources, including solar, grid AC, generators, and EV charging through compatible equipment. EcoFlow lists total solar input at 5,600W and also describes generator and EV charging options.

That's where this system starts looking less like a giant battery and more like an energy-management platform.

Solar can refill it during daylight.

The grid can recharge it when utility power is available.

A compatible generator can provide another layer during long outages.

And EV charging can provide another charging path where compatible infrastructure and equipment are available.

That's redundancy.

Where does the DELTA Pro Ultra Make the Most Sense?

This system is especially interesting for homeowners who don't want to build a completely custom battery-inverter-charge-controller system from individual components.

You get the inverter, battery integration, monitoring, charging inputs, communications, and expansion architecture as part of one ecosystem.

It also gives you a clean upgrade path.

Start with one inverter and one battery.

Add storage when your runtime requirements grow.

For larger applications, three inverter units can reach 21.6kW of output and 90kWh of storage when configured with the appropriate EcoFlow equipment.

That's a very different proposition from buying a small portable power station and hoping it'll somehow run your entire house.

The Catch: Don't Treat It Like a Giant 12V Battery

This is the mistake I'd warn a new DIYer about first.

Don't take your experience with a 12V LiFePO4 battery, grab familiar wiring practices, and assume they translate directly to the DELTA Pro Ultra.

They don't.

The DELTA Pro Ultra uses a much higher-voltage internal battery architecture, and the AC side can deliver substantial power at both 120V and 240V.

That's exactly why installation procedures, grounding, overcurrent protection, transfer equipment, and local electrical requirements matter.

If you're not comfortable working inside a residential electrical panel, bring in a qualified electrician.

We'd rather see you finish a project safely than prove how tough your screwdriver skills are.

5 High-Intent Questions About the EcoFlow DELTA Pro Ultra

Who is the EcoFlow DELTA Pro Ultra for?

It's aimed at homeowners and users who need substantially more than basic portable backup power. Its 7,200W output, 120/240V capability, and expandable LFP storage make it suitable for serious residential backup applications.

What can the DELTA Pro Ultra power do?

A single unit provides 7,200W of continuous AC output and 120V/240V power, allowing it to handle many household appliances and larger loads when properly configured. Actual compatibility depends on the appliance's running and startup requirements.

Where should I install a DELTA Pro Ultra?

The system should be placed according to EcoFlow's environmental and installation requirements, with appropriate consideration for temperature, moisture, ventilation, access, and electrical connections. Permanent whole-home integration should be planned with a qualified electrician.

Why choose LiFePO4 for home backup?

LiFePO4 offers a useful combination of cycle life, stability, and energy density for repeated battery-storage applications. The DELTA Pro Ultra's LFP battery is rated by EcoFlow for 80% capacity after 3,500 cycles under its specified test conditions.

How do I make the backup last longer?

Reduce unnecessary loads, prioritize essential circuits, add battery capacity when appropriate, and use solar or another compatible charging source during the outage. Battery capacity determines how much energy you have available, while your home's instantaneous load determines how quickly you're spending it.

Is the EcoFlow DELTA Pro Ultra the Right Whole-Home Backup System?

Look, there's no magic battery that eliminates the need for load planning.

But the DELTA Pro Ultra gets the big pieces right: high inverter output, 120/240V AC, LFP chemistry, substantial solar input, multiple charging options, and serious capacity expansion.

That's why we see it as more than a portable power station.

It's a modular home-energy system.

And that's the real appeal. You don't have to build an entire high-voltage battery and inverter architecture from scratch just to get reliable backup power. You can start at a manageable size and expand the storage side as your needs change.

At Solar Guys Pro, that's how we approach DIY solar in general. The goal isn't to sell you the biggest pile of equipment possible. It's to match the battery, inverter, solar array, and electrical hardware to the job.

If you're comparing the DELTA Pro Ultra with a traditional 48V LiFePO4 system, reach out to our team before you order. We believe in open, responsive communication, and our solar tech team can help you sort through compatibility and system-design questions.
