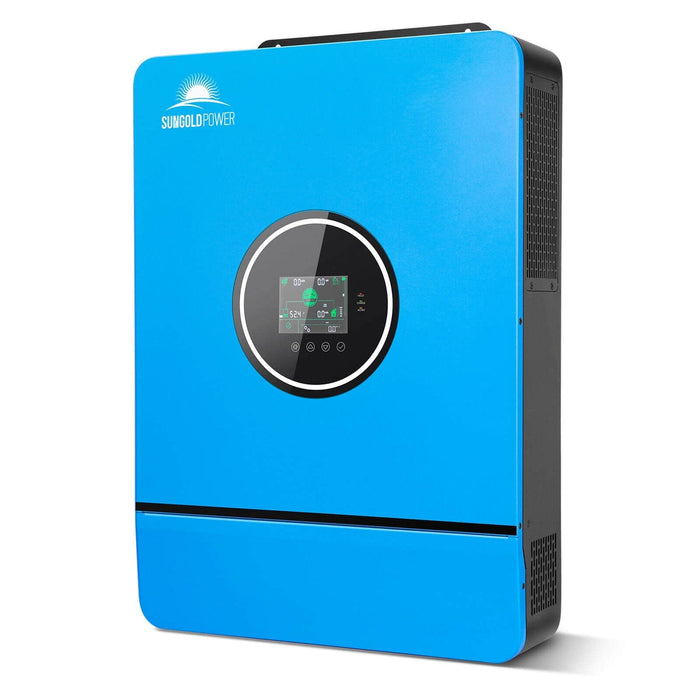

SunGoldPower | 10KW 48V Split Phase Solar Inverter
Overview
-
Integrated Design: This 10KW Pure Sine Wave Solar Inverter features a maximum 200A battery charger and includes two inbuilt MPPT solar controllers. It supports a maximum open circuit voltage of 500VDC and offers split-phase (120V/240V) or single-phase (120V) output. A Wi-Fi module is included, enabling users to monitor the inverter’s status and parameters through a mobile app. It is UL1741 listed by ETL.
-
Parallel Capability: You can connect up to six units in parallel for a total power output of 60KW. This setup allows for 120V single-phase, 120V/240V split-phase, or 208V three-phase support (with more than three units), enhancing both power and surge capacity.
-
Reliable AC Output with Protection: The inverter has a rated output power of 10,000W and a maximum peak power of 20,000W, with a loaded motor capacity of 6HP. It includes protections for PV input over-voltage/current, AC input over-voltage, battery over-voltage, and overload.
-
Multiple Charging and Output Modes: Features four charging modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging. It also offers four output modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority to accommodate various needs.
-
Time-Slot Charging/Discharging: The SPH series 10,000W inverter includes a time-slot charging and discharging feature, allowing users to customize charging and discharging times based on local peak and off-peak tariffs, optimizing the use of utility power and PV energy.
-
Battery Compatibility: Compatible with 48V AGM/Sealed, Gel, Flooded, and Lithium batteries, the inverter supports a user mode for all battery types and can operate without a battery. When a lithium battery is inactive, mains power and photovoltaics can activate it. The 48V split-phase inverter also supports CAN and RS485 communication with SunGoldPower batteries.
Key Features:
- Integrated with 2 Solar Controllers for enhanced functionality.
- Supports a maximum 11,000W PV input and 500V voltage capacity.
- Energy Saving mode feature included to optimize power consumption.
- Time-slot charging and discharging settings available for efficient energy management.
- Activation of the li-ion battery is triggered by mains or photovoltaic power supply access when dormant.
- Offers split-phase (L-N=120V, L-L=240V) and single-phase (L-N=240V) pure sine wave output.
- Compatible with various battery types and communication protocols.
- Provides 4 charging modes for flexible operation.
- Features two solar inputs with dual 99.9% efficiency MPPT and a maximum 22A current per circuit, ideal for high-power modules.
- Equipped with WiFi Monitoring capabilities, enabling convenient access to inverter data via mobile phone.
System Connection: The PV system can charge the battery and supply power to the load through the inverter. In the absence of power from the PV system or battery, the load can be powered and the battery can be charged using the grid or generator as a power source.
.
Grid Tied Function: This off-grid solar inverter operates in conjunction with solar panels to produce electricity, which is then stored in solar batteries. It functions autonomously, operating independently of the power grid.
