SunGoldPower | 2000W DC 24V Pure Sine Wave Inverter With Charger
Overview
-
The LFP Series Pure Sine Wave Inverter integrates an inverter, battery charger, and AC auto-transfer switch. It features low frequency, minimal idle current, BTS cable, and remote control.
- This 2000-watt inverter operates with 120VAC input and delivers 120VAC output power for appliances. It offers 50 or 60Hz output via the SW4 switch. By default, the inverter prioritizes AC, but users can opt for battery priority using the SW5 switch.
- The inverter allows adjustable charging current, ranging from 0% to 100% via a linear switch. Additionally, it facilitates Auto Gen Start functionality, initiating generator operation when battery voltage drops and turning it off upon battery charging completion.
Features
- Low-Frequency Pure Sine Inverter with Charger
- AC/Battery Priority Selector
- Automatic Generator Start
- GFCI Socket for Safety and Convenience
- Suitable for Powering All Kinds of Appliances
- LCD Display, Remote Control, and BTS Included
- Low Idle Consumption

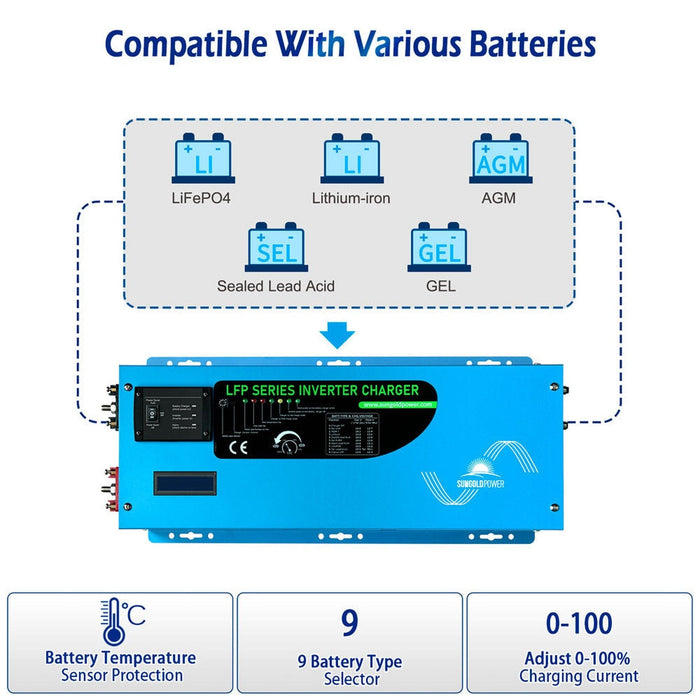

- Battery Type Settings Available for Charger
- Multi-Stage Smart Charger with 25+/-5A Output
- 10msec Typical Transfer Time

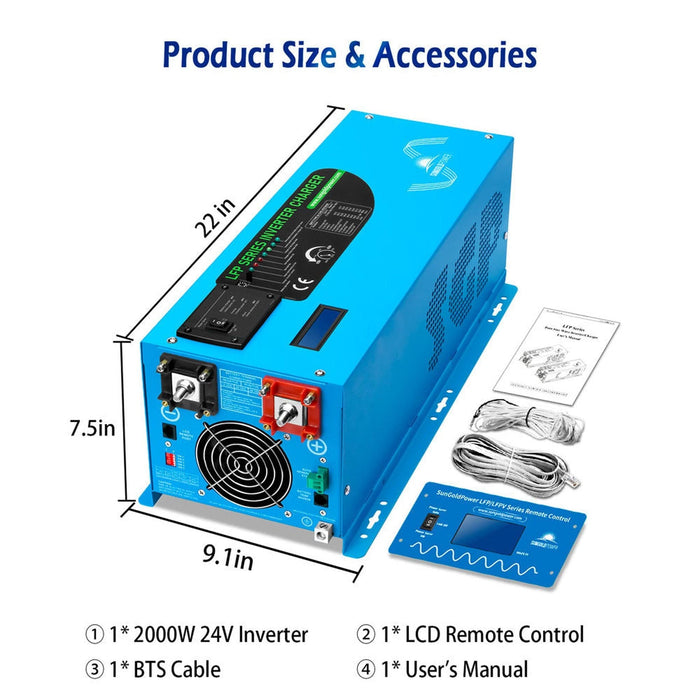

What's Included:
- 2000W 24V Low-Frequency Pure Sine Inverter
- English Manual
- Remote Control
- BTS Cable
- Unit Weight: 53LB
- Unit Size: 17.4 x 9.5 x 7.8 inch
- Shipping Weight: 57LB
- Shipping Size: 23.0 x 12.6 x 12.0 inch
Specifications：
Inverter Output:
- Continuous Output Power: 2000W
- Surge Rating: 6000W (20 Seconds)
- Output:120VAC, 60hz
- Output Wave: Pure Sine Wave (bypass mode)
- Typical Transfer Time: 10ms (MAX)
- Nominal Efficiency: >88%
DC Input:
- Nominal Input Voltage: 24.0Vdc
- Minimum Start Voltage: 20.0Vdc
- Low Battery Alarm: 21.0Vdc-22.0Vdc
- Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
- High Voltage Alarm: 32.0Vdc
- Low battery Voltage Restart: 26.0Vdc
- Idle Consumption: 25W
- Power Saver Mode Idle Consumption: 12W
AC Charger :
- Charger Rate: 25+/-5A
- AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (selected by SW2)
- Over Charge Protection Shutdown: 31.4V
- Selectable Charge Setting based on battery type Adjustable charge current: off 0%-100%
- 3-step intelligent battery charger
User Manual
Download LFP Series Pure Sine Wave Inverter/Charger User's Manual
