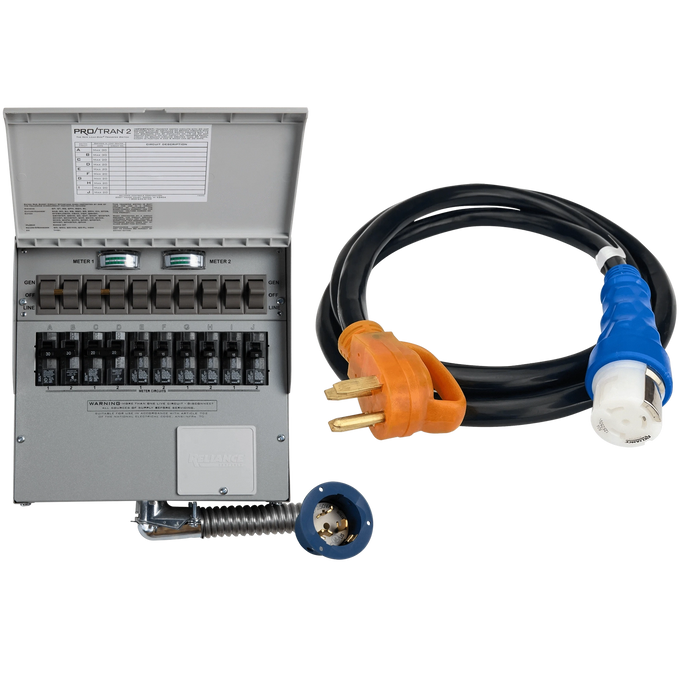

Anker Solix | Home Backup Kit (120V, 30 Amp, 6-Circuit Transfer Switch + Cable, For F2000 and F2600)
by Anker Solix
SKU B17B31A1
Original price
$549.00
-
Original price
$549.00
Original price
$549.00
$549.00
-
$549.00
Current price
$549.00
Overview
-
Pro/Tran® 2 50-Amp 10-Circuit 120/240V Manual Transfer Switch
The next generation of Loadside™ manual transfer switches, works flawlessly with Anker SOLIX F3800 & 2× F3800 Plus
-
(10) Total Circuits (1" Interchangeable Style)
(6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
-
NEW Color-Coded Built-In Wattage Meter
Helps you balance and manage Anker SOLIX F3800 load
-
Hinged, Non-Metalic Cover
Protects toggle swtiches/breakrs & povides a finished apperance
-
Powder-Coated Steel Cabinet For Indoor Installation
18" Flexible conduit w/ all factory wires clearly marked/colored
(6) Combination 1/2" & 3/4" knockouts for easier installation
Easily re-configured in the field for multiple 2-pole circuits
-
Safety & Certifications
Certified for use by Underwriter Laboratories to UL Stanard 1008 Meets all requirements of article 702 of the NEC ANSI/NFPA 70
- Covers up to 10 essential circuits backup (120V & 240V)
- Scalable up to 12kW and 53.8kWh for extended blackout.
What's Included
Transfer Switch
Cable
User Manual
Specification
| Specification | Details |
|---|---|
| Voltage | 120/240V |
| Frequency | 60 Hertz |
| Rated Watts | 12500 Watts |
| Rated Amps | 50 Amps |
| Enclosure | NEMA 1R |
| Conduit Length | 18 inches |
| Number of Circuit Breakers | 10 |
| Max Amp. Input | 50 Amps |
| Maximum Wattage | 12500 Watts |
| UL Listed | Yes |
| Weight | 20 Pounds |
| Place of Production | United States |
| Product Dimensions | 11.25 × 11.75 × 4.5 inches |
