Anker Solix | Home Power Panel with Subpanel Kit
Smart Energy Control for Your Home with the Anker SOLIX F3800

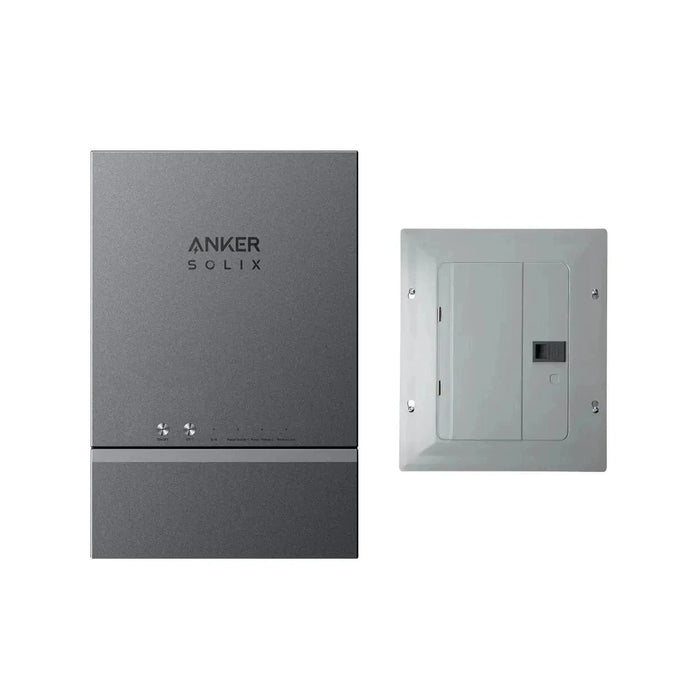

The Anker SOLIX Smart Home Power Kit with Subpanel is the ultimate solution for seamless integration of the Anker SOLIX F3800 Portable Power Station into your home's electrical system. This all-in-one kit combines the Home Power Panel and a dedicated subpanel to enable advanced energy management and reliable backup for essential circuits. Whether you're reducing peak power costs or ensuring continuous power during outages, this system delivers dependable and sustainable energy control.
Key Features
-
All-in-One Home Integration: Combines the Anker SOLIX F3800, grid power, and rooftop solar with a subpanel for critical appliances.
-
Smart Backup Power: Automatically powers selected essential home circuits during blackouts for peace of mind.
-
Advanced Energy Modes: Includes Self Consumption and Time-of-Use features to maximize savings and reduce reliance on the grid.
-
App-Based Control: Monitor and manage energy flows with the Anker app via Bluetooth or Wi-Fi for real-time updates.
-
Energy Independence: Reduces utility dependence and supports a more sustainable home environment.
Harness Solar Power for Daily Use
Add Anker SOLIX Home Power Panel and watch Anker SOLIX F3800 integrate your home power system, uniting the grid and rooftop solar panels. With the Anker app, you can manage energy and savings with modes like Self Consumption and Time-of-Use. Gain full control of solar power, optimizing battery cycles and reducing electric bills.
Automatic Switchover During Outages
Enjoy seamless transition to backup power with Anker SOLIX F3800 and keep life powered on. It's built to power multiple appliances simultaneously with up to 12,000W output and scalable storage up to 53.8kWh. The battery even automatically charges if severe weather is forecasted.
What's Included
- Anker SOLIX Home Power Panel
- Backplate Bracket (×2)
- Wall Bracket (×2)
- F3800 to Home Power Panel Cable (1.5m) (×1)
- 200A Current Transformer (Model: XH-SCT-S24) (×2)
- 100A Current Transformer (Model: CTSA016-100A/100mA) (×1)
- M6*60 Expansion Bolt (Secures Wall Bracket to Concrete Wall) (×4)
- M6*50 Hexagonal Self-Tapping Screw (Secures Wall Bracket to Wooden Wall) (×4)
- M4*10 Cross Recessed Countersink Screw (×10)
- Positioning Card
- Installation Guide

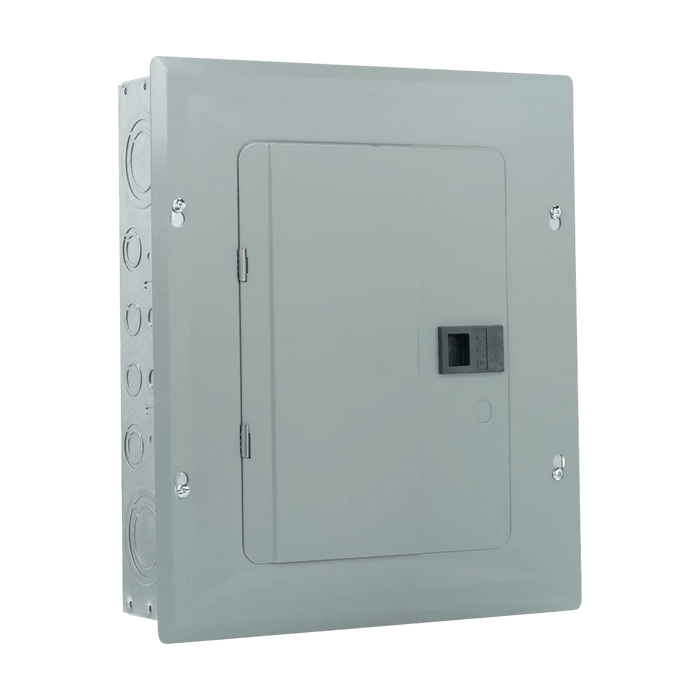

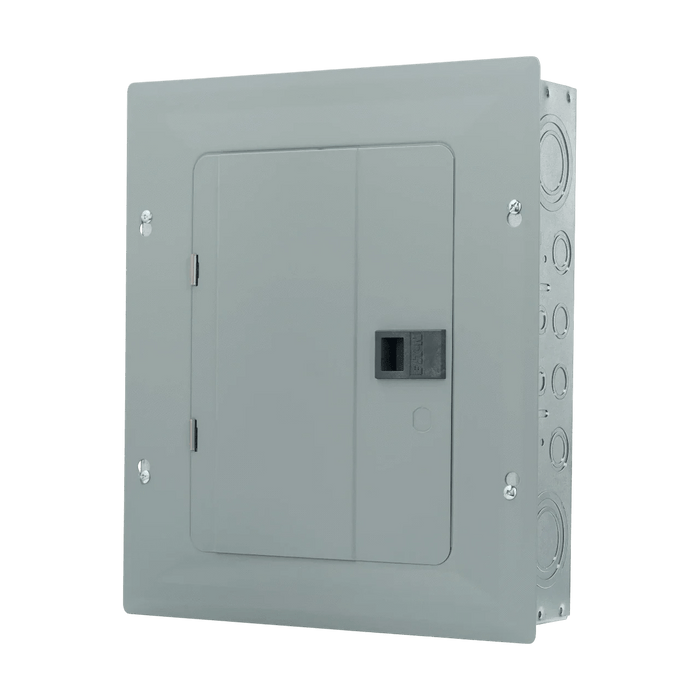

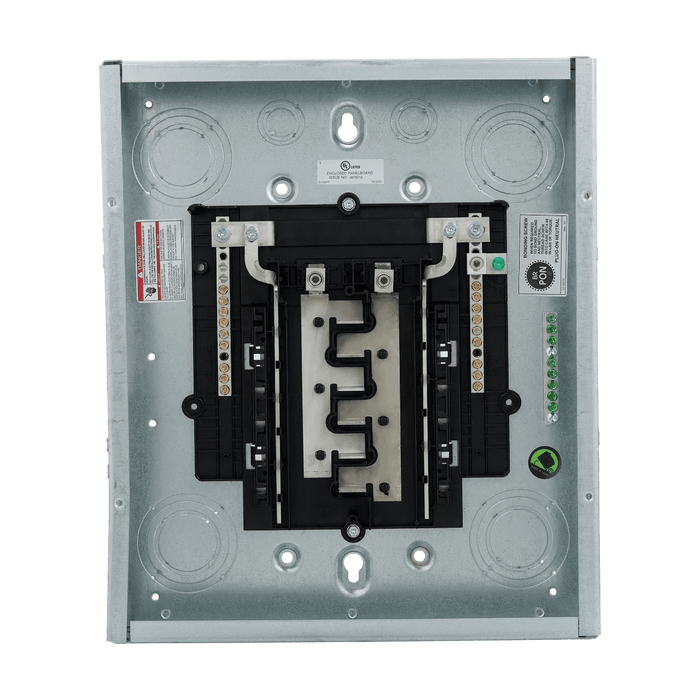

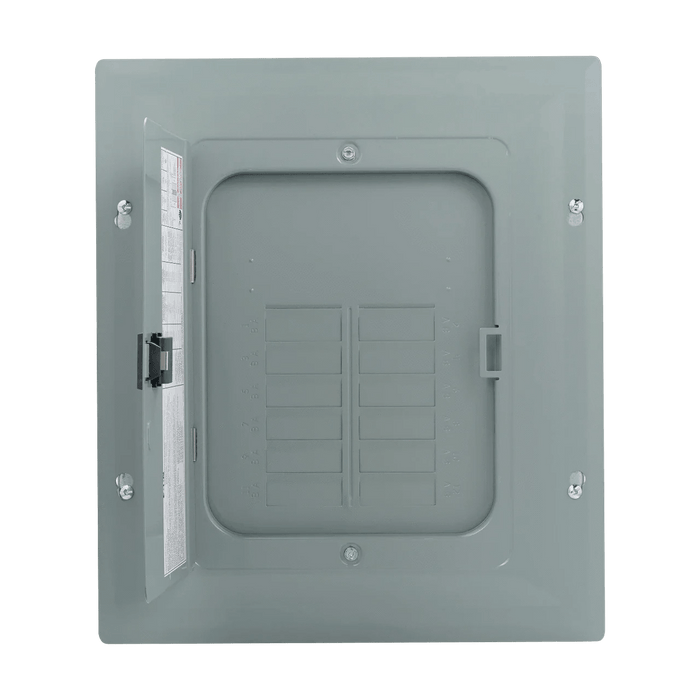

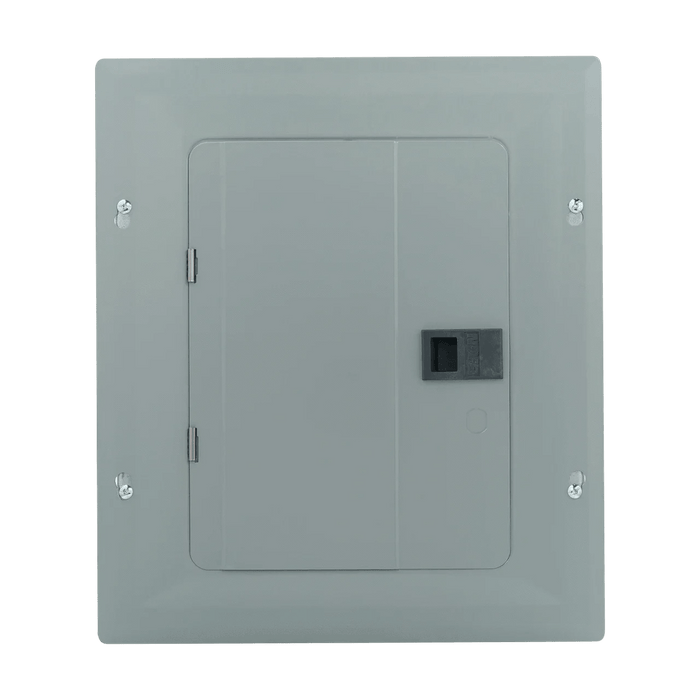

- 12-Circuit Backup LoadCenter(×1)
- 100A Circuit Breaker (×1)
- 12-Circuit Backup Load Center Ground Bar Kit (×1)
Specification
| SKU | A17B1111 |
|---|---|
| Product Weight | 19 lbs |
| Product Dimensions | 19.7 in ×13 in × 5.7 in |
| Installation | Wall |
| Warranty | 5 Years |
| Rated System Voltage | 120 / 240V AC |
| Grid Wiring Area (Input) | 18kW Max, 75A Max, 60Hz, L1+L2+N+PE |
| Grid Wiring Area (Output) |
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE |
| Overvoltage Protection of Grid Wiring Area | |
| Phase Voltage | |
| Overvoltage Point | 135 ± 3V |
| Duration | 200 ms |
| Recovery Point | 132 ± 3V |
| Recovery Time | 30 s |
| Line Voltage | |
| Overvoltage Point | 270 ± 3V |
| Duration | 200 ms |
| Recovery Point | 265 ± 3V |
| Recovery Time | 30 s |
| Undervoltage Protection of Grid Wiring Area | |
| Phase Voltage | |
| Undervoltage Point | 166 ± 3V |
| Duration | 200 ms |
| Recovery Point | 172 ± 3V |
| Recovery Time | 30 s |
| Line Voltage | |
| Undervoltage Point | 83 ± 3V |
| Duration | 200 ms |
| Recovery Point | 86 ± 3V |
| Recovery Time | 30 s |
| Backup Wiring Area (Output) |
12kW Max (Continuous), 50A Max (Continuous), 60Hz, L1+L2+N+PE |
| Power Station 1 Ports (Input) | 6kW Max, 25A Max, 60Hz, L1+L2+N+PE |
| Power Station 1 Ports (Output) |
3.8kW Max (Continuous), 15.8A Max (Continuous), 60Hz, L1+L2+N+PE |
| Power Station 2 Ports (Input) | 6kW Max, 25A Max, 60Hz, L1+L2+N+PE |
| Power Station 2 Ports (Output) |
3.8kW Max (Continuous), 15.8A Max (Continuous), 60Hz, L1+L2+N+PE |
| Power Stations 1 and 2 Ports (Total Output) |
6kW Max (Continuous), 25A Max (Continuous), 60Hz, L1+L2+N+PE |
| Power Stations 1 and 2 Ports (Total Input) |
12kW Max (Continuous), 50A Max (Continuous), 60Hz, L1+L2+N+PE |
| Output Power Factor Rating |
One Anker SOLIX F3800, (30% Load) 1.9 W Load, PF > 0.96 Two Anker SOLIX F3800s, (60% Load) 3.8kW Load, PF > 0.98 Two Anker SOLIX F3800s, (100% Load) 6kW Load, PF > 0.985 |
| Nominal Output Voltage (AC) | 120/240V |
| Normal Output Frequency | 60Hz |
| Normal Temperature Range Operation | -4°F - 104°F / -20°C - 40°C |
