Big Battery | 12V 4X HUSKY 2 KIT – Victron
Second-Generation Power Storage Has Arrived: 12V 4X HUSKY 2 KIT – Victron
The 12V 4X HUSKY 2 KIT – Victron from BigBattery delivers an ultra-reliable, high-capacity energy solution for RVs, camper vans, trailers, boats, yachts, and any off-grid or mobile power system. With a massive 20.48kWh capacity, this next-generation lithium system offers exceptional performance for serious energy demands on the road or water.
Built for Demanding Power Needs
Engineered with premium Tier 1 LiFePO4 (LFP) cells, the HUSKY 2 is BigBattery’s most energy-dense 12V system to date. It’s designed for long life, maximum efficiency, and robust operation in all environments. Whether you’re off-grid in the wilderness or navigating remote coastlines, this system delivers reliable, consistent power.
The integrated advanced Battery Management System (BMS) offers:
-
Protection from over/under voltage, overcurrent, and overheating
-
Thermal management for stable operation across wide temperature ranges
-
Self-heating functionality for cold-weather charging
-
Auto cell balancing for optimal performance
-
Full CANBus and RS485 communication support for smart monitoring and diagnostics
Rugged & Weather-Ready
Each HUSKY 2 unit is housed in a durable, IP65-rated, vibration-resistant enclosure, designed to withstand harsh environments—on the road, on the water, or at a remote worksite.
Seamless Integration with Victron Technology
This kit is configured for integration with Victron Energy systems, allowing for enhanced control, monitoring, and compatibility with Victron inverters, chargers, and communication platforms. It’s the ideal pairing for those looking for premium off-grid performance and system intelligence.
Reliable, Scalable, and Ready to Go
The 12V 4X HUSKY 2 KIT – Victron is compact, space-saving, and powerful—perfect for those who need serious off-grid capacity without sacrificing mobility or system flexibility. Whether you’re building an overland rig, upgrading your marine power system, or preparing for extended off-grid living, this battery kit is engineered to keep you powered confidently and safely.
Shop now and experience next-level mobile energy with the 12V 4X HUSKY 2 KIT – Victron.

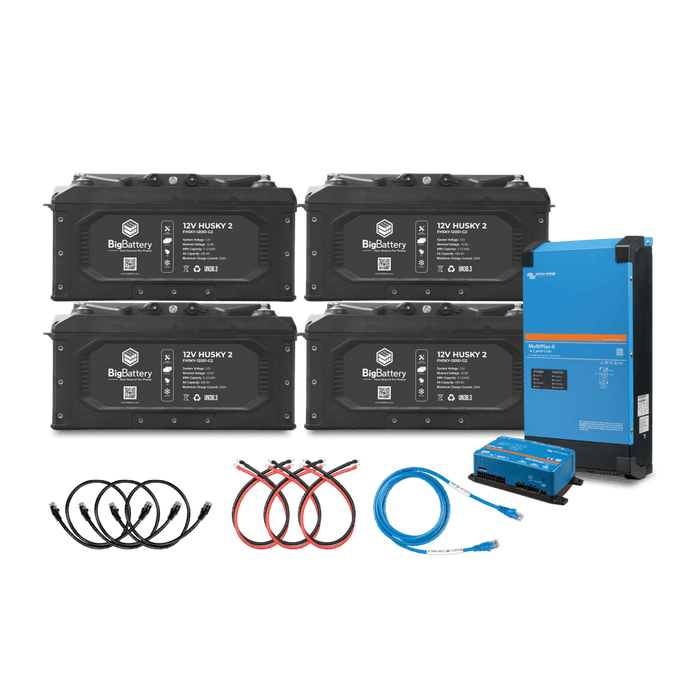

What's Included

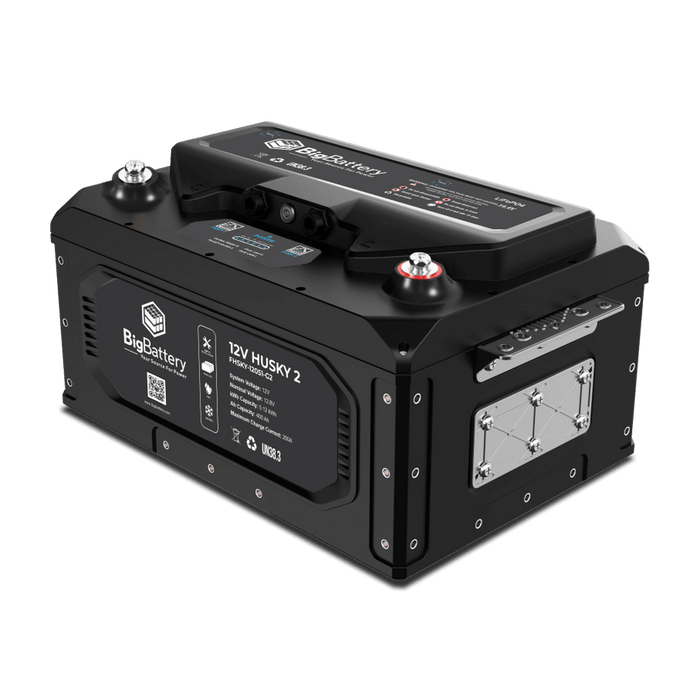

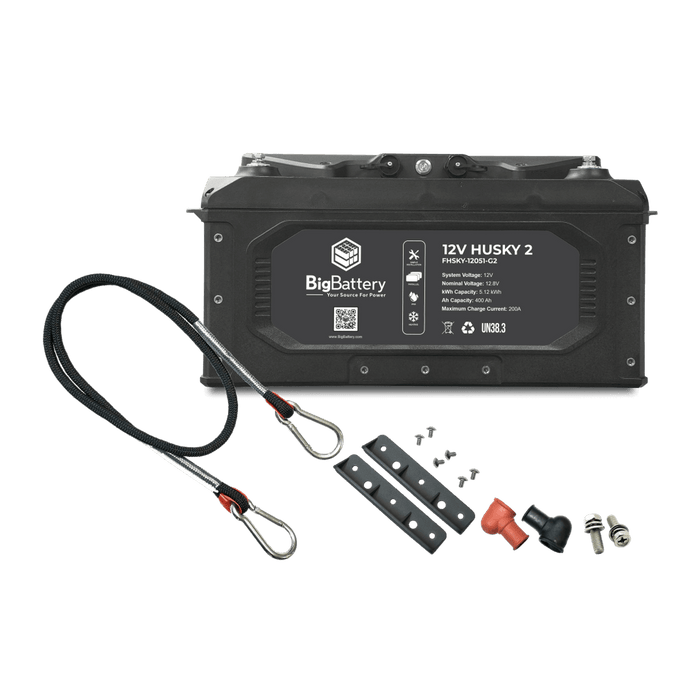

4 × 12V HUSKY 2 - LiFePO4 - 400Ah - 5.12kWh

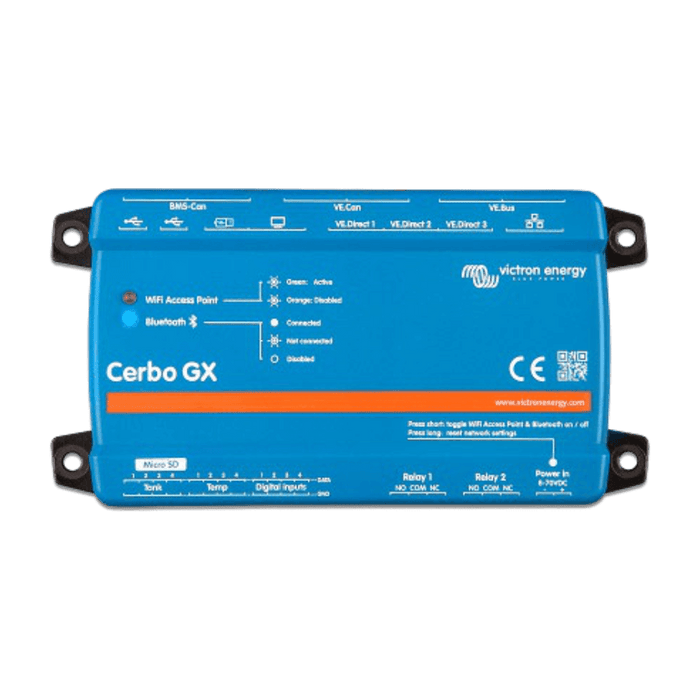

1 × Victron Cerbo GX

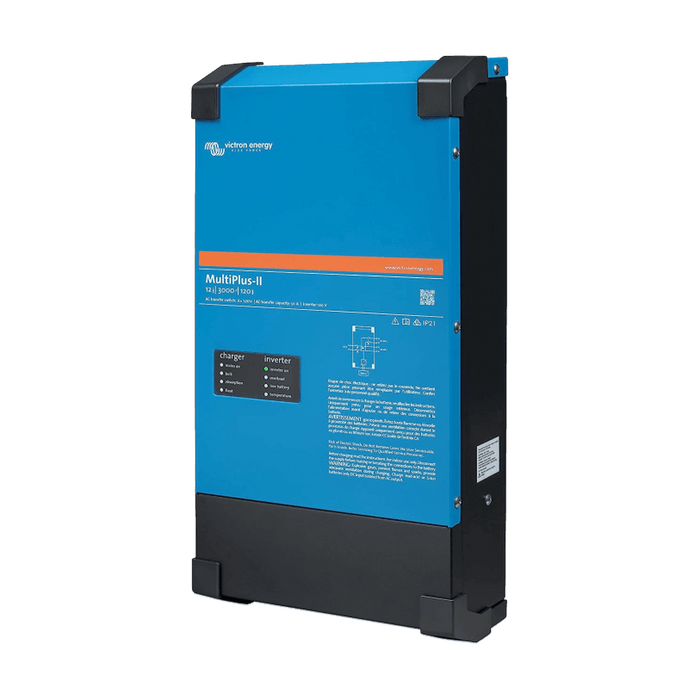

1 × 12V MultiPlus-II 120V Inverter/Charger

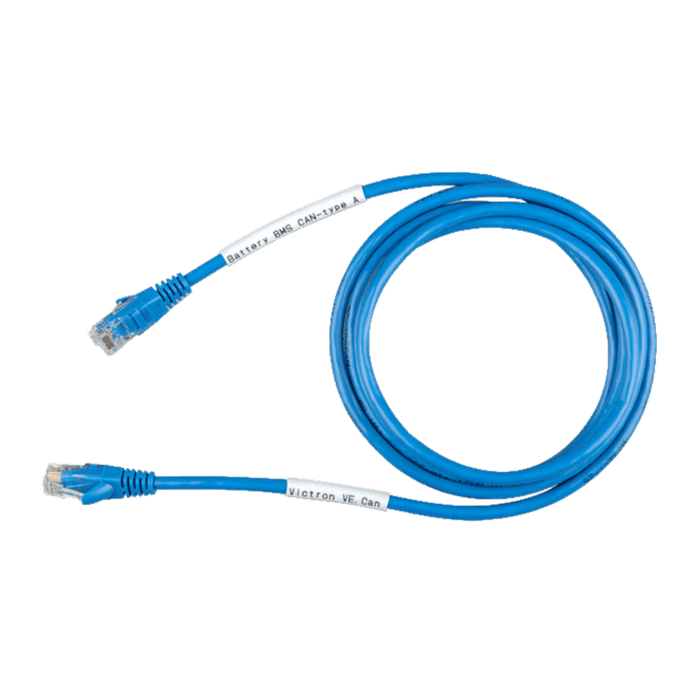

1 × Victron COMM Cable

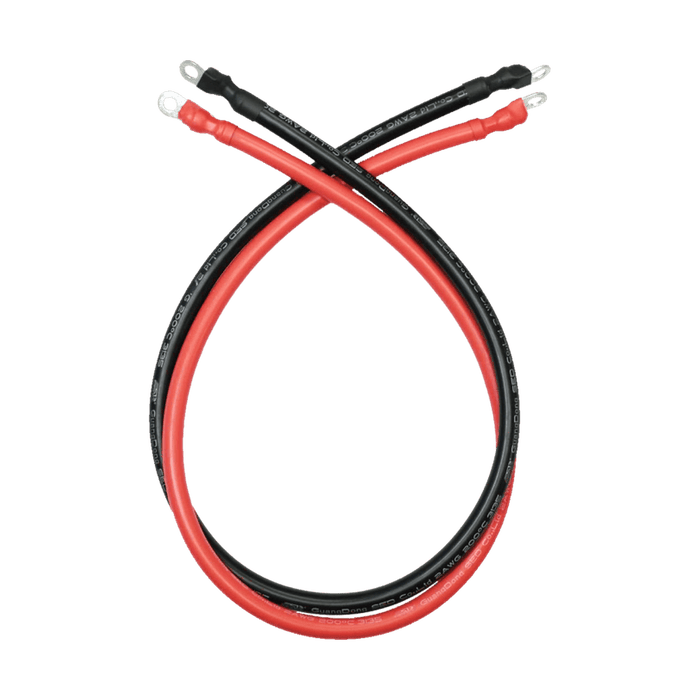

3 × 4AWG (Black and Red) 21 inches Ring to Ring Terminal Cable

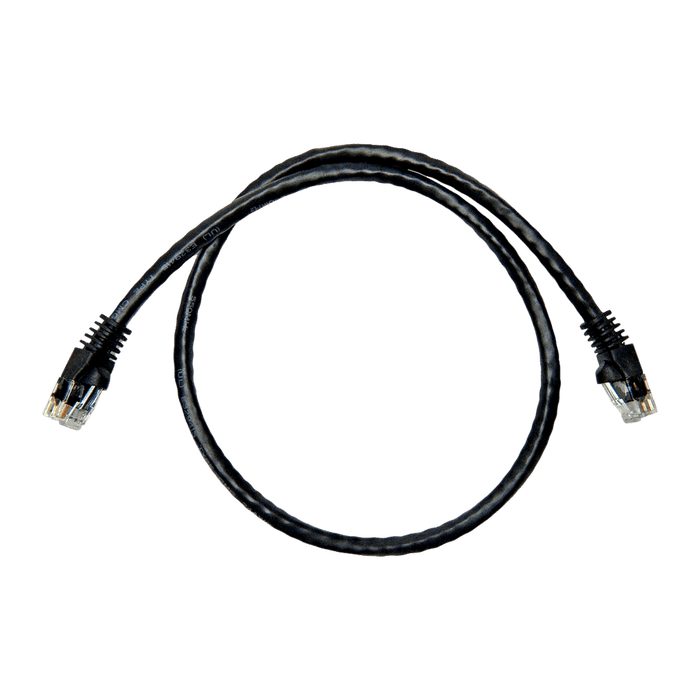

3 × Parallel Comm Cable
Specs and Downloads
Single Battery Tech Specs
| SKU: | FHSKY-12051-G2 |
| System Voltage: | 12V |
| Nominal Voltage: | 12.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 5.12kWh |
| Ah Capacity: | 400Ah |
| Charging Voltage Range: | 13.9V - 14V |
| Max Charge Voltage: | 14.4V |
| Operating Voltage Range: | 12V - 14.4V |
| Suggested Low Voltage Cutoff: | 12V - 12.7V |
| BMS Cutoff Range: | 10.5V - 11.75V |
| Cell Configuration: | 4S |
| Max Continuous Discharge Current: | 300A |
| Max Continuous Power: | 5120W |
| Max Discharge Peak Current: | 350A (Max 5 seconds) |
| Max Charge Current: | 200A |
| Charge Temperature Range: | -4°F - 113°F (-20°C - 45°C) |
| Discharge Temperature Range: | -4°F - 131°F (-20°C - 55°C) |
| Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range: | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight: | 95 lb (43.1 kg) |
| Depth: | 12.6 in (320 mm) |
| Width: | 18.1 in (460 mm) |
| Height: | 9.8 in (249 mm) |
| Max Connections: | Up to (16) Parallel |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | CANBus / RS485 |
| Self-Heating: | Yes |
Inverter Specs
| SKU: | INV016 |
| Battery Voltage: | 24VDC |
INVERTER OUTPUT
| Rated Power: | 3000 VA / 2400 W |
| Peak Power: | 5500 W |
| Parallel Capacity: | Yes |
| Nominal Output Voltage RMS: | N/A |
| Output Frequency: | 60 Hz ± 0.1% |
| AC Voltage Regulation: | 120 VAC ± 2% |
| Inverter Efficiency (Peak): | 94% |
| Waveform: | Pure Sine Wave |
| Transfer Time: | N/A |
AC INPUT
| Voltage: | 120VAC |
| Selectable Voltage Range: | 90-140 VAC |
| Frequency Range (Auto-Sensing): | 45 – 65 Hz |
| Max. Charging Current: | 70A |
DIMENSIONS
| Weight: | 42 lbs |
| Depth: | 5.8 in |
| Width: | 10.9 in |
| Height: | 21.1 in |
Spec Sheet
User Manual
Safety Data Sheet
CE Certificate
UN38.3 Certificate
Inverter Spec Sheet
