Big Battery | 3x Nexus + 3 x EG4 6000XP

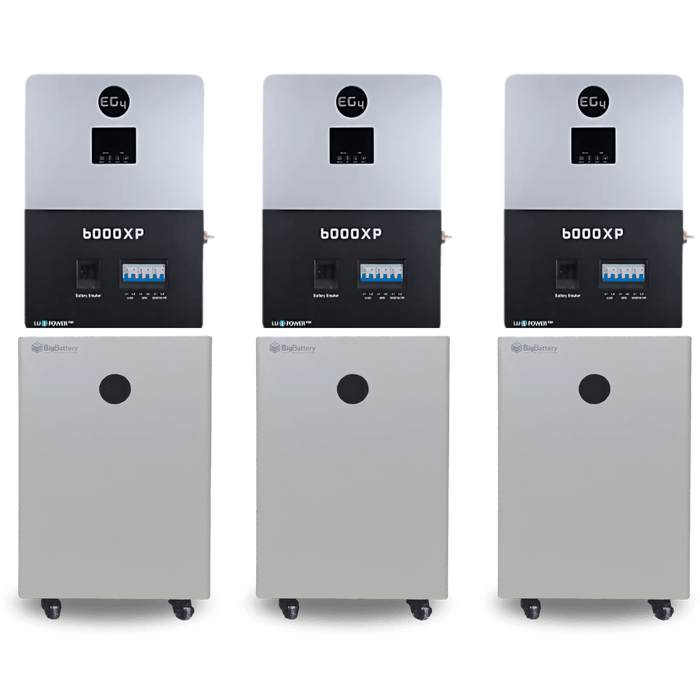

Big Battery | 3 x NEXUS + 3 x EG4 6000XP Power System
The BigBattery 3x NEXUS + 3x EG4 6000XP Power System delivers high-performance, scalable off-grid and whole-home energy storage with unmatched reliability. Combining three 48V 14.3kWh NEXUS LiFePO4 batteries with three EG4 6000XP hybrid inverters, this system provides an impressive 43kWh of energy storage and 18,000W of continuous AC output at 120/240V split phase. Perfect for large homes, businesses, or off-grid applications, it offers exceptional power efficiency, expandability, and intelligent energy management.
KEY FEATURES
- 43kWh total energy storage (3 × 14.3kWh NEXUS batteries)
- 18,000W continuous AC output (3 × 6,000W EG4 6000XP inverters)
- 120/240V split-phase output suitable for residential or commercial loads
- 24,000W total solar PV input capacity (8,000W per inverter)
- 99% MPPT efficiency for maximum solar harvesting
- 7,000+ cycle lifespan with premium CATL LiFePO4 cells
- Parallel support for up to 16 inverters — scalable and future-ready
- Comprehensive BMS and inverter protection system
- Ideal for off-grid, grid-tied, or backup power setups
Specifications
AC INPUT
| AC Voltage: | 120V AC / 240V AC |
| AC Frequency: | 50 Hz / 60 Hz |
| Max. Continuous AC Current: | 37.5A @ 240V |
| Max. AC Input Power: | 9000W |
| AC Bypass: | 50A |
AC OUTPUT
| Output Voltage: | 120V AC / 240V AC |
| Output Frequency: | 50 Hz / 60 Hz |
| Max. Continuous Output Current: | 25A @ 240V |
| Output Power: | 6000W |
| Surge Capacity: | 12000W (3.5 sec) / 11000W (5 sec) |
| Power Factor: | 0.99 (Full Load) |
| Reactive Power Adjustment Range: | -0.8 – 0.8 Leading Adjustable |
| Total Harmonic Distortion: | <3% |
| Switching Time: | <15 ms (Single) / <30 ms (Parallel) |
PV INPUT
| No. of MPPTs (Inputs per MPPT): | 2 (1) |
| Max. Input Current: | 17A / 17A |
| Max. Short Circuit Input Current: | 25A / 25A |
| DC Input Voltage Range: | 100 – 480V DC |
| Start Up Voltage: | 100V DC ± 10V DC |
| MPPT Operating Voltage Range: | 120 – 385V DC |
| MPPT Voltage: | 320V DC |
| Max. PV Array Power: | 8000W (4000W per MPPT) |
| MPPT Efficiency: | 99% |
BATTERY
| Nominal Voltage: | 48V DC |
| Battery Voltage Range: | 46.4 – 60V DC |
| Max. Discharge Current: | 140A |
| Max. Charge Current: | 125A |
| DC Cut-Off Voltage: | 59V DC |
| DC Recovery Voltage: | 57.4V DC |
| Charge Cut-Off Voltage: | 58.4V DC |
OPERATING ENVIRONMENT
| Operating Temperature: | 32ºF – 113ºF (0ºC – 45ºC) |
| Storage Temperature: | 5ºF – 140ºF (-15ºC – 60ºC) |
| Altitude: | <6,561 ft (2000 m) |
| Relative Humidity: | 5 – 95% |
| Typical Noise Emission: | <58 dB |
| Protection Rating: | IP20 |
| Max. Parallel Connections: | 16 |
DIMENSIONS
| Weight: | 52.9 lbs (24 kg) |
| Depth: | 5.25 in (132 mm) |
| Width: | 18 in (457 mm) |
| Height: | 25.5 in (648 mm) |
