Big Battery | NEXUS + APEX-6.5K Off-Grid System

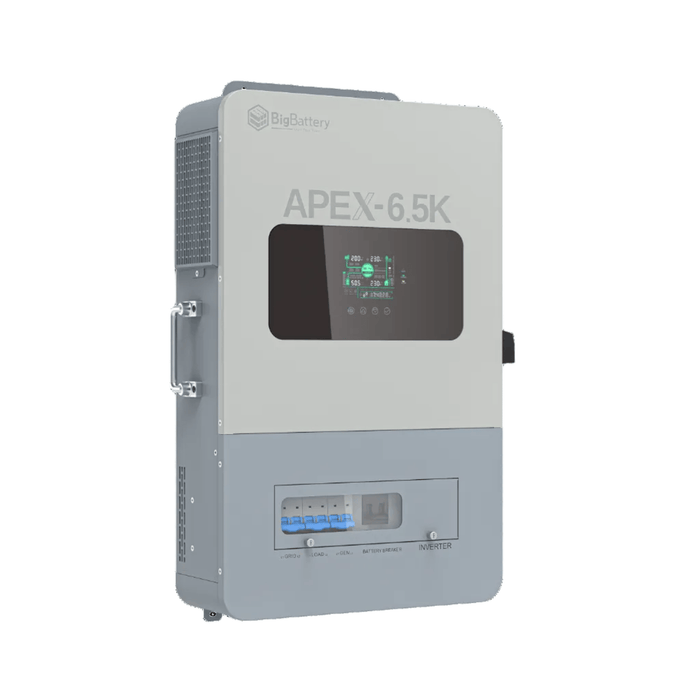

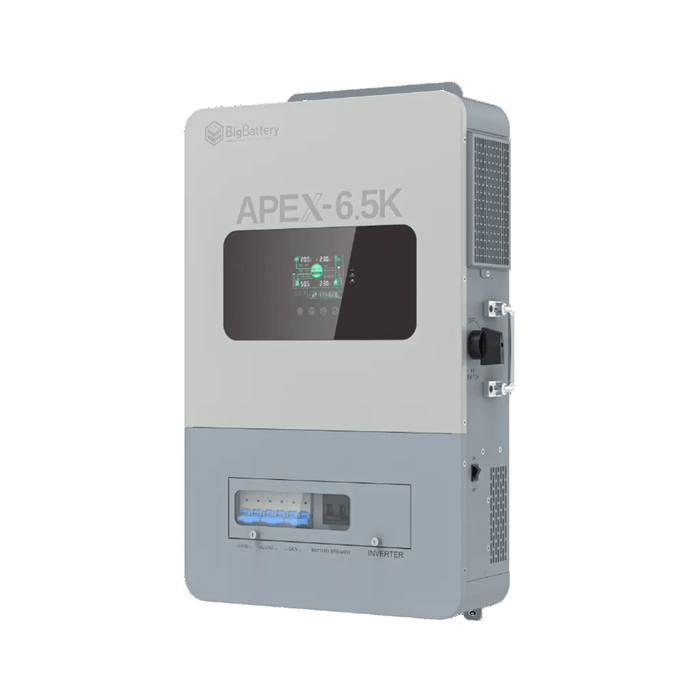

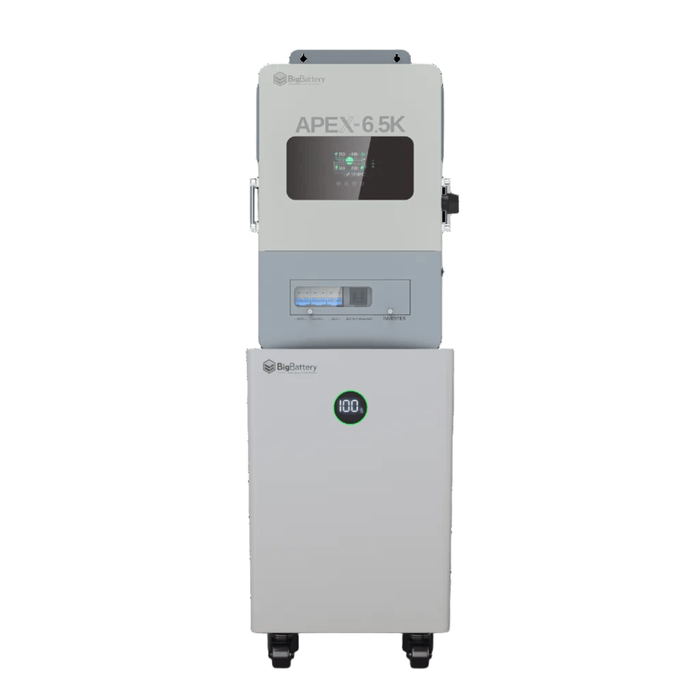

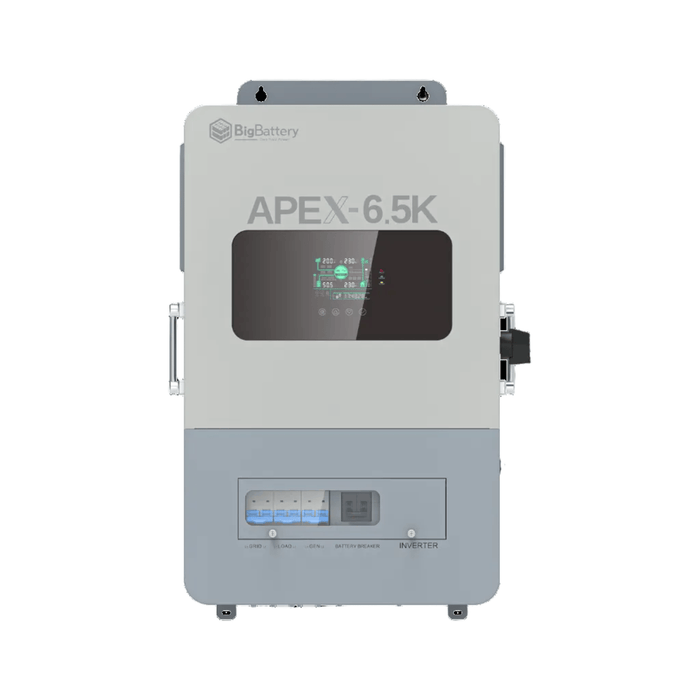

Big Battery | NEXUS and APEX-10K Off-Grid Solar Power System Nexus + APEX-6.5K Off-Grid Power System with 15 kWh Battery
This all-in-one energy system pairs a robust APEX-6.5K hybrid inverter with the Nexus 15 kWh LiFePO₄ battery bank to deliver reliable split-phase 120/240 V power for cabins, remote homes, and off-grid properties. Designed to accept both solar and generator inputs, the system provides clean pure sine-wave output and high-capacity performance for essential loads, appliances, and everyday energy demands. Rugged construction, installer-friendly wiring, and scalable configuration options make it a dependable solution for energy independence and resilient power infrastructure.
KEY FEATURES
- integrated APEX-6.5K inverter with 6.5 kW continuous output
- 120/240 V split-phase power for full residential loads
- Nexus 15 kWh LiFePO₄ battery bank with high usable capacity
- accepts both solar and generator charging inputs
- pure sine-wave output for sensitive electronics
- scalable configurations with multiple batteries or inverters
Specifications
| Section | Details |
|---|---|
| Document Title | APEX-6.5K & APEX 10K INVERTER SPECIFICATIONS |
| Brand | BigBattery |
| Model | APEX-6.5K / APEX-10K |
| Rated Output Power | APEX-6.5K: 6,500W / APEX-10K: 10,000W |
| Max. Output Power | APEX-6.5K: 13,000VA / APEX-10K: 20,000VA |
| Rated Output Voltage | 120/240 Vac (single-phase / split-phase) |
| Load Capacity of Motors | APEX-6.5K: 4 HP / APEX-10K: 6 HP |
| Rated Frequency | 50/60Hz |
| Output Wave | Pure sine wave |
| Switching Time | 10ms (typical value) |
| Battery Type | Lithium-ion battery / lead-acid battery / user-defined battery |
| Rated Battery Voltage | 48V |
| Battery Voltage Range | 40–60Vdc |
| Max. Solar Charging Current | APEX-6.5K: 140A / APEX-10K: 200A |
| Max. Grid / Generator Charging Current | APEX-6.5K: 80A / APEX-10K: 120A |
| Max. Hybrid Charge Current | APEX-6.5K: 140A / APEX-10K: 200A |
| Number of MPPTs | 1 + 1 |
| Max. Solar Input Power | APEX-6.5K: 5,000W + 5,000W / APEX-10K: 5,000W + 5,500W |
| Max. Solar Input Current | APEX-6.5K: 18A + 18A / APEX-10K: 22A + 22A |
| Max. Open Circuit Voltage | 550Vdc + 550Vdc |
| MPPT Voltage Range | 125–450Vdc |
| Grid / Generator Input Voltage Range | 65–140Vac |
| Grid / Generator Input Frequency Range | 50/60Hz |
| Bypass Overload Current | APEX-6.5K: 40A / APEX-10K: 63A |
| AC Inputs | APEX-6.5K: 2 inputs (Grid & Generator) / APEX-10K: 1 input (Grid or Generator) |
| Max. Efficiency | 99.9% |
| MPPT Tracking Efficiency | APEX-6.5K: 93% / APEX-10K: 92% |
| Parallel Capacity | Up to 6 units (more than 3 units in parallel can form a three-phase output) |
| Dimensions (W × H × D) | APEX-6.5K: 25.51 × 16.14 × 5.51 in / APEX-10K: 28.46 × 17.64 × 5.91 in |
| Weight | APEX-6.5K: 48 lbs / APEX-10K: 62 lbs |
| Protection Degree | IP20 (indoor only) |
| Operating Temperature | 14–131°F, derate above 113°F |
| External Module (Optional) | Wi-Fi / GPRS |
| Certifications | UL1741 / RoHS / EN61000-6-1 / EN61000-6-3 / FCC Part15 Class B / IEC62109-1 / IEC62109-2 |
| Noise Level | <60dB |
| Cooling Method | Intelligent fan |
| Warranty | 5 years |

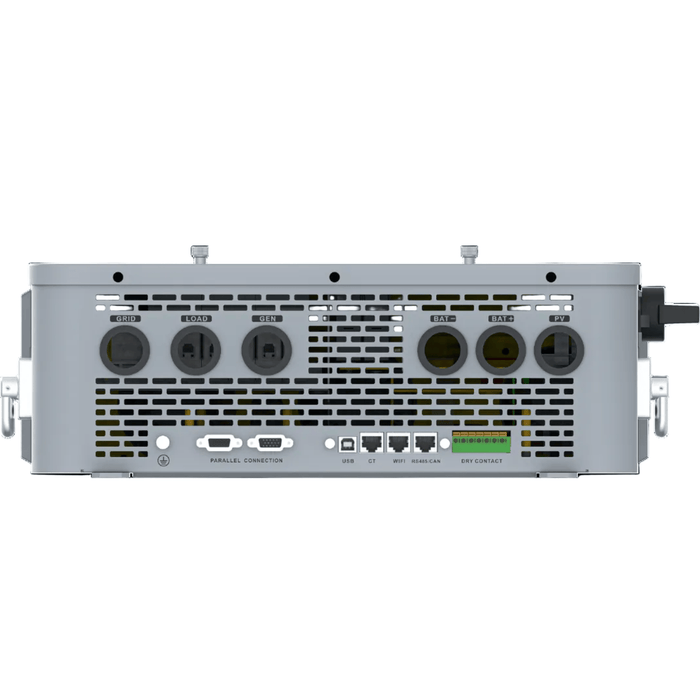

| Communication Interfaces | RS485 / CAN / USB / Dry contact |
| Integrated Circuit Breaker | Utility / Load / Battery / PV |
| Overload Protection Behavior | Output restores after 3 minutes. After 5 overloads, output shuts down until restart. (102%–110% load): shutdown after 5 min. (110%–125% load): shutdown after 10 sec. (>125% load): shutdown after 5 sec. |
| Protection Features | PV input current limiting, PV over-voltage, PV night reverse current, AC input over/under-voltage, battery over/under-voltage, battery over-current, AC output short-circuit, heat sink over-temperature, inverter overload protection |
