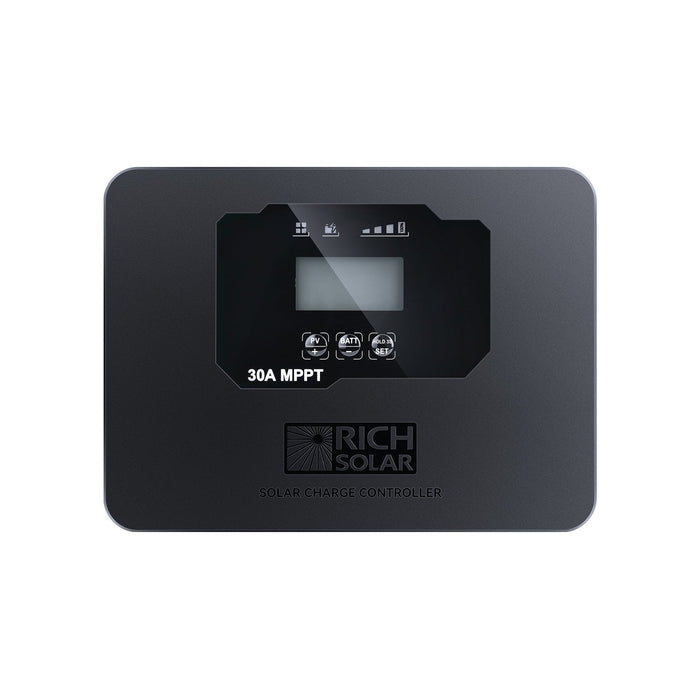

BRAVO FLUSH 30 | 30 Amp Flush Mount MPPT Solar Charge Controller | Premium 30A 12V/24V MPPT Flush Mount Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | #1 Flush Mount MPPT Solar Controller
FEATURES
- PV open circuit voltage up to 100V.
- The latest Maximum Power Point Tracking (MPPT) algorithm.
- Unique multiple peaks detected technology for Maximum Power Point Tracking.
- MPPT tracking efficiency above 99.5%.
- Wider MPP operating voltage range.
- Common negative grounding connection.
- Suit for most rechargeable batteries, up to 9 battery types preset plus custom setting.
- Extensive internal electronics in-circuit protection.
- Reliable operating safety protection: overcharging or undercharging protection, short circuit protection, reverse polarity protection, and thermal protection.
- Automatically detect 12V or 24V DC system voltages.
- Unique and concise LED bar to indicate the solar status and battery charging condition.
- Large and informative display interface to show solar parameters, battery charging parameters, battery type, battery temperature, custom presetting and faulty codes, etc.
- Provides plug-in remote digital display meter (Optional).
- Provides external battery temperature sensor (Optional).
- Splash-proof IP43.
- Rubber mask for connecting terminal’s protection.
- Conformal coating for internal boards.
- Designed according to UL1741, EN/IEC 62109-1; EMI standard: EN61000-6-1/EN61000-6-3 and FCC standard: 47 CFR Part 15, Subpart B.
SPECIFICATIONS
ATTRIBUTE | VALUE |
Max. PV Open Circuit Voltage: | 100 VDC |
Max. Normal Input PV Voltage: | 92 VDC |
Max. PV Input Current: | 30 AMP |
Max. PV Short Circuit Current: | 35 AMP |
Max. Conversion Efficiency: | 98% |
Min. Tracking Efficiency: |
99.5% |
Nominal PV Power: | 500W@12V/1000W@24V |
Min. Battery Start Charging Voltage: | 5 VDC |
Soft Start Charging Voltage: | 5~10±2 |
Soft Start Charging Current: |
15 AMP |
Max. Bulk Charge: | 30 AMP |
Controller Material: | Plastic, PC |
Mounting: | Surface Mounting |
IP Grade: |
IP43 |
Net Weight: |
1.87 lb |
Operating Temperature: |
-13 ~ 122 ℉ |
Storage Temperature: |
-40 ~ 185 ℉ |
Operating Humidity Range: |
0-85% RH |
Specification & User Manual
30 Amp MPPT Flush Mount Solar Charge Controller
