Rich Solar | BRAVO FLUSH 40 | 40 Amp Flush Mount MPPT Solar Charge Controller | Premium 40A 12V/24V
BRAVO FLUSH 40 | 40 Amp Flush Mount MPPT Solar Charge Controller | Premium 40A 12V/24V

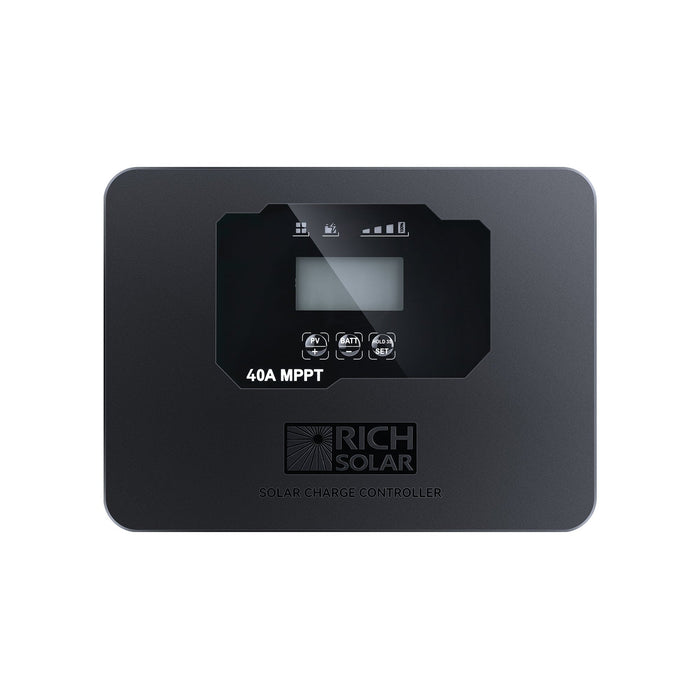

The BRAVO FLUSH 40 is a powerful and reliable 40 Amp MPPT solar charge controller built for flush mount applications in off-grid solar systems. Designed for 12V or 24V systems, this premium controller features advanced MPPT technology to maximize charging efficiency and extend battery life across a wide range of battery types.
FEATURES:
-
PV open circuit voltage up to 100V
-
Latest Maximum Power Point Tracking (MPPT) algorithm
-
Unique multi-peak detection technology for enhanced solar harvesting
-
MPPT tracking efficiency exceeds 99.5%
-
Wide MPP voltage operating range for diverse solar arrays
-
Common negative grounding for simplified installation
-
Supports up to 9 battery types (including custom settings)
-
Electronic protection: reverse polarity, overcharging, undercharging, short circuit, and thermal
-
Auto-detects 12V or 24V system voltages
-
LED bar indicator for real-time solar and battery charging status
-
Informative display interface shows:
-
Solar parameters
-
Battery charging data
-
Battery type and temperature
-
Custom settings
-
Fault codes
-
-
Optional remote digital display meter and external battery temperature sensor
-
Splash-proof (IP43) with rubber mask terminal protection
-
Conformal coating on internal boards for added durability
-
Built to meet UL1741, EN/IEC 62109-1, EN61000-6-1/6-3, and FCC Part 15 Subpart B standards
Specification
| ATTRIBUTE | VALUE |
| Max. PV Open Circuit Voltage: | 100 VDC |
| Max. Normal Input PV Voltage: | 92 VDC |
| Max. PV Input Current: | 40 AMP |
| Max. PV Short Circuit Current: | 45 AMP |
| Max. Conversion Efficiency: | 98% |
| Min. Tracking Efficiency: |
99.5% |
| Nominal PV Power: | 600W@12V/1200W@24V |
| Min. Battery Start Charging Voltage: | 5 VDC |
| Soft Start Charging Voltage: | 5~10±2 |
| Soft Start Charging Current: |
20 AMP |
| Max. Bulk Charge: | 40 AMP |
| Controller Material: | Plastic, PC |
| Mounting: | Surface Mounting |
| IP Grade: |
IP43 |
| Net Weight: |
1.87 lb |
| Operating Temperature: |
-13 ~ 122 ℉ |
| Storage Temperature: |
-40 ~ 185 ℉ |
| Operating Humidity Range: |
0-85% RH |
