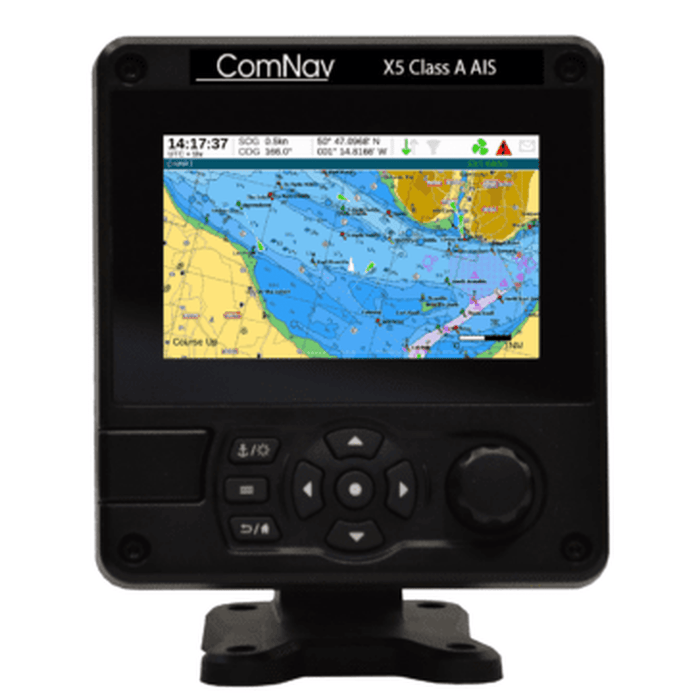

ComNav | X5 Class A AIS Transceiver | IMO/USCG/WheekMark/Inland Waterways Approved
ComNav | X5 Class A AIS Transceiver | IMO/USCG/WheelMark/Inland Waterways Approved
Description:
The ComNav X5 Class A AIS Transceiver is a professional-grade Automatic Identification System designed for commercial vessels operating under IMO, USCG, and WheelMark regulations. Engineered for reliability and precision, the X5 ensures superior navigational safety, vessel tracking, and compliance in both deep-sea and inland waterway operations. Its compact design, intuitive interface, and advanced connectivity make it ideal for a wide range of maritime applications.
KEY FEATURES
- Sophisticated yet simple to use
- SOLAS, MED, CE, FCC, Inland Waterway and Industry Canada certified
- Meets IMO Resolutions: A.694 (17), MSC.191 (79), MSC.74(69) , ITU-R M.1371-5(2014)
- Supports GPS, GLONASS, GALILEO & BEIDOU

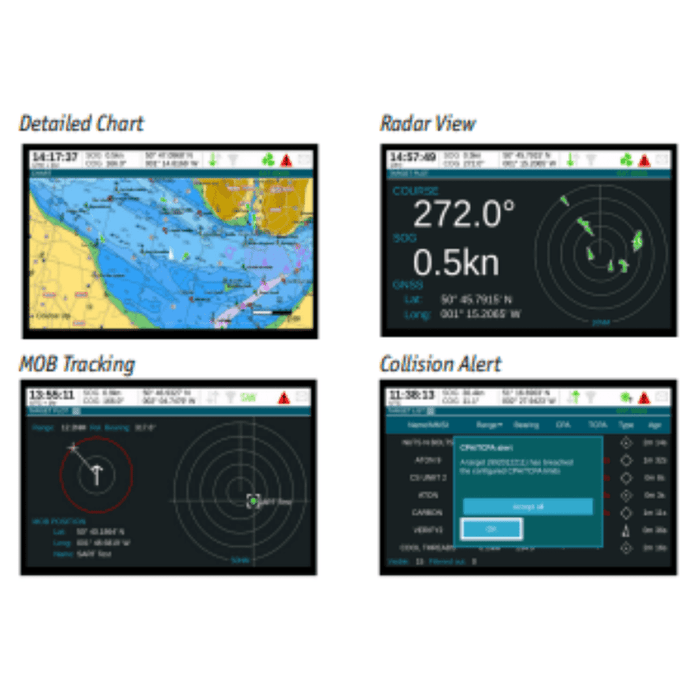

- MOB & SART alert tracking
- Collision Alert
- AIS data-target overlay on standard radars and multifunction chart displays
- Effective port traffic management using Class A and Class B data
- Compact design
- Intuitive and simple operation
- High-contrast, backlit color display
- Monitors vessels of Class A and Class B
- Helps reduce search & rescue time
- Available in various languages (optional)
- Optional encryption for additional security
- IPx6 and IPx7 rated
- CE and FCC for EMC compliance
- Shock and vibration resistant
- Worldwide service
Specifications
| Category | Details |
|---|---|
| Electrical Specifications | |
| Power Supply | 12 to 24V DC |
| Power Consumption | < 12W |
| Connectors | |
| VHF Antenna Connector | SO-239 / UHF |
| GNSS Antenna Connector | TNC |
| Power | 2-pin connector (cable provided) |
| Serial Interface & Alarm Relay | 18-pin connector (cable provided) |
| Serial Inputs | 14-pin connector (cable provided) |
| NMEA 2000® | Micro Connector |
| VHF Transceiver | |
| Transmitter | 1 |
| Receiver | 3 |
| Frequency Range | 156.025 MHz to 162.025 MHz |
| Output Power | 1W or 12.5W (automatic) |
| Channel Bandwidth | 2.5 Hz |
| Channel Step | 2.5 Hz |
| Modulation Modes | GMSK-TDMA |
| Bit Rate | 9600 bits/sec |
| Receiver Sensitivity | -107 dBm @ 20% PER |
| Data Interfaces | |
| NMEA 0183 (IEC61162-2) Bi-directional Ports | 3 |
| NMEA 0183 (IEC61162-1) Sensor Inputs | 3 |
| DGPS Correction Data Input (ITU-R M.823-2) | 1 |
| Alarm Relay Output | 1 |
| NMEA 2000® | 1 |
| Wi-Fi | 802.11 b/g/n |
| Pilot Port | 1 (optional) |
| Standard Compliance | |
| AIS Standard | IEC61993-2 Ed 2.0, ITU-R M.1371-5, CCNR VTT Ed 2.0 |
| Serial Data Interfaces | IEC61162-1 Ed 4.0, IEC61162-2 Ed 1.0, IEC61162-3 2008 Ed 1.2 |
| Environmental Standard | IEC60945 Ed 4.0 |
| GNSS Performance Standard | IEC61108-1 Ed 2.0 |
| Product Safety | IEC60945 Ed 4.0 |
| GNSS Receiver & Antenna | |
| Channels | 72 |
| GNSS Systems | Supports parallel dual-mode operations (GPS and GLONASS) |
| IEC61108-1 | Compliant |
| IEC61108-2 | Compliant |
| GNSS Antenna | Supplied |
| User Interface | |
| Display | 5” 800×480 full-color LCD display |
| Controls | Rotary encoder for selection and entry, four menu keys, four direction keys |
| Memory | Micro SD card for software updates and charts |
| Physical Specification | |
| Dimensions | 152mm x 165mm x 111mm |
| Weight | 1.5 kg |
| Environmental | |
| Waterproof Rating | IPx6 & IPx7 rated for water ingress |
| IEC 60945 Category | Protected |
| Operating Temperature | -15°C to +55°C |
| Maximum Operating Humidity | 90% at +40°C, non-condensing |
