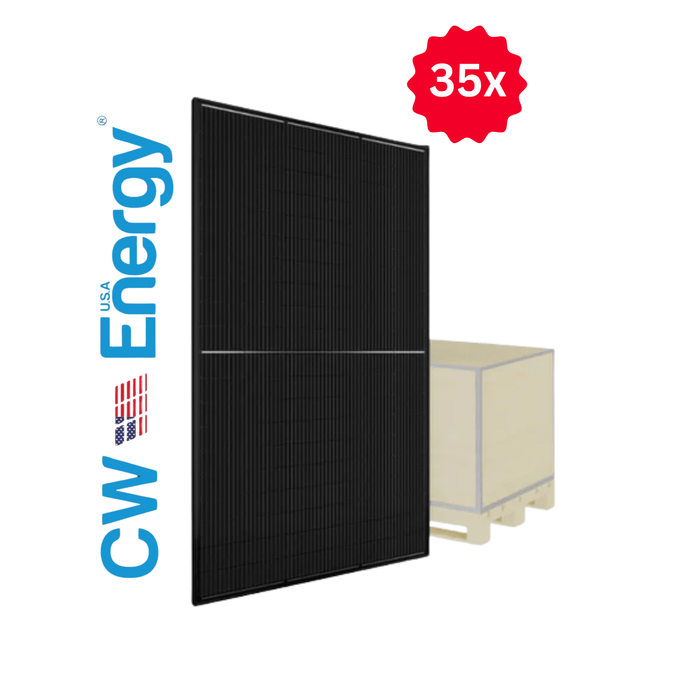

CW Energy | 410Wp 108PM M10 Black Series Solar Panel | Assembled in USA (Pallet of 35 Qty.)

SKU CWT410-108PMB10
Original price $134.26 - Original price $134.26
Original price
$134.26
$134.26 - $134.26
Current price $134.26

Overview

410-108PMB10 is part of the CWT Series — one of the most recent made by CW Energy. These panels employ cutting-edge technologies to achieve superior efficiency and reliability. The Passivated Emitter Rear Contact (PERC) technology ensures excellent power output. This solar cell type employs an additional reflective layer to absorb more sunlight.

The use of half-cut cell technology is an additional perk. The solar cells of 410-108PMB10 are half the size of those found in standard panels. Major advantages include reduced power consumption, extended life and enhanced efficiency in low-light conditions. Given its size and weight, 410-108PMB10 efficiency of 21% is quite impressive. And while conventional panels use only one side to absorb photons, bifacial modules employ both sides at the same time. Thanks to the technology, this model can be up to 30% more efficient. CW Energy provides 12 years of product warranty and guarantees that after 30 years, performance will be at 80.1% or more.

KEY FEATURES

High Conversion Efficieny
High panel efficiency to guarantee high power output.

Self-Cleaning and Anti-Reflection Glass
Coating glass for self-cleaning reduces surface dust.

Outstanding Low Irradiation Glass
Outstanding panel performance even in weak light conditions.

Easy Installation

12 Years Product Warranty

30 Years Performance Warranty

Specification

TECHNICAL SPECIFICATIONS

Model Type
CWT410 108PM10
Maximum Power (Pmax)
410 WP
Module Efficiency
21
Maximum Power Voltage (Vmp)
31,5
Maximum Power Current (Imp)
13,02
Open Circuit Voltage (Voc)
37,6
Short Circuit Current (Isc)
13,85
Power Tolerance
0 ~+5W
Maximum System Voltage
1500V DC
Operating Temperature Range
-40 ~ +85 ° C
Security Class
C
Max. Series Fuse Rating
25a
Weight
22
Cell Size (mm)
182x91
Number of Cells (pcs)
108 (6x18)
Panel Dimensions (mm)
1722x1134x35
Max. Wind / Snow Load (Pa)
2400/5400
Junction Box Protection Class
IP68
Temperature Coefficient (Isc)
0.050%/° C
Temperature Coefficient (Voc)
-0.270%/° C
Temperature Coefficient (Pmax)
-0.350%/° C
Junction Box Cable Length
350-1600
