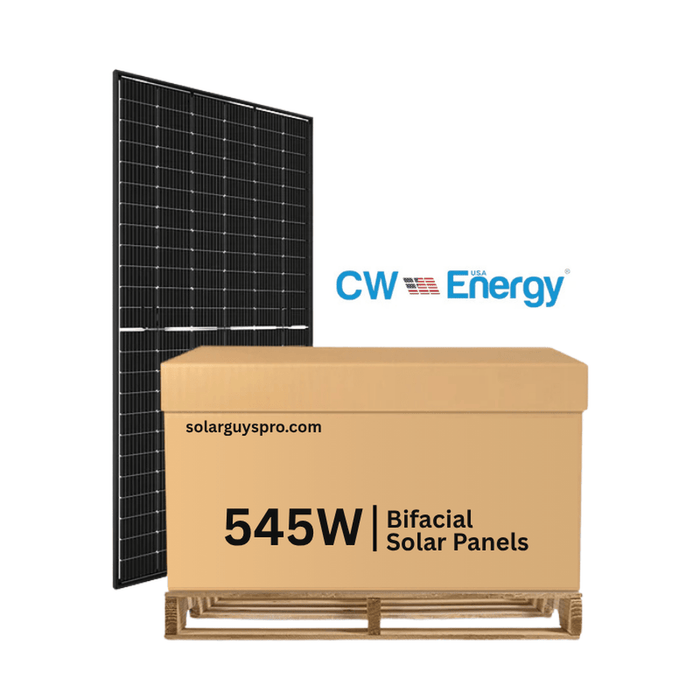

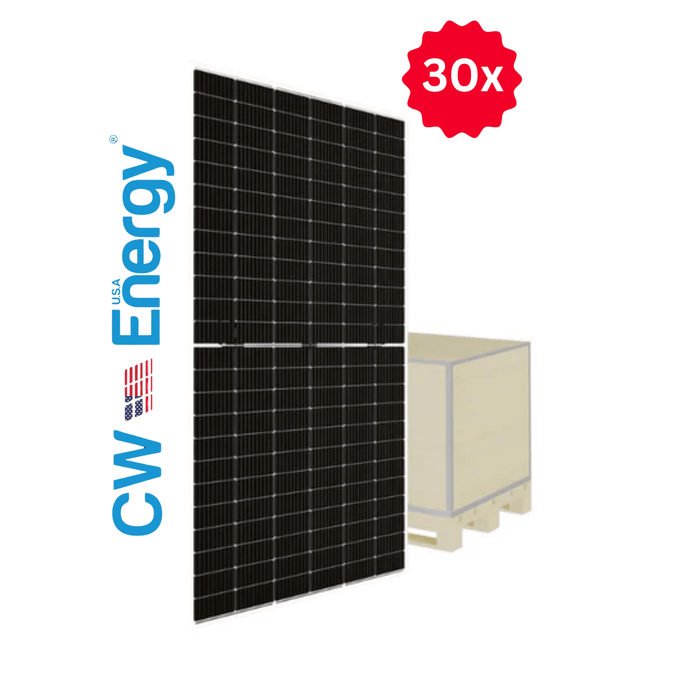

CW Energy 545W Bifacial Solar Panels | Up to 710W Bifacial Gain | CWT545-144PMB10 (Pallet of 30 Qty.)

SKU CWT545-144PMB10
Original price $184.30 - Original price $184.30
Original price
$184.30
$184.30 - $184.30
Current price $184.30
SUMMER SALE – LOWEST PRICES GUARANTEED
Summer is here, and so are unbeatable deals. Don’t wait—shop now and secure the lowest prices before the sale ends!

545W Bifacial Solar Panels | Up to 710W Bifacial Gain | CWT545-144PMB10 (Pallet of 30 Qty.)

Unlock superior performance with the 545W Bifacial Solar Panels | Up to 710W Bifacial Gain | CWT545-144PMB10 (Pallet of 30 Qty.), a premium solution designed to meet the demands of utility-scale, commercial, and high-output residential solar installations. Built with advanced half-cut multi-busbar (MBB) technology, this bifacial solar panel maximizes energy yield, even in challenging environments.

Thanks to its double-glass design and enhanced light absorption on both sides, this panel delivers up to 710W of bifacial output, offering incredible value for high-efficiency energy generation. Engineered to withstand harsh climates, it delivers reliable power in both strong winds and heavy snow.

Key Features

  • Exceptional Efficiency
    545W monofacial output with up to 710W bifacial gain, powered by half-cut MBB cell technology for minimized power loss and higher yield.

  • Bifacial Double Glass Design
    Laminated on both sides with EVA and glass, this rugged construction extends lifespan and improves rear-side power gain.

  • Positive Power Tolerance
    Guaranteed 0~+5W output, ensuring you receive at least the rated wattage or higher for every panel.

  • Durability in Extreme Conditions
    Built to withstand up to 2400 Pa wind loads and 5400 Pa snow loads, making it ideal for all climates.

  • Enhanced Low-Light Performance
    Anti-reflective, self-cleaning glass and outstanding low irradiation response deliver steady power even on cloudy days.

  • Easy to Install
    Designed for streamlined mounting and compatibility with standard racking systems.

  • Peace of Mind Warranty
    Backed by a 12-year product warranty and an industry-leading 30-year performance warranty (≥80% efficiency retention).

Specification

Maximum Power (Pmax)
545 WP
Module Efficiency
21,03
Maximum Power Voltage (Vmp)
42.2
Maximum Power Current (Imp)
12,92
Open Circuit Voltage (Voc)
50
Short Circuit Current (Isc)
13,76
Power Tolerance
0 ~+5W
Maximum System Voltage
1500V DC
Operating Temperature Range
-40 ~ +85 ° C
Security Class
C
Max. Series Fuse Rating
30A
Weight
33
Cell Size (mm)
182x91
Number of Cells (pcs)
144 (24x6)
Panel Dimensions (mm)
2285x1134x30
Max. Wind / Snow Load (Pa)
2400/5400
Junction Box Protection Class
IP68
Temperature Coefficient (Isc)
0.050%/° C
Temperature Coefficient (Voc)
-0.270%/° C
Temperature Coefficient (Pmax)
-0.350%/° C
Junction Box Cable Length
300-1200
