Dakota Lithium | Parallel Wiring Kit with Safety Fuse Protection
SKU DLParallelwiringkit
Original price
$399.00
-
Original price
$399.00
Original price
$399.00
$399.00
-
$399.00
Current price
$399.00
Overview
IDEAL FOR GOLF CARTS & ELECTRIC VEHICLES
Connect up to four Dakota Lithium batteries in parallel to create higher capacity power systems with additional safety fuse protection
Connect up to four Dakota Lithium batteries (12-48V) in parallel to create higher capacity battery systems and battery banks. For example, connect 4 of the DL 12V 100Ah batteries in parallel to create a 12V 400Ah battery system. This kit includes high-amp rated wiring optimal for solar energy systems and battery banks, house battery systems for RVs and boats, and off-the-grid applications.
Specifications
Battery connections
Ring terminals connect to all 12-48V Dakota Lithium batteries 23Ah of capacity and larger
Wire Guage
6 gauge wire
Wire Length
18" per segment
Compatibility
Connects up to four batteries (12-48V) in parallel. Compatible with any Dakota Lithium battery 23Ah of capacity or larger
Made in Minnesota
By Connect-Ease
Fuse Protection Included

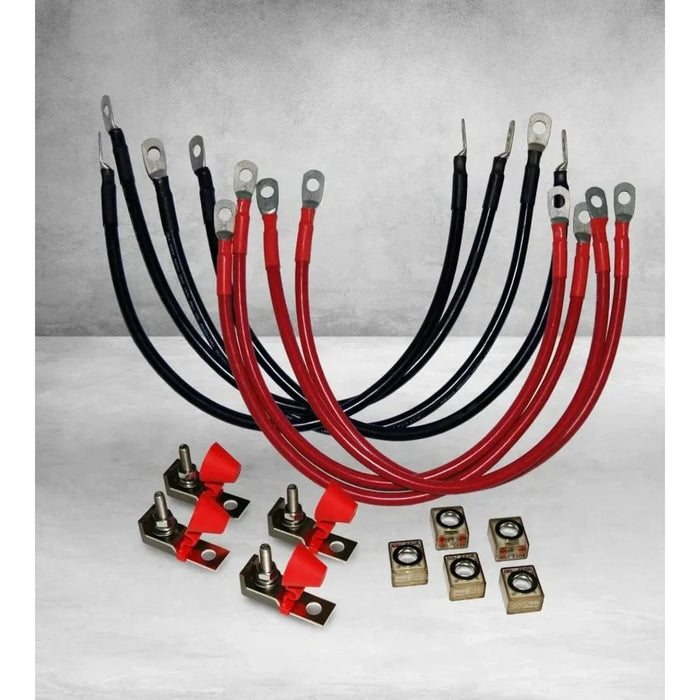

Each Dakota pack comes with individual internal Battery Management System (BMS) circuit board protection. In addition to that safety layer, when wiring packs to work in unison in a parallel array, we recommend adding an additional layer of safety by adding an isolation fuse to each pack. This further isolates any problem that operating your equipment at maximum ratings, or a harsh environment might throw at the batteries, and adds safety for very little additional effort. This kit includes 4 fuse blocks and fuses, each rated for up to 150 Amps and 58 Volts, plus a spare fuse. Uses a standard fuse type, so other fuses can be interchanged if needed.
Ring terminals connect to all 12-48V Dakota Lithium batteries 23Ah of capacity and larger
Wire Guage
6 gauge wire
Wire Length
18" per segment
Compatibility
Connects up to four batteries (12-48V) in parallel. Compatible with any Dakota Lithium battery 23Ah of capacity or larger
Made in Minnesota
By Connect-Ease
Fuse Protection Included
Each Dakota pack comes with individual internal Battery Management System (BMS) circuit board protection. In addition to that safety layer, when wiring packs to work in unison in a parallel array, we recommend adding an additional layer of safety by adding an isolation fuse to each pack. This further isolates any problem that operating your equipment at maximum ratings, or a harsh environment might throw at the batteries, and adds safety for very little additional effort. This kit includes 4 fuse blocks and fuses, each rated for up to 150 Amps and 58 Volts, plus a spare fuse. Uses a standard fuse type, so other fuses can be interchanged if needed.
