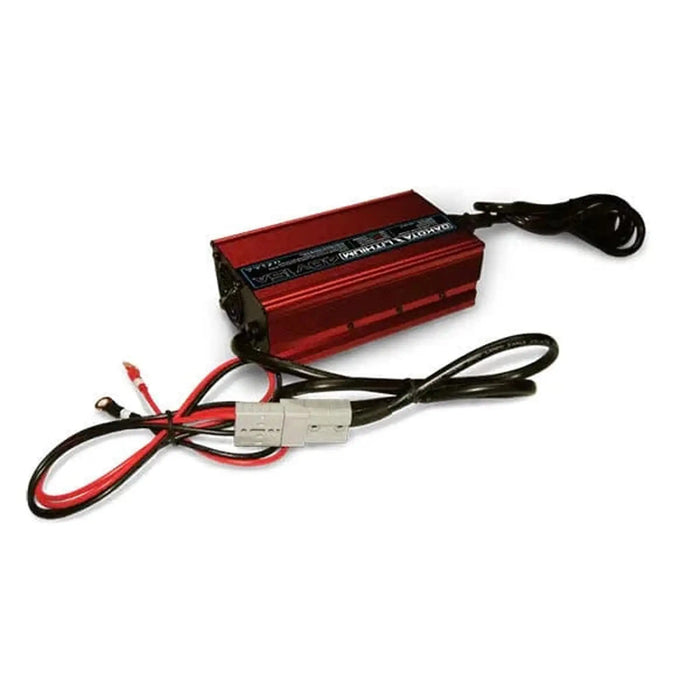

Dakota Lithium | Ultra Fast 48V 15A LiFePO4 Battery Charger
Overview
Fast Charging for 48V Lithium Batteries – 15A Charger
High-performance 48V lithium charger designed for rapid charging and long battery lifespan.
Key Features
- 15A Charging Power – Charges a 48V 50Ah battery in <3.5 hours and a 100Ah battery in <6.5 hours.
- Optimized for LiFePO4 Batteries – Maximizes efficiency and battery life.
- Durable & Efficient – High tensile aluminum case for rapid cooling and long-lasting performance.
- Safe & Easy Connection – Includes Anderson plug with ring terminals for secure charging.
- Versatile Compatibility – Works with all Dakota Lithium 48V batteries and Connect-Ease trolling motor wiring kits.
Note: Not suitable for SLA or lead-acid batteries.
Specification
For 48 volt lithium batteries
We highly recommend you use a LiFePO4 compatible charger. 48v chargers for lead acid batteries may work, but will decrease performance and lifespan of the battery.
Charger rating
INPUT 100-240 volts, 50/60HZ. OUTPUT: 57.6 volts, 15.0 amps
Terminal Connections
Anderson SB 50 connections make it easy to connect your charger to the battery. Install the ring terminals using the bolts on your terminals. Bolt black to your black terminal. Red to your red terminal. Do not short circuit. Then connect the charger via the Anderson plug when you need to charge. Red light on the charger will turn on when charging. Light turns green when the battery is full.
Smart BMS communication
Charger will restart or "wake up" a Dakota Lithium BMS that has turned off a battery due to short circuit or excessive amp draw. Simply connect the charger to the battery to initiate a restart.
How fast will my battery charge?
Charges at a rate of 15 amps. To determine your charging speed take the amp hour rating of your battery and divide by 15. For example, a 48v 50 amp hour battery (Ah) would charge in 3.5 hours.
Can I charge my battery faster?
For most applications a charging time of 3 - 10 hours provides the longest lifespan for your battery. But if you have an application where you need rapid charging Dakota Lithium batteries can be safely charged in up to 1 hour (at a rate of 1C). For example, you could use a 15 amp 48V charger with a 15 Ah 48V battery for a 1 hour charge time. Charging at a 1 hour rate does reduce the lifespan over time. In our laboratory testing we found that the longest lifespan for Dakota Lithium batteries was at a charging speed of 0.3C or less (we recommend that the charger amp rating is 1/3 or less of the battery amp hour rating for longest lifespan).
What voltage should LiFePO4 batteries be charged at?
57.6 volts is recommended for 48v Dakota Lithium (LiFePO4) batteries. This charger charges at 57.6 volts.
