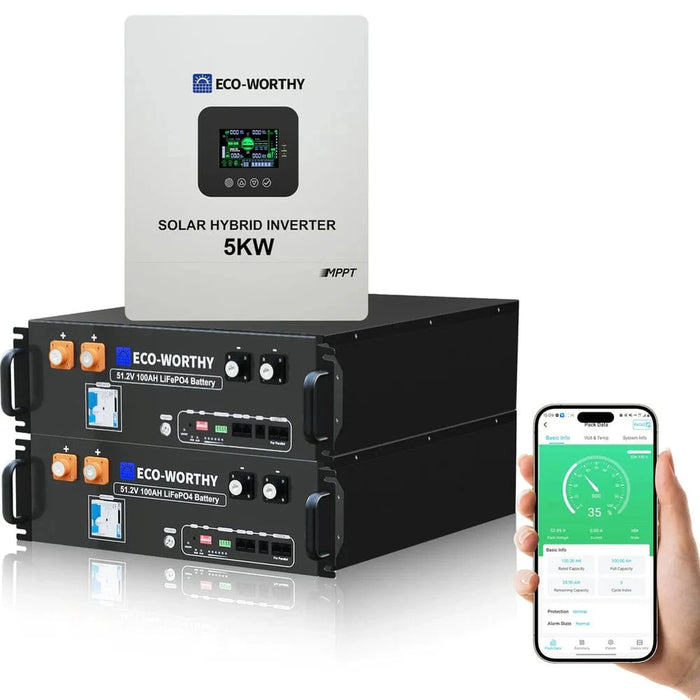

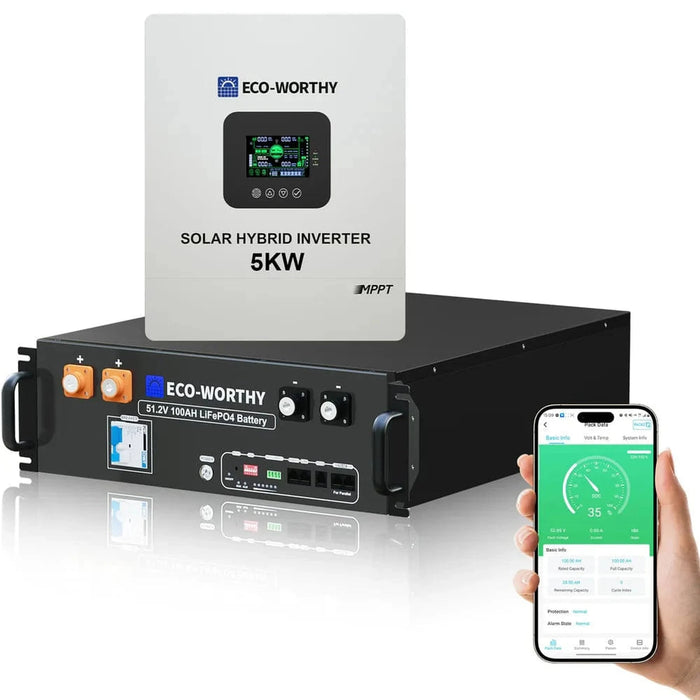

ECO-WORTHY 5.12–72kWh Home Backup Power Kit with 48V 100Ah LiFePO₄ Battery & 5000W/10000W Hybrid Inverter
The ECO-WORTHY Home Backup Power Kit provides scalable, reliable energy for residential use. Featuring a 48V 100Ah LiFePO₄ battery and powerful 5000W or 10000W hybrid inverter, it supports loads from essential appliances to full-home systems. Expandable up to 72kWh, it’s ideal for off-grid living, backup power, and solar integration.
KEY FEATURES
- Scalable energy storage system ranging from 5.12kWh to 72kWh
- 48V 100Ah LiFePO₄ battery with 6000+ deep cycles at 80% DOD

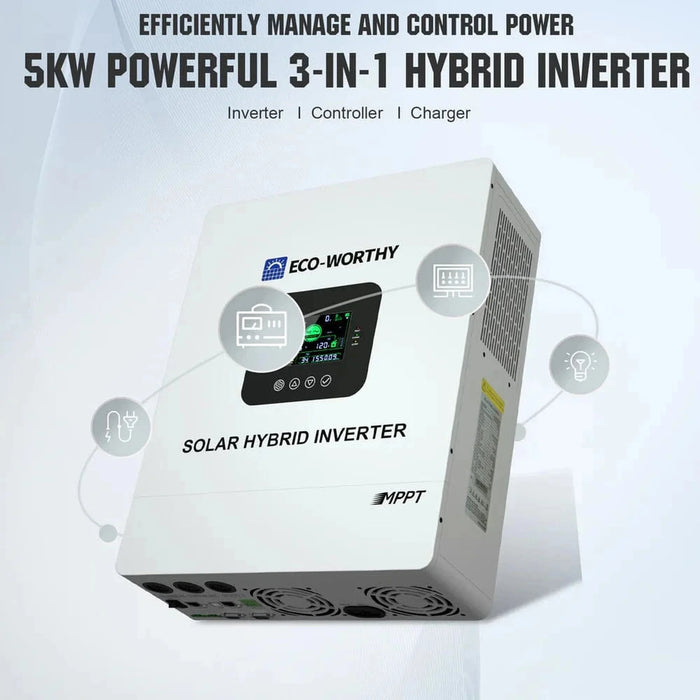

- Pure sine wave hybrid inverter with 5000W or 10000W power output
- Integrated MPPT charge controller maximizes solar charging efficiency
- Built-in BMS ensures battery safety and extended service life
- Real-time monitoring via LCD screen and multiple communication protocols
- Supports solar, grid, and generator inputs for flexible energy sources
- Parallel-ready design for expanding storage and output
- Ideal for home backup, off-grid cabins, and small commercial setups
- Compatible with most solar panels and 48V system architectures

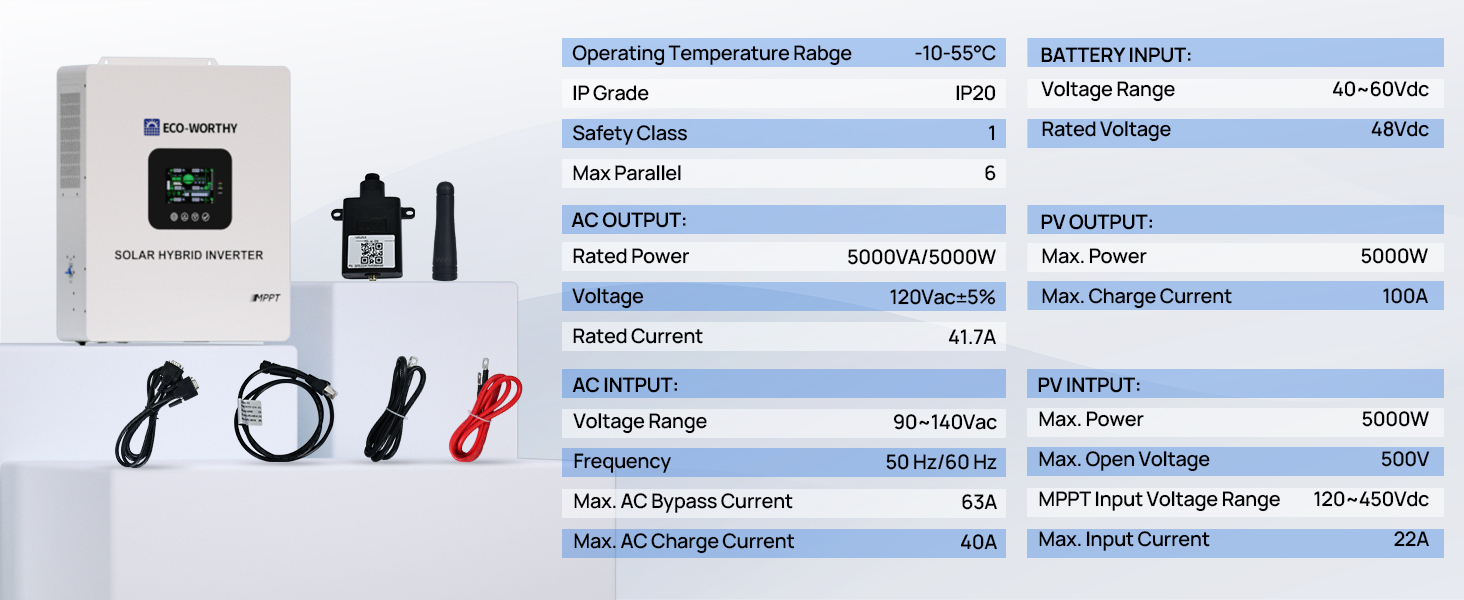

Specifications
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Battery Voltage | 48V DC |
| Battery Capacity (Single Unit) | 100Ah (5.12kWh) |

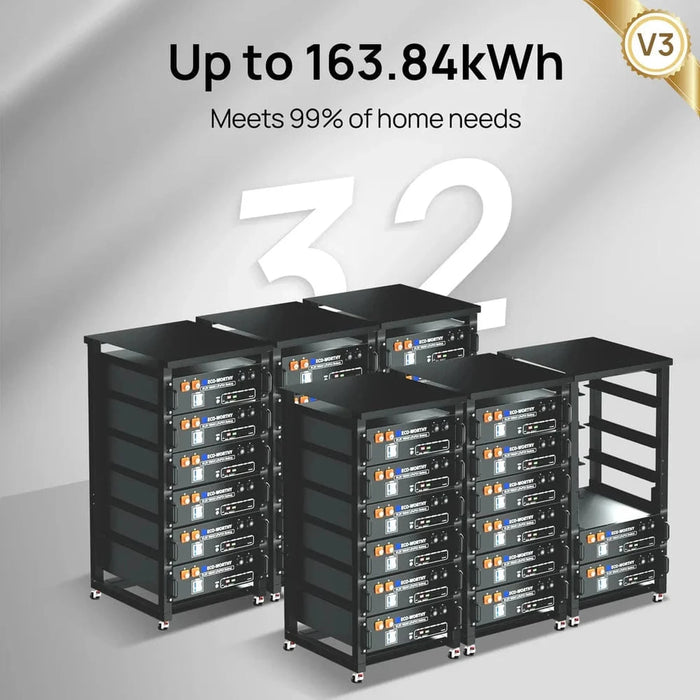

| Expandable Capacity | Up to 72kWh (via parallel connection) |
| Cycle Life | 6000+ cycles @ 80% DOD |
| Inverter Output Options | 5000W or 10000W |
| Inverter Type | Hybrid Pure Sine Wave Inverter |
| Input Voltage (Inverter) | 48V DC |
| AC Output Voltage | 220V / 230V AC (Single Phase) |
| Surge Power | 2x rated output (e.g., 10000W surge for 5000W unit) |
| MPPT Solar Charge Controller | 100A MPPT (built-in) |
| Max PV Input Voltage | 145V DC |

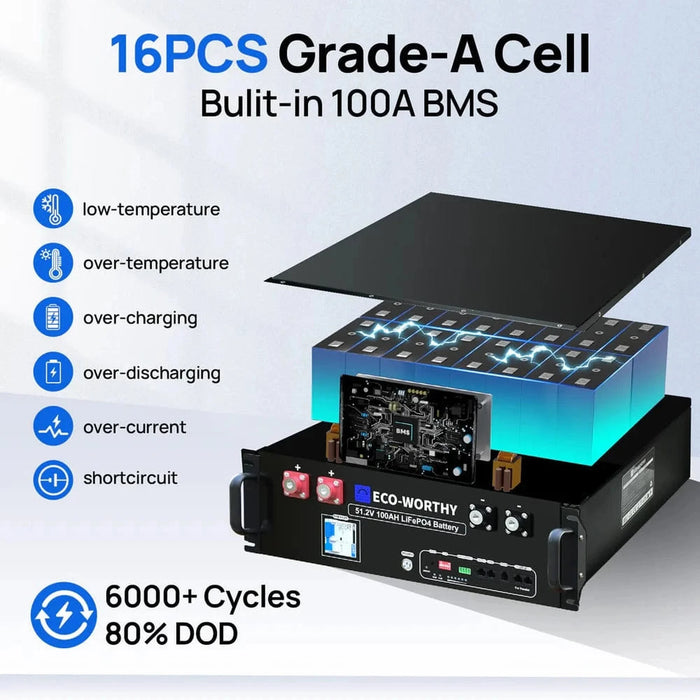

| Battery Management System (BMS) | Integrated Smart BMS |

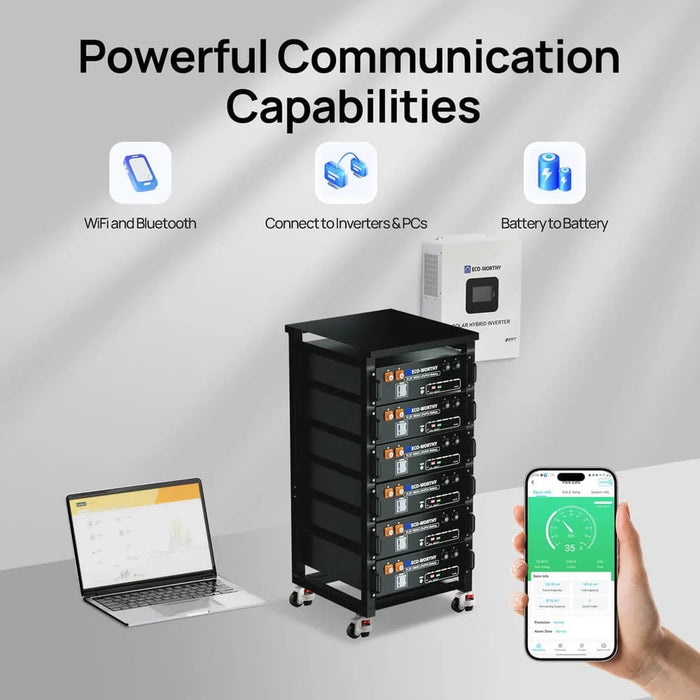

| Monitoring Interface | LCD display + RS485/CAN communication |
| Protection Features | Over-voltage, short-circuit, temperature, over-discharge |
| Mounting | Stackable battery design, wall or floor mount for inverter |
| Battery Dimensions (per unit) | 19.6 x 16.5 x 6.7 in (498 x 420 x 170 mm) |
| Battery Weight (per unit) | 99 lbs (45 kg) |

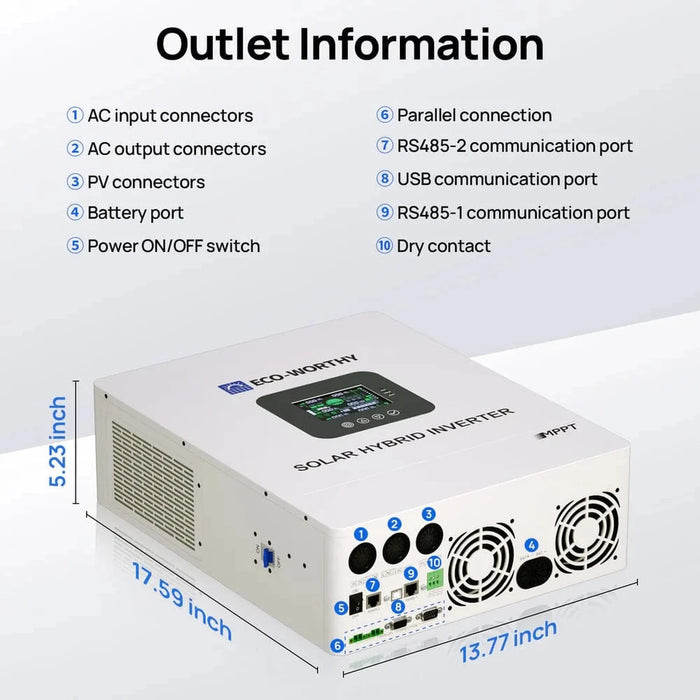

| Inverter Dimensions (5kW) | 17.3 x 12.8 x 5.1 in (440 x 325 x 130 mm) |
| Certifications | CE, UN38.3, MSDS |
| Applications | Home energy storage, off-grid living, backup power, solar systems |
