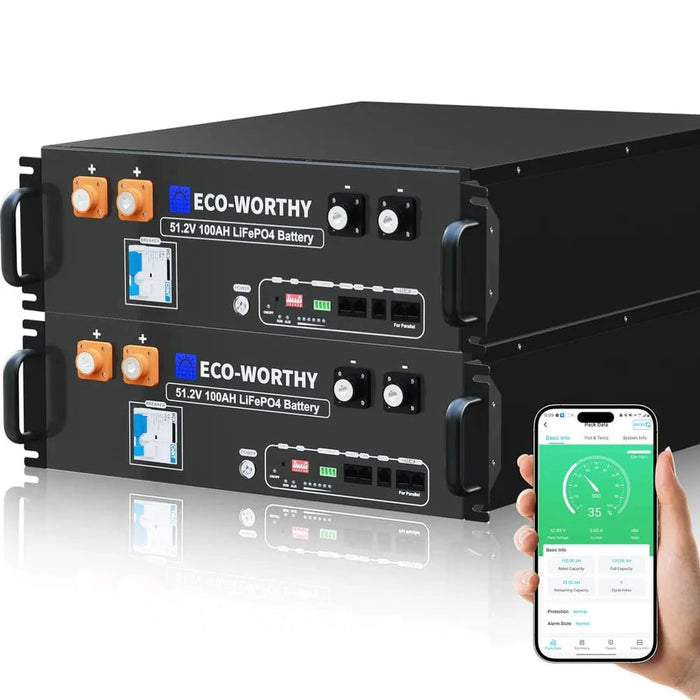

ECO-WORTHY 48V 100Ah Server Rack Battery, 5.12kWh Lithium Battery, 3U Size, With Bluetooth & WiFi
The ECO-WORTHY 48V (51.2V nominal) 100Ah Server Rack Battery is a high-performance lithium energy storage solution designed to meet the demands of residential, commercial, and off-grid solar systems. With a 5.12kWh capacity, this compact 3U-size lithium battery uses advanced LiFePO4 chemistry for exceptional safety, longevity, and efficiency.
Equipped with integrated Bluetooth and WiFi monitoring, this smart battery allows real-time performance tracking via mobile devices or desktop platforms. Its smart Battery Management System (BMS) safeguards against overvoltage, undervoltage, overcurrent, short-circuiting, and thermal fluctuations—ensuring optimal performance and peace of mind. The rack-mountable design makes installation and future expansion easy, allowing for scalable energy storage systems.
Key Features
High-Capacity Performance
-
51.2V nominal voltage, 100Ah capacity
-
Provides a total of 5.12kWh of usable energy for demanding applications

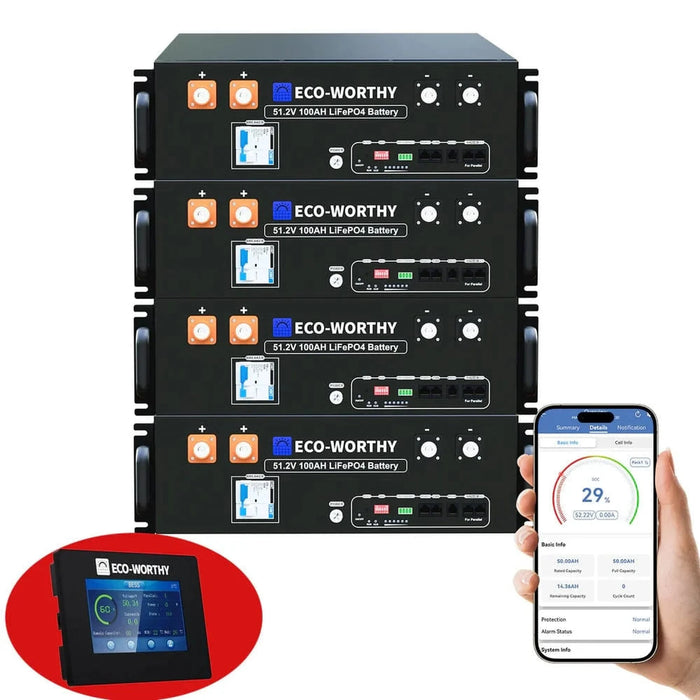

Smart Monitoring Technology
-

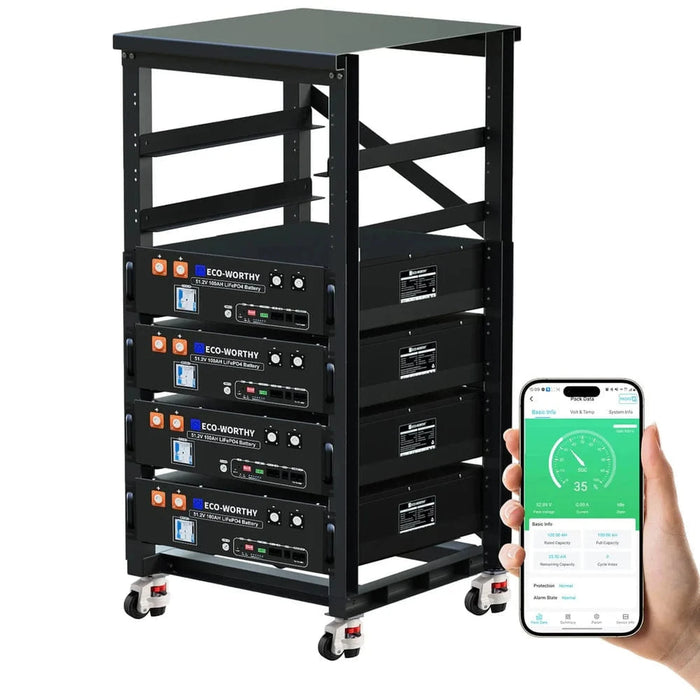

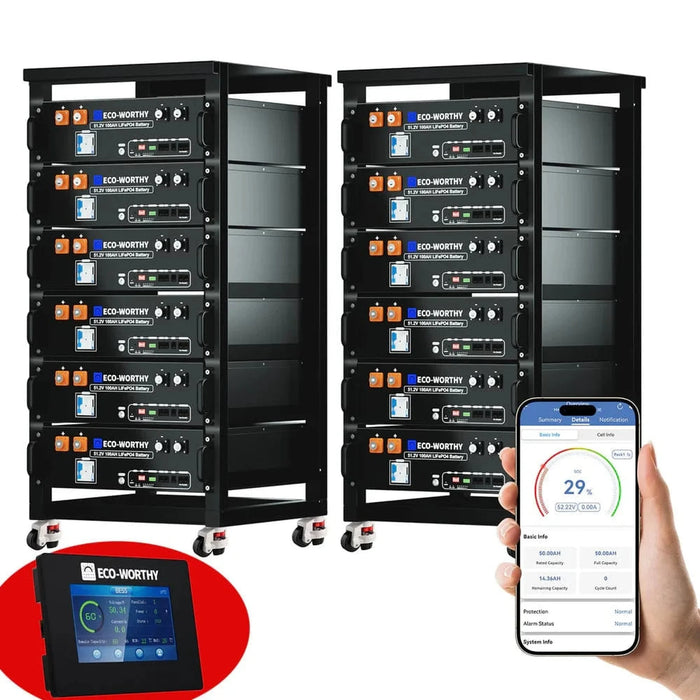

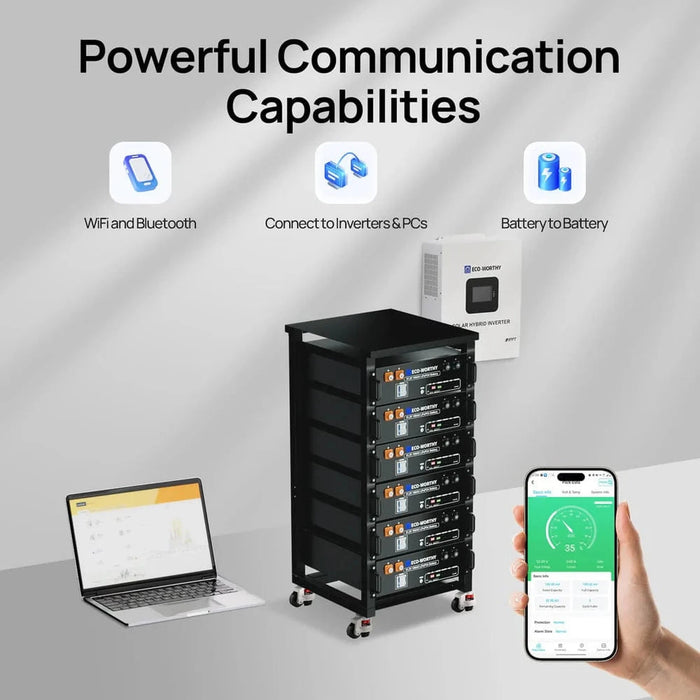

Integrated Bluetooth & WiFi for remote monitoring and diagnostics
-
Easily track battery health, charge levels, and performance in real time
Advanced LiFePO4 Chemistry
-
Enhanced safety with built-in thermal and chemical stability
-

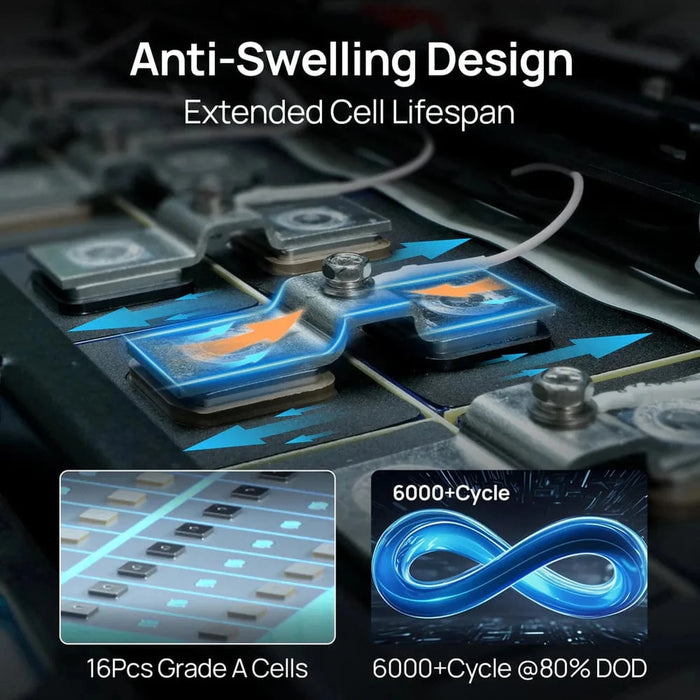

Delivers over 6000 charge/discharge cycles at 80% depth of discharge

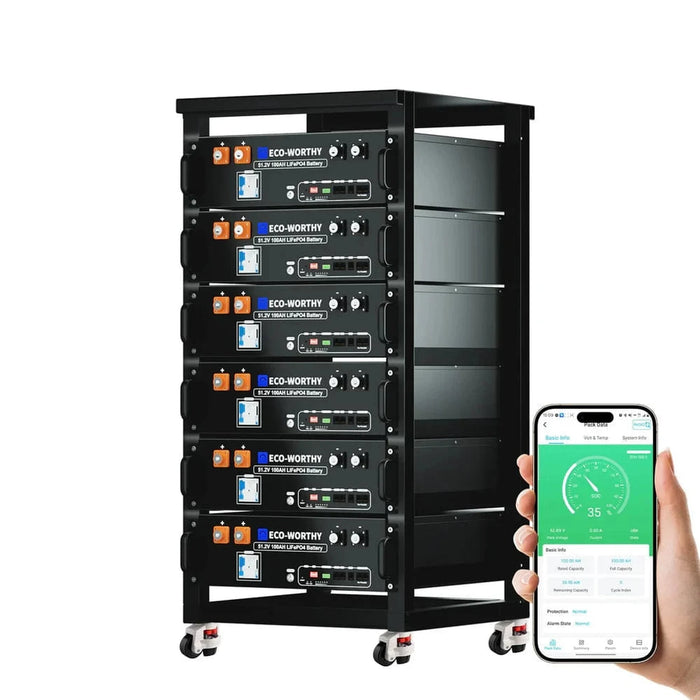

Compact 3U Rack-Mountable Design
-
Industry-standard server rack size for easy system integration
-

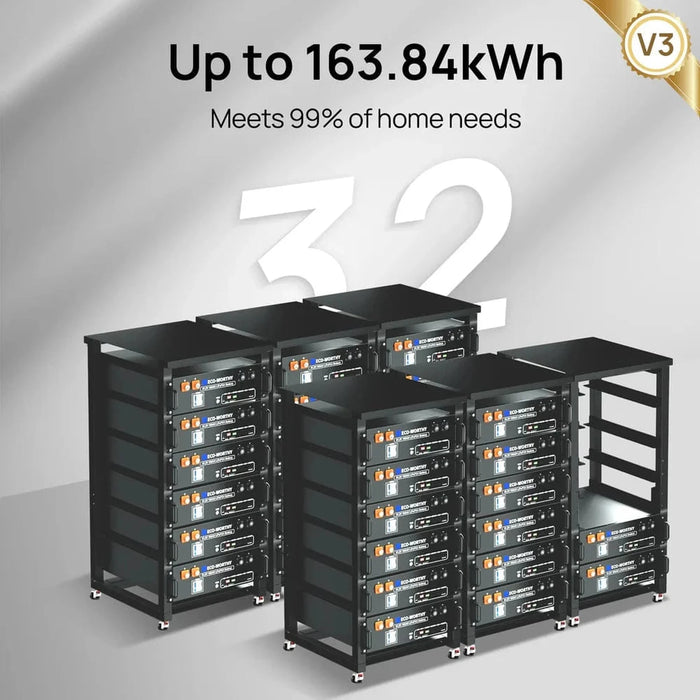

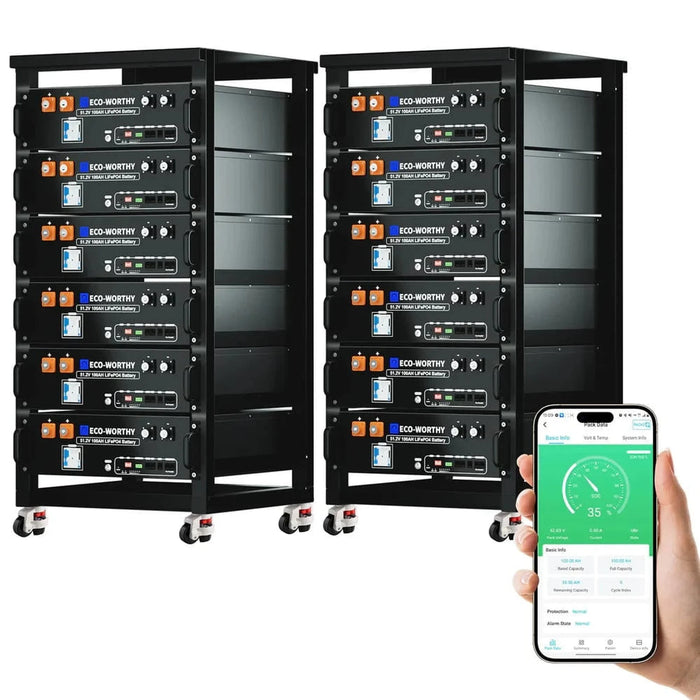

Modular format allows seamless expansion in larger setups

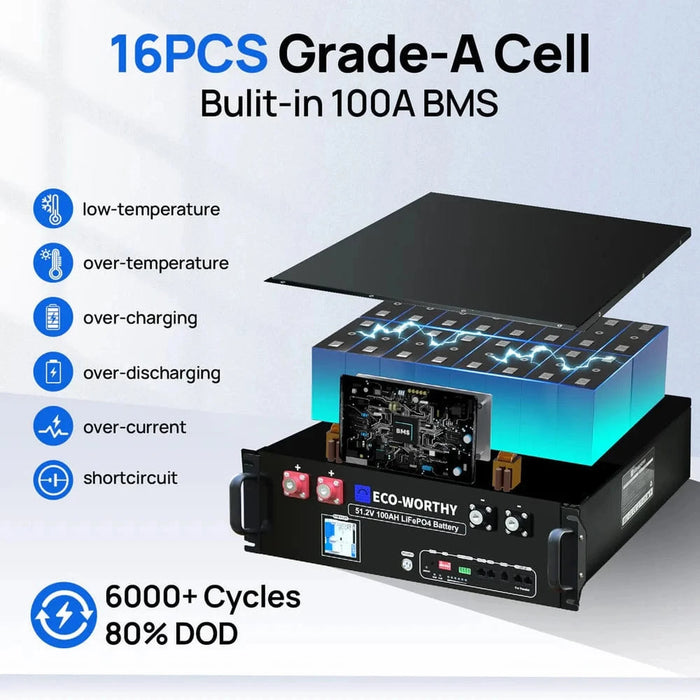

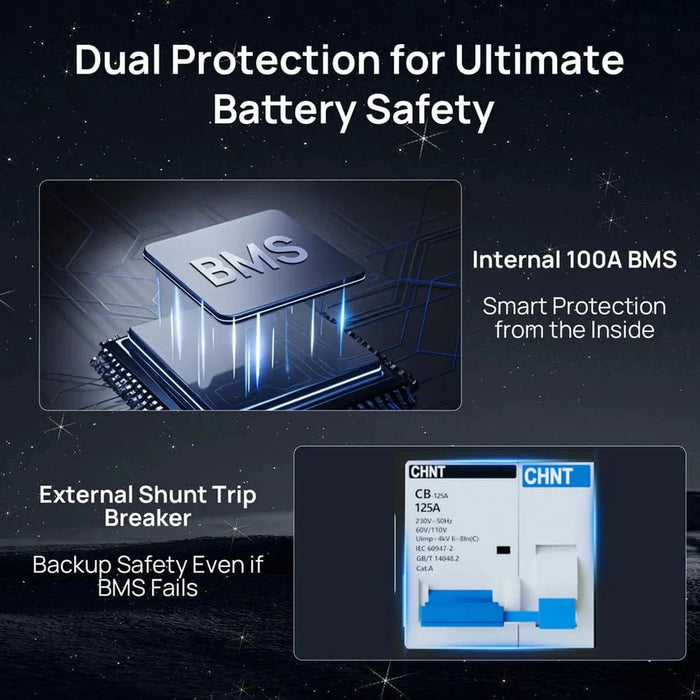

Reliable BMS Protection
-
Safeguards against overcharging, deep discharging, overheating, and short circuits
-
Ensures long-term battery stability and consistent power output
Maintenance-Free Operation
-
-
No need for fluid checks, balancing, or manual upkeep
-
Eco-friendly and safe for indoor or enclosed use
-
Specification
| Specification | Details |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Total Energy | 5120Wh (5.12kWh) |
| Cycle Life | ≥6000 cycles (at 80% DOD) |
| Charging Voltage | 58.4V |
| Max Charging Current | 100A |
| Max Discharge Current | 100A |
| Discharge Cut-off Voltage | 40V |
| Operating Temperature (Charge) | 0°C ~ 55°C |
| Operating Temperature (Discharge) | -20°C ~ 60°C |
| Storage Temperature | -10°C ~ 50°C |
| Weight | Approx. 45 kg |

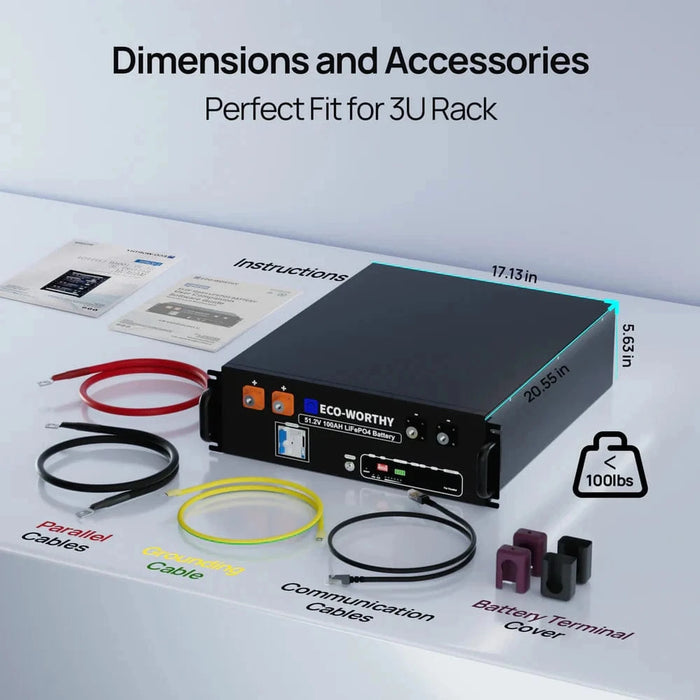

| Dimensions (L×W×H) | 482 × 420 × 177 mm |

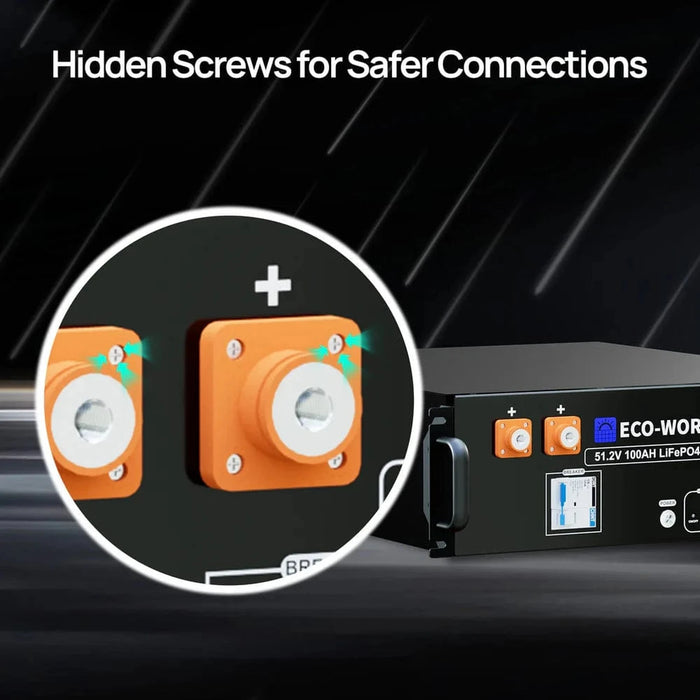

| Terminal Type | Anderson / Terminal Posts |
| BMS Integrated | Yes |
| Expandable | Yes (Supports Parallel Connection) |
| Mounting Type | Rack Mount |
