ECO-WORTHY 10KW Off-Grid Solar Power System with 120V/240V Output, 13.34kWh LiFePO₄ Battery & 4920W Solar Panels

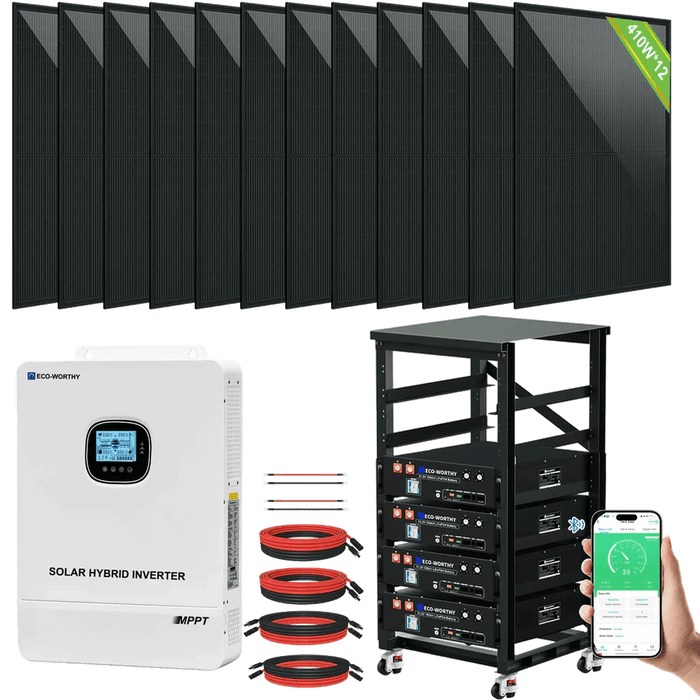

Designed for full-home off-grid power, the ECO-WORTHY 10KW Solar Power System includes a split-phase 120V/240V inverter, high-capacity 13.34kWh lithium battery bank, and a 4920W solar array. With 4 x 51.2V 280Ah LiFePO₄ batteries and 12 high-efficiency 410W solar panels, this system delivers stable and scalable clean energy for homes, farms, and remote properties.
KEY FEATURES

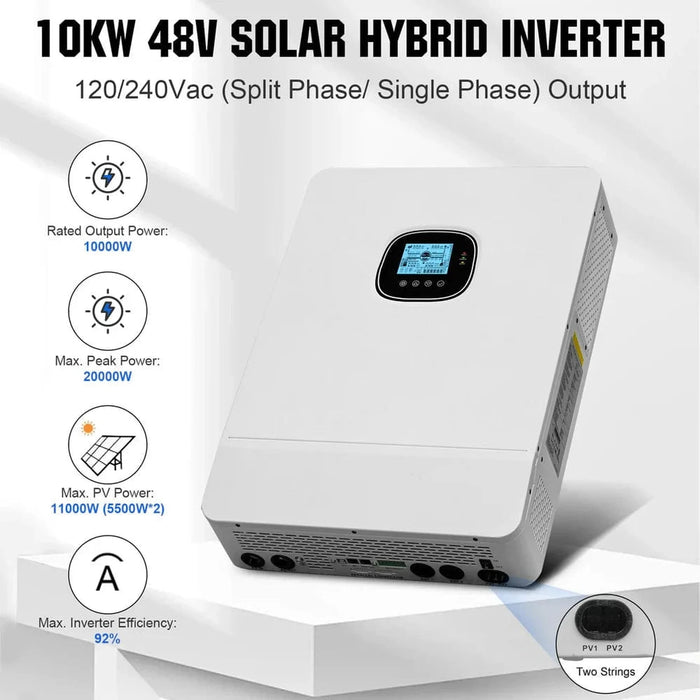

- 10KW pure sine wave inverter with 120V/240V split-phase AC output

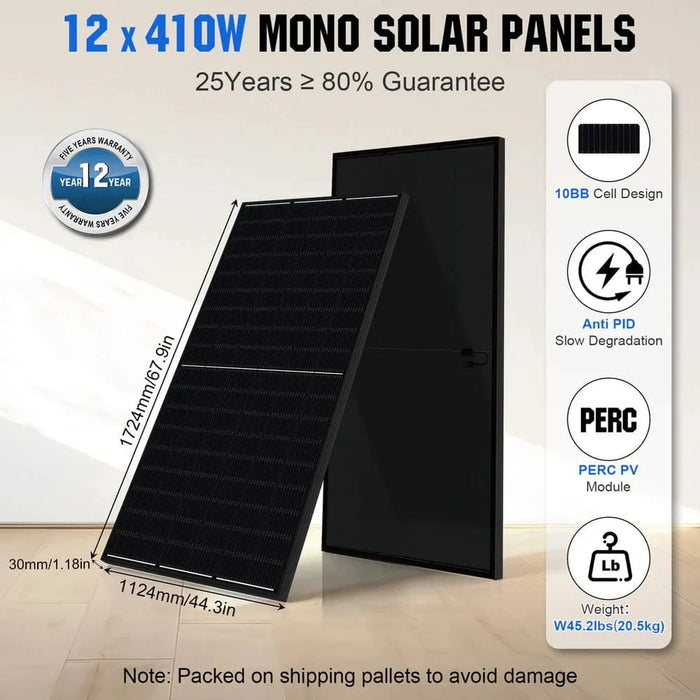

- 12 x 410W monocrystalline panels generate 4920W of solar power
- 13.34kWh lithium battery bank (4 x 51.2V 280Ah) with 6000+ cycles
- Advanced MPPT controller maximizes solar charging efficiency
- Ideal for whole-home off-grid use and essential backup power

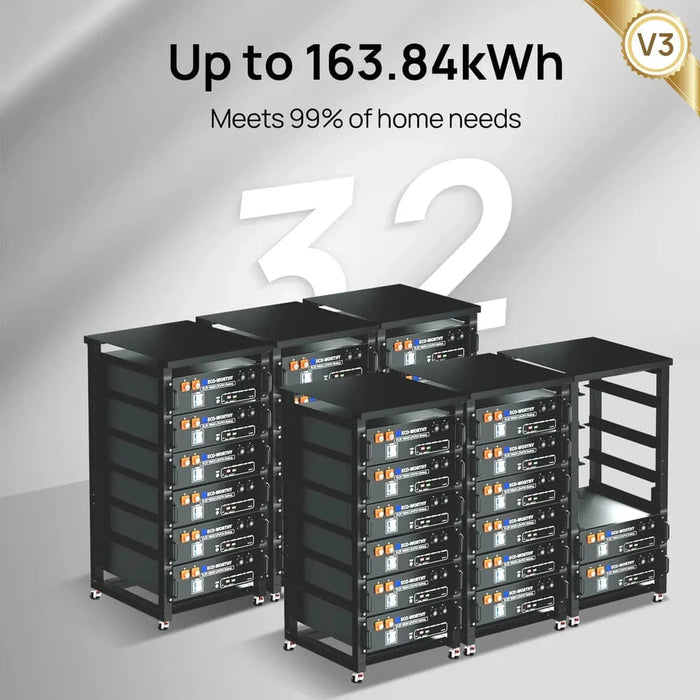

- Expandable battery and solar capacity for future energy needs
- Real-time monitoring via LCD screen and built-in communication ports
- Weather-resistant panels with tempered glass and aluminum frames

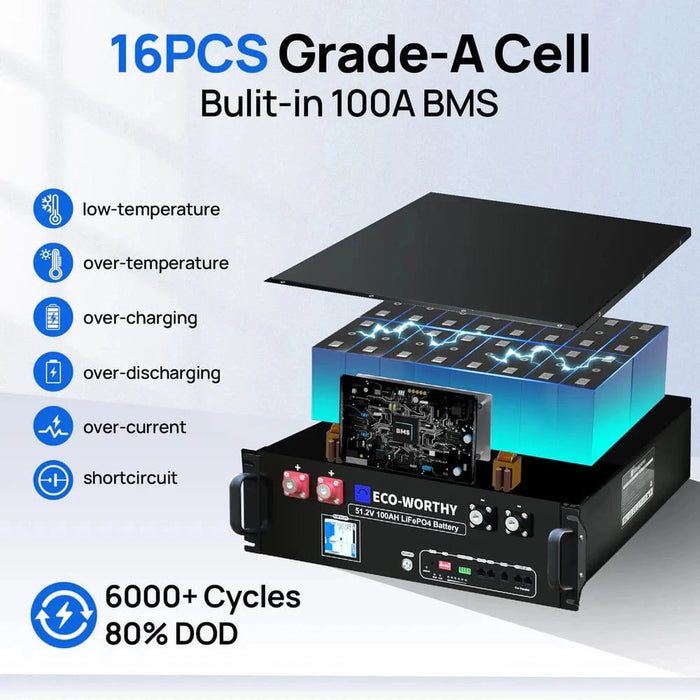

- Smart BMS integrated for battery safety and longer lifespan

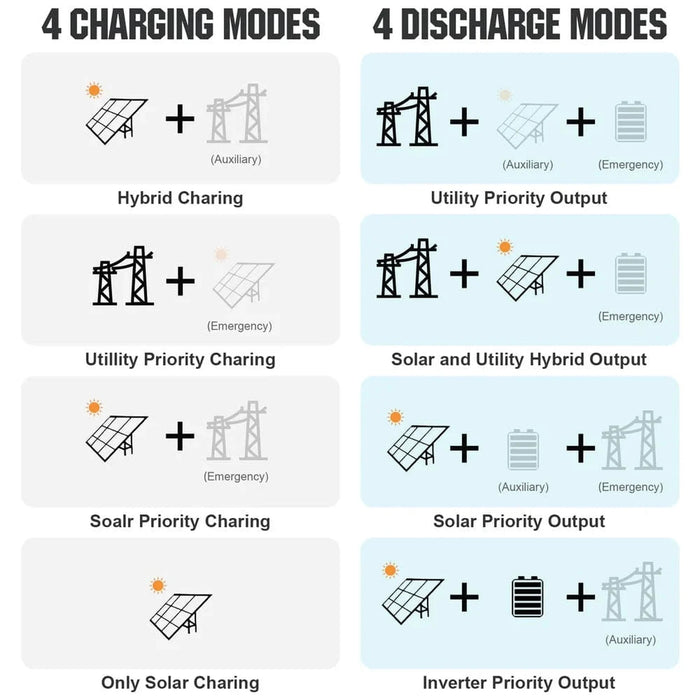

- Supports solar, grid, and generator charging sources
Specifications
| Inverter Power | 10KW Pure Sine Wave |
| AC Output Voltage | 120V / 240V Split-Phase AC |
| Surge Power | 20KW |
| Solar Panel Output | 4920W (12 x 410W Monocrystalline Panels) |
| Panel Type | Monocrystalline Silicon |
| Panel Efficiency | ≥ 21% |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Battery Capacity (Total) | 13.34kWh (4 x 51.2V 280Ah) |
| Battery Cycle Life | 6000+ cycles @ 80% DOD |
| System Voltage | 48V DC |
| Charge Controller Type | MPPT 120A Integrated |
| Max PV Input Voltage | 145V DC |
| BMS | Built-in Smart Battery Management System |

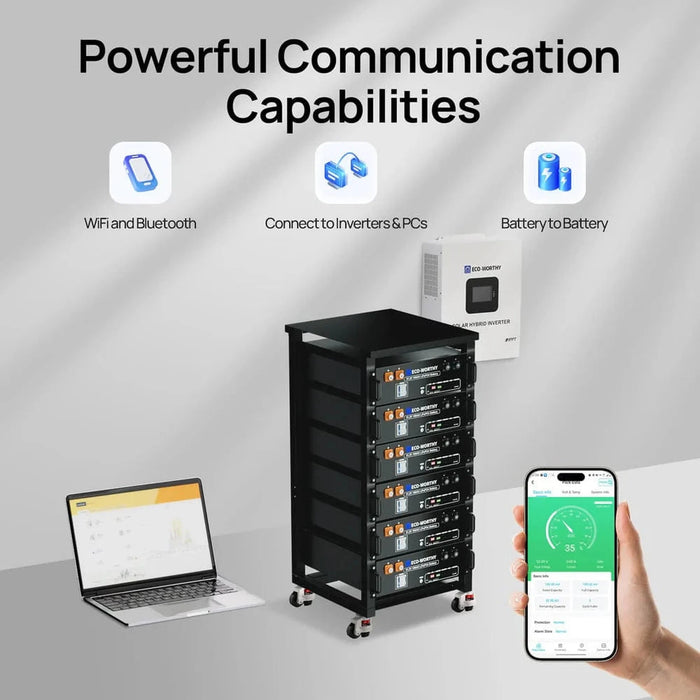

| Monitoring Interface | LCD Display, RS485 / CAN Communication |
| Panel Dimensions (Each) | 65 x 31 x 1.4 in (1650 x 790 x 35 mm) |
| Panel Weight (Each) | 41.8 lbs (19 kg) |
| Battery Dimensions (Each) | 22.4 x 19.7 x 43.3 in (570 x 500 x 1100 mm) |
| Battery Weight (Each) | 287 lbs (130 kg) |
| Operating Temperature | -20°C to 60°C |
| Certifications | CE, UN38.3, MSDS |
| Applications | Off-grid homes, cabins, farms, whole-home backup, solar power |
