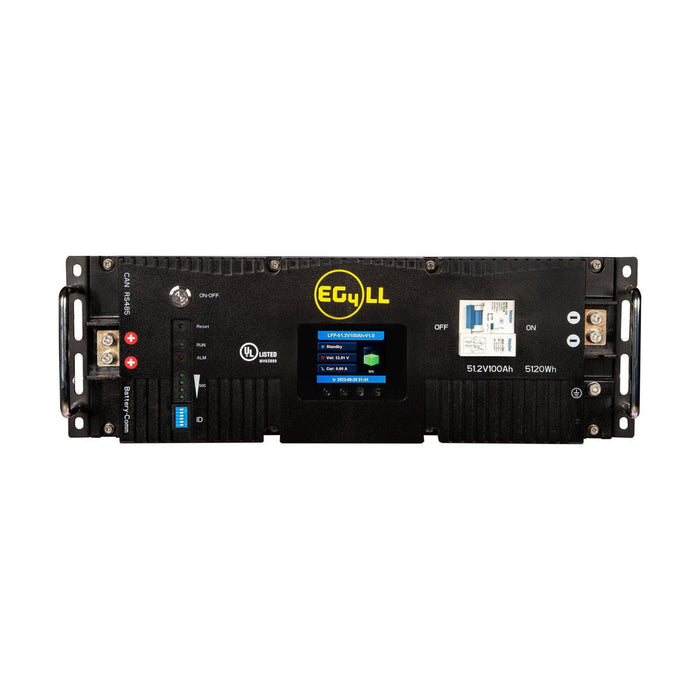

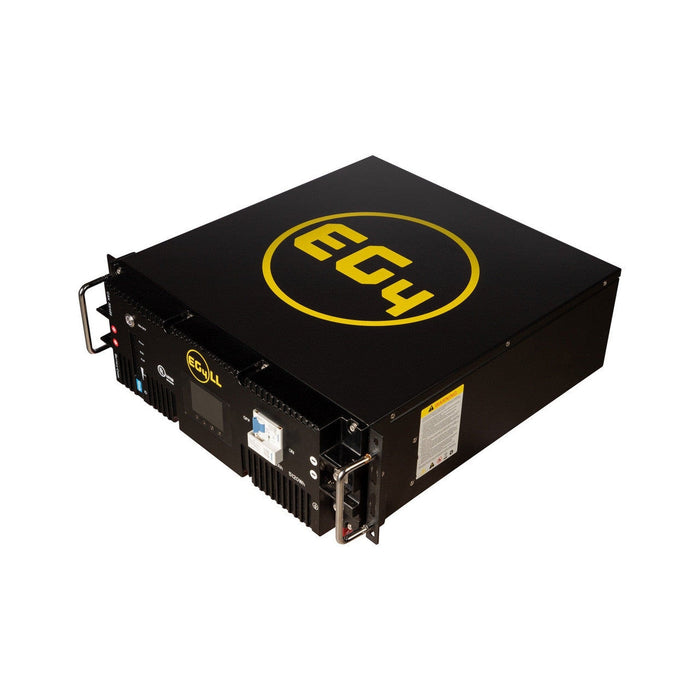

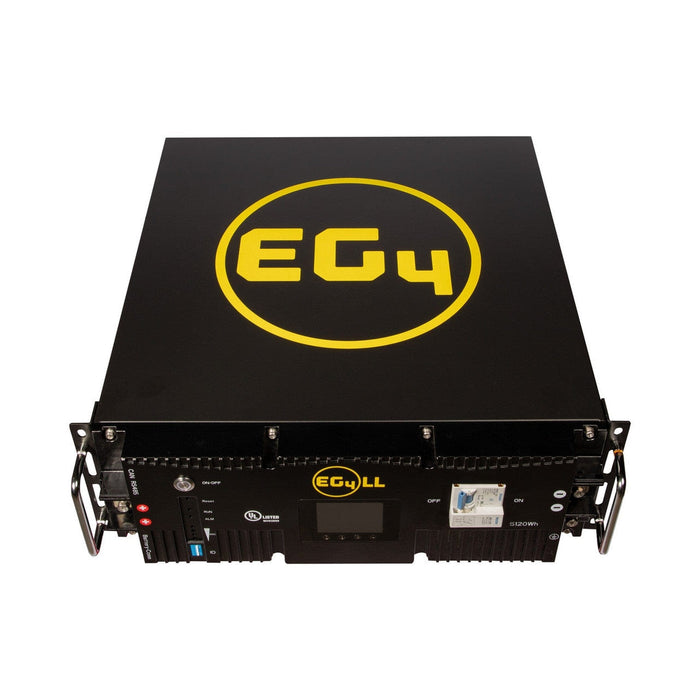

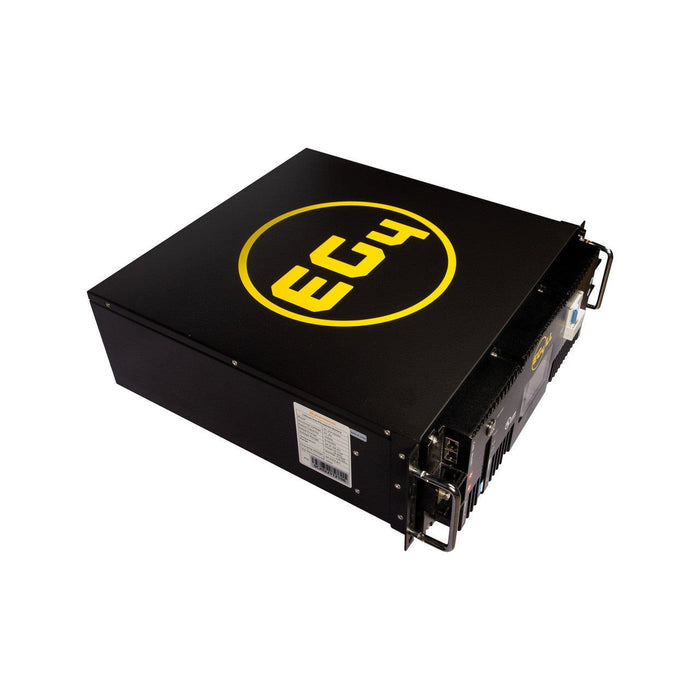

EG4 LL-S Lithium Battery | 48V 100AH | Server Rack Battery | UL1973, UL9540A | 10-Year Warranty
Overview
EG4-LL-S lithium batteries boast exceptional performance and durability. Rest assured, our batteries are engineered to withstand over 7000 deep charge and discharge cycles, with a lifespan exceeding 15 years at an 80% depth of discharge daily.
On-board LCD Touch Screen
Convenient BMS monitoring and adaptable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
Enhanced Safety Features
- The E-Stop feature ensures secure operation in high-risk environments. (Additional RSD/ESS disconnect or compatibility with a supported rapid shutdown inverter may be necessary for E-Stop functionality).
- On-board dual fire arrestors provide extra peace of mind during operations.
Parallel up to 64 Batteries
- To maximize power, our 6 DIP switch option enables you to achieve 327.6kWh while maintaining BMS communications.
Additional Info
- Nominal Voltage:51.2V
- Nominal Capacity:100AH
- Kilowatt-hour(s):5.12kWh
- Dimensions: 6.1 × 19 × 17.4 in.
- Design Life:*15 Years at 80% DoD
- Communications:RS485/CAN: EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters
What's Inside
- (1) EG4-LL Battery Module
- (1) Inter-battery Communication Cable
- (1) ea. 5-AWG Pos. and Neg. Connection Cables
- (4) M6-1.0 Terminal Bolts
Specifications and Manuals
Click Here for Specifications Sheet
- Nominal Voltage: 51.2V
- Nominal Capacity:100AH
- Kilowatt-hour(s): 5.12kWh
- Dimensions: 6.1 × 19 × 17.4 in.
- Design Life: *15 Years at 80% DoD
- Communications: RS485/CAN: EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters
Warranty
10 Year Warranty
______________________________________________________________________________________________
Warranty Registration and Validity
Your warranty must be registered within the first year of purchase or you must provide proof of purchase from Solar Guys Pro, an EG4 authorized distributor, for it to remain valid. Failure to register or provide proof of purchase may result in an invalidated warranty. This limited warranty applies to the original purchaser and is transferable one time only if the product remains in the original installation location. All parts exchanges are covered during the warranty period, but replacement shipping charges may apply outside the continental US.
Warranty Exclusions: EG4 Electronics is not obligated under this limited warranty for products subjected to the following conditions (including but not limited to):
1) Damages incurred during installation, reinstallation, or removal
2) Poor workmanship by an individual, installer, or firm
3) Damages from mishandling or inappropriate environmental exposure
4) Damages from improper maintenance or operating outside specified conditions
5) Tampering, altering, or disassembly of the product
6) Using the product in unintended applications
7) Damages from lightning, fire, flood, earthquake, riots, or acts of God
8) Products with altered, defaced, or removed serial numbers
9) Unauthorized firmware updates, upgrades, or patches
10) Damages from voltage or current spikes due to open-loop lithium battery communications
EG4 product warranty is a limited warranty – EG4’s liability in the event of a product defect is limited to repair or replacement under the terms of this warranty. EG4 is not responsible for any additional or indirect damages arising from the product malfunction. This includes incidental or consequential damages, such as loss of revenue, profits, or time. EG4 is not liable for any direct or indirect loss of life, bodily injury, illness, or death arising from misuse or mishandling of the product, whether caused by negligence or otherwise.
Return Policy
For returns, please contact us at: 571-350-0146 or email us at: info@solarguyspro.com. To view our return policy, please go: HERE
Warranty Claims Procedure
To initiate a warranty claim, contact our customer service team via phone at 571-350-0146 or email at info@solarguyspro.com to request an RMA. Warranty claims can also be initiated through the official EG4 website (https://eg4electronics.com/warranty).
Contact Information:
- Email: info@solarguyspro.com
- Phone: +1571-350-0146
Warranty Periods
- Inverters:
- 10 years on 18kPV
- 3 years (5 years extended warranty with EG4 batteries) on 3k, 6k, 6.5k, and 8k
- Batteries:
- 10 years on LL
- 5 years on LifePower (10 years extended when used with 18kPV)
- 5 years on waterproof
- 5 years on indoor wall mount
- 10 years on outdoor wall mount
- Mini Split Air Conditioning:
- 5 years on EG4 Hybrid AC/DC 12K BTU Mini Split
- 5 years on EG4 Hybrid AC/DC 24K BTU Mini Split
- 5 years on EG4 9K AC Mini Split
- 5 years on EG4 12K AC Mini Split
