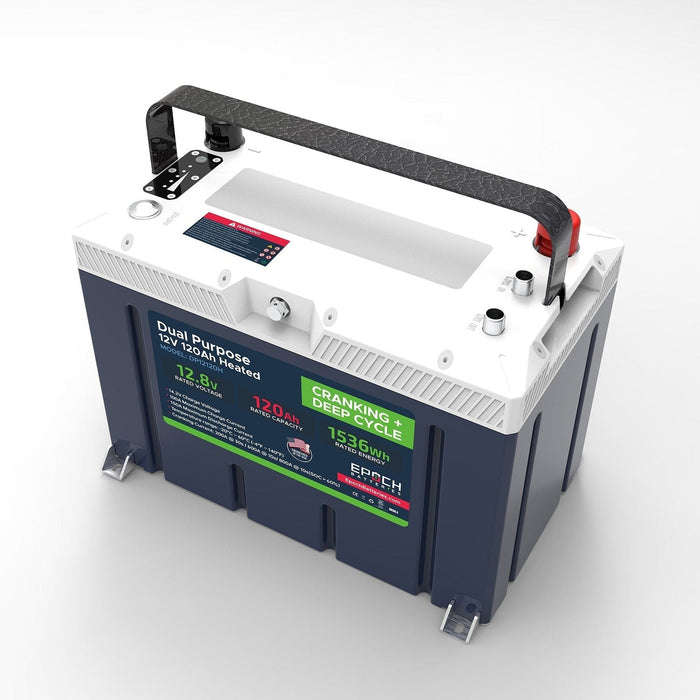

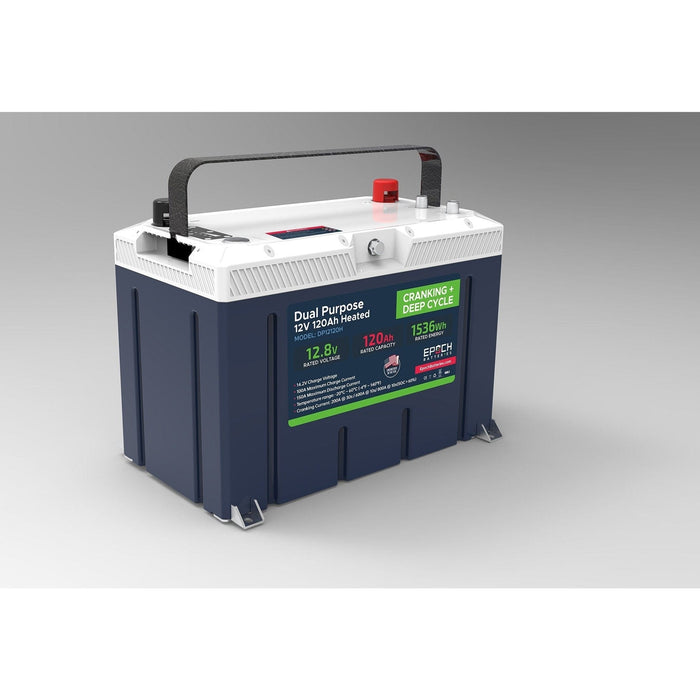

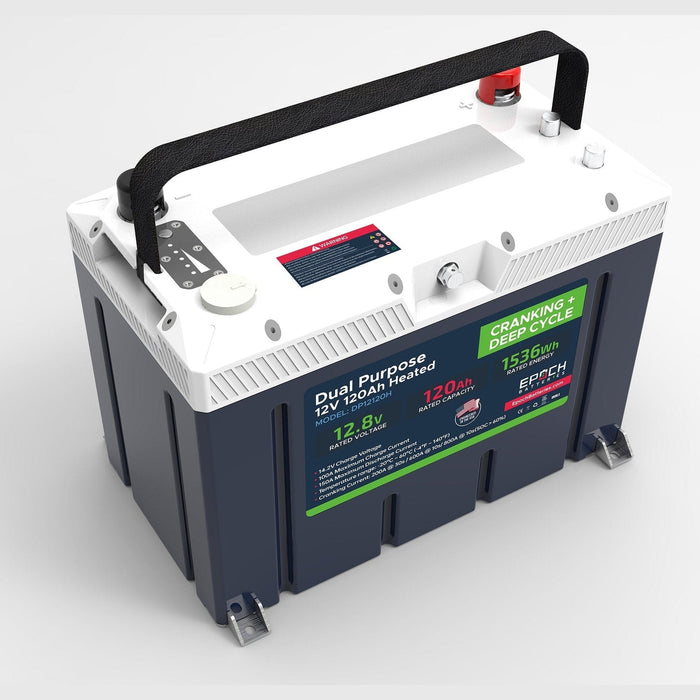

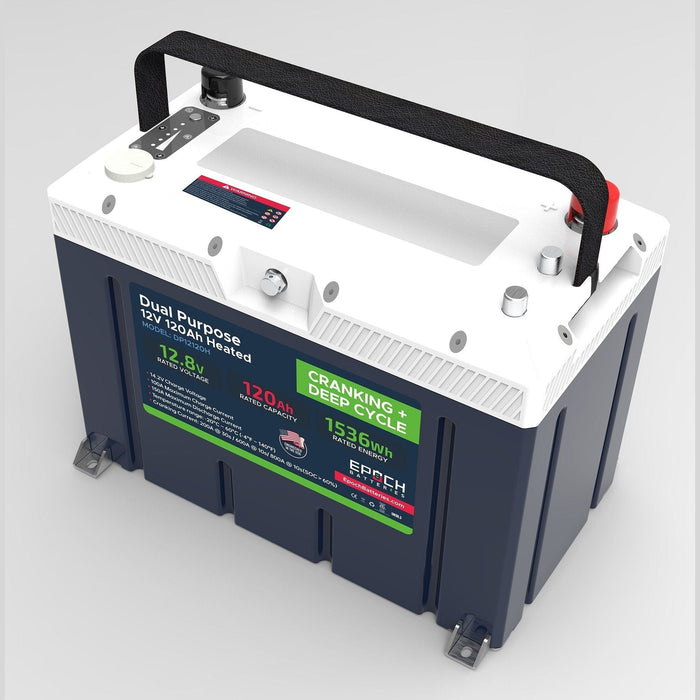

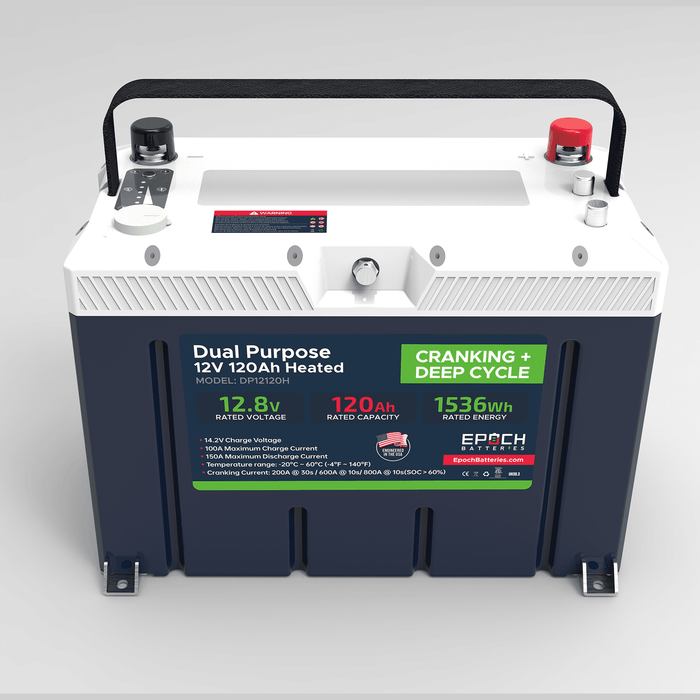

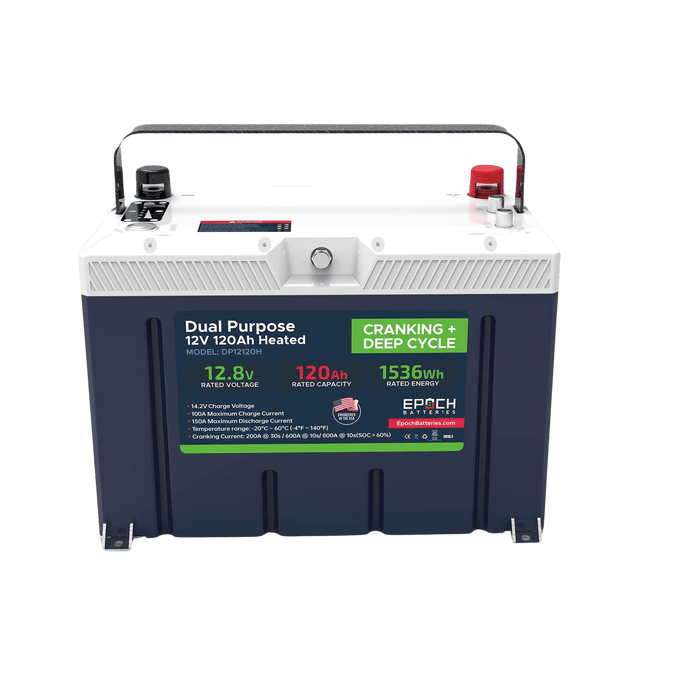

Epoch Batteries | 12V 120Ah - Group 27 - Cranking & Deep Cycle Lithium Battery (Dual Purpose)

SKU DP12120H
Save $300.00 Save $300.00
Original price $999.00
Original price $999.00 - Original price $999.00
Original price $999.00
Current price $699.00
$699.00 - $699.00
Current price $699.00

Overview

  • IP 67 Waterproof
  • iOS, Android Apps
  • 6000+ Cycles
  • Advanced BMS
  • Internal Heating
  • Safe & Reliable

Description

  • LiFePO4 Chemistry
  • Cranking Starter Battery ~ 1100 CCA ~ Compatible with all outboard motors up to 350hp
  • Cranking Battery - 800A @ 10s (SOC>60%), 800A @ 5s (SOC<60%), 600A @ 10s
  • Adjustable High Voltage Cutoff via Epoch Pro App - 14.6V to 15.4V
  • Peak charge acceptance 165A max for one minute
  • Deep Cycle Battery -150A Max Continuous Discharge
  • HEATED - Internal heating allows for charging in sub-zero conditions
  • BLUETOOTH - iOS and Android Apps
  • BLUETOOTH - Over the air Firmware update via the app
  • Victron Comms - CANBus entire string of batteries to Victron Cerbo GX
  • Closed Loop Communications
  • External Battery Gauge - Touch Screen (Optional)
  • IP67 Rated, Dust and WATERPROOF
  • Over charge and over discharge protection
  • Over current and short circuit protection
  • High & low temperature disconnects
  • Max (4) in Series up to 48V
  • Max (16) in Parallel
  • 6000+ Cycle life & Maintenance-free
  • 11 Year Manufacturer Warranty
  • Weight: 29.7 lbs
  • Dimension: Length: 12.25 (inches) x Width: 6.75 (inches) x Height: 9 (inches)

Specification

CONFIGURATION

  • Cell Configuration: 4S4P
  • Chemistry: LiFePO4

CURRENT

  • Ah Capacity: 120Ah
  • Max Continuous Discharge Amps: 150A
  • Max Charge Current Amps: 100A
  • Max Discharge Peak Current Amps: 800A @ 10s
  • Series | Parallel: Max (4) in Series, Max (16) in Parallel

VOLTAGE

  • Voltage: 12.8V
  • Max Charge Voltage: 15.4V
  • Operating Voltage Range: 10.0 - 15.4V

TEMPERATURE

  • Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)
  • Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
  • Storage Temp: 0°C (32°F) / 35°C (95°F)

Manuals & Downloads

User Manual
Data Sheet
