Fortress Power | Avalon High Voltage Hybrid Inverter 11.4 KW 120/240V
Overview

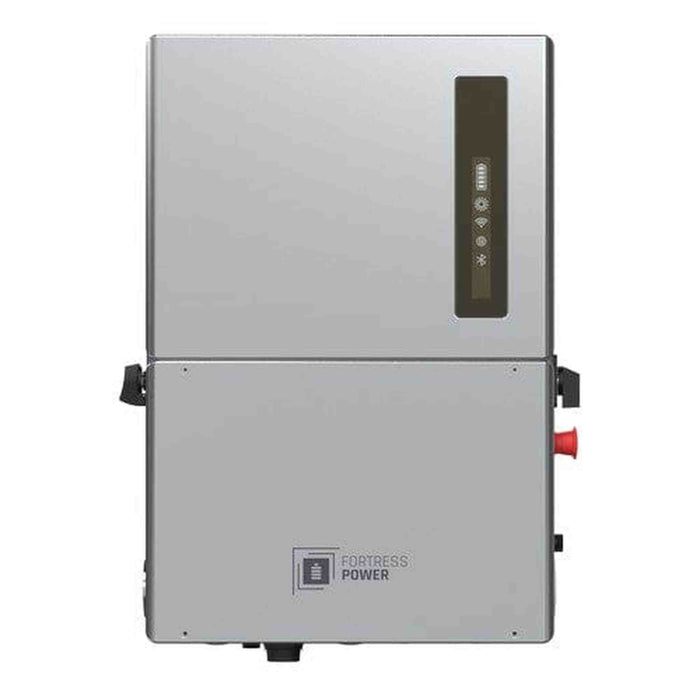

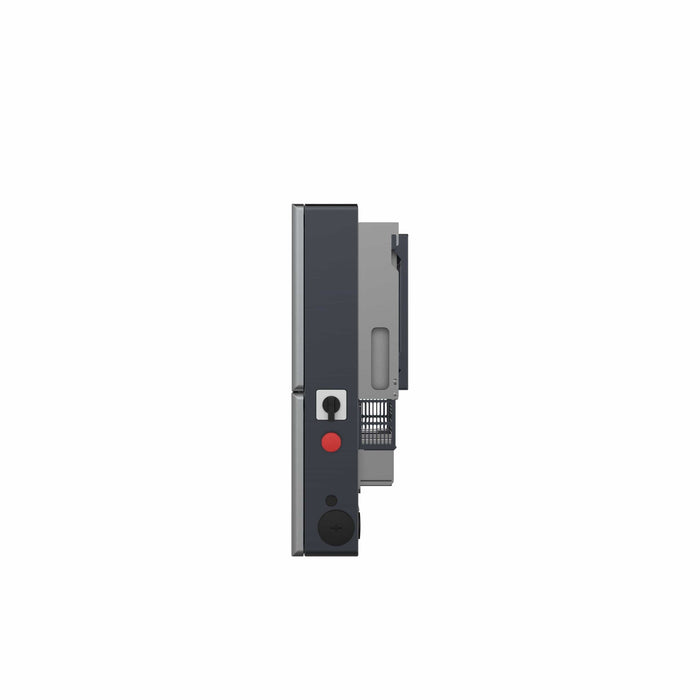

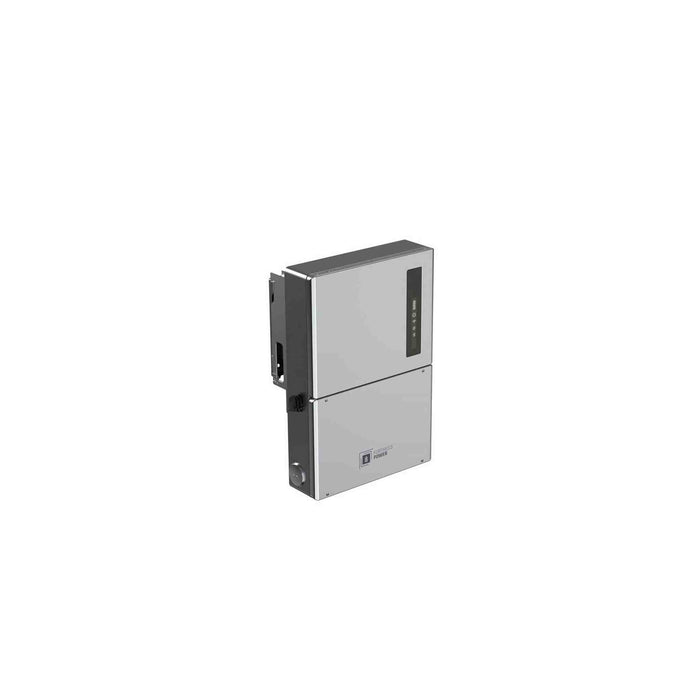

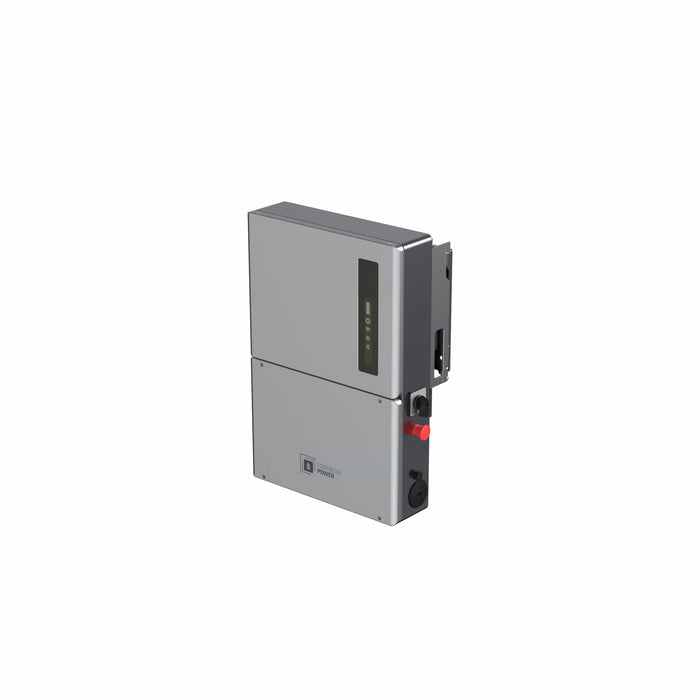

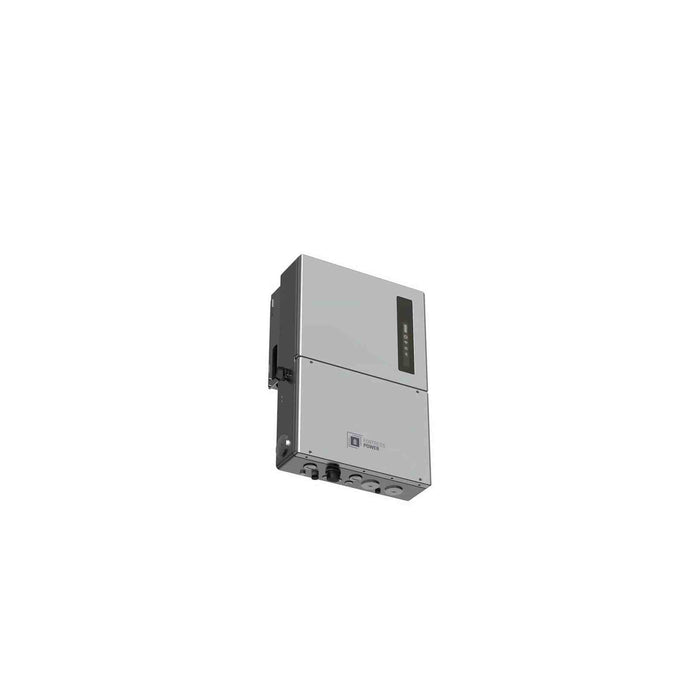

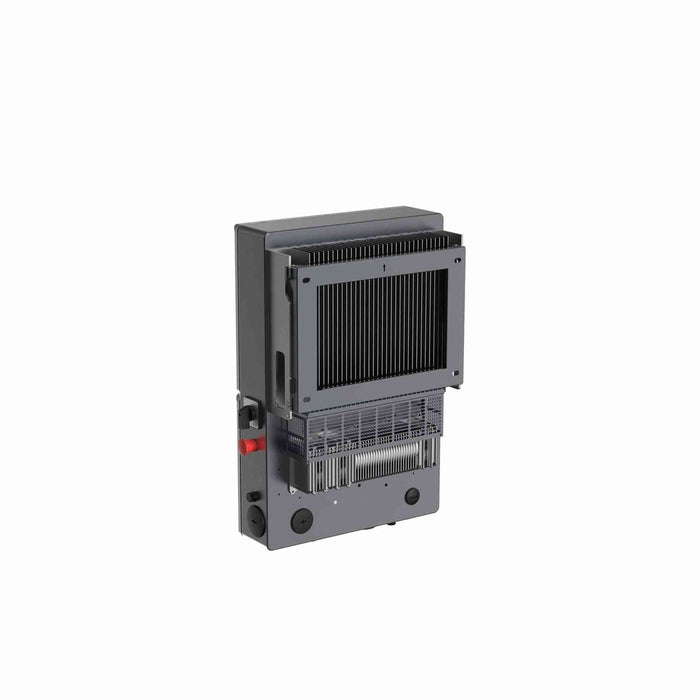

Fortress Power Avalon Hybrid Inverter – Intelligent Energy Management for Reliable Power
The Fortress Power Avalon Hybrid Inverter is a powerful and versatile energy solution designed to seamlessly integrate solar, battery storage, and grid power. Ideal for residential and commercial applications, this advanced inverter delivers efficient energy management, backup power, and grid independence while optimizing energy consumption for cost savings.
Key Features:
-
Hybrid Functionality – Combines solar, battery, and grid power for seamless energy management and maximum efficiency.
-
High Power Output – Delivers robust performance to support essential appliances and heavy loads.
-
Solar Integration – Works effortlessly with solar panels, maximizing self-consumption and reducing grid reliance.
-
Battery Compatibility – Optimized for Fortress Power Avalon batteries and other compatible 48V energy storage systems.
-
Reliable Backup Power – Automatically switches to battery mode during outages, keeping critical circuits running.
-
Smart Energy Monitoring – Real-time performance tracking and remote system control via user-friendly interface.
-
Grid-Tied & Off-Grid Operation – Supports both on-grid and off-grid setups for flexible energy solutions.
-
High Efficiency – Delivers industry-leading conversion efficiency, reducing energy loss and maximizing output.
-
Durable & Safe Design – Built with premium components for long-term reliability and safety.
- Easy Installation – Compact, modular design for quick setup and seamless system integration.
Specifications
DC Input (PV)
- max. input voltage: 600 V
- rated voltage: 380 V
- start-up voltage: 80 V
- MPPT voltage range: 80 - 520 V A
- max. input current per string: 16 A
- max. short circuit current per string: 25.6 A
- number of MPPTs/number of strings: per MPPT 4/1
AC Output: 7.6 / 11.4
- rated output power: 7.6 kW 11.4 kW
- max. apparent output power (grid): 7.6 kVa 11.4 kVa
- max. apparent output power (off -grid): 12.2 kVa, 10 sec 18.2 kVa, 10 sec
- rated output voltage (L1-L2): 240 V
- rated output voltage (L1/L2-N): 120 V
- AC output voltage range: 211 - 264 V
- rated frequency: 60 Hz
- frequency range: 55 - 65 Hz
- rated output current: 31.7 A / 47.5 A
- max. output current (grid): 31.7 A / 47.5 A
- max. output overcurrent, 10 sec (off -grid): 50.7 A / 76 A
- max. allowance phase configurations: 100 %
- backup support configurations: whole-home and dedicated loads
- power factor: >0.99 (0.8 leading - 0.8n lagging)
- THD: <3%
