Fortress Power | DuraRack
SKU DuraRack-Enclosure
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$1,250.00
$1,250.00
-
$1,250.00
Current price
$1,250.00
Overview

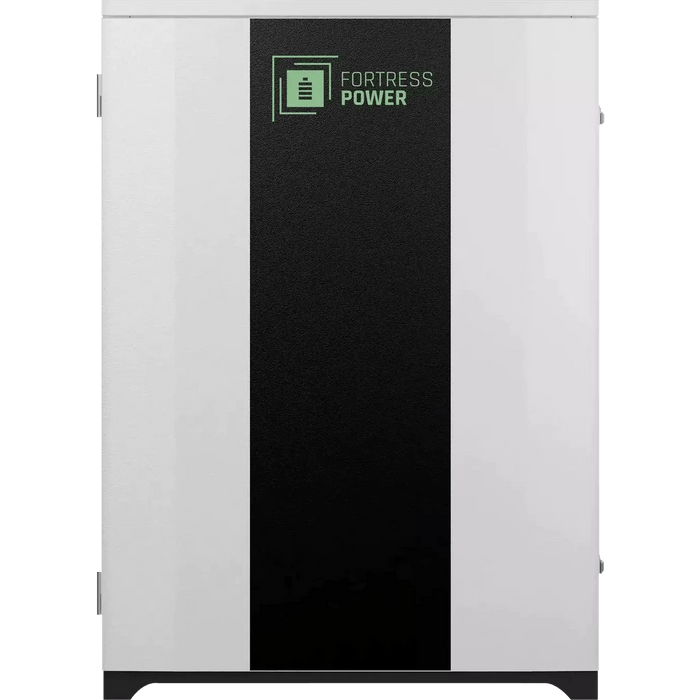

Boost your energy storage capacity with the Fortress Power DuraRack. This robust iron enclosure accommodates up to 4 eFlex 5.4kWh batteries and can be expanded to hold 4 units (totaling 15 eFlex batteries, equivalent to 81kWh). The DuraRack features built-in busbars and a mount for DIN rail heaters. It offers the flexibility of free-standing or pad-mounted installation and is suitable for both indoor and outdoor use.
Key Features
- IP65 rating for water and dust resistance, suitable for indoor and outdoor installation
- Integrated busbars and battery cables for convenient stacking
- Simple addition of DIN rail thermostat for cold climates
- Passive cooling vent designed for warm climates
- Expandable up to 4 units (15 eFlex batteries), totaling 81 kWh
Specifications
|
DuraRack Specifications
|
|
| Enclosure Material | Carbon Steel |
| Enclosure Protection | IP65 water and dust proven (outdoor) |
| Enclosure Color | White |
| Dimensions [W x H x D] | 29.29 x 41.34 x 18.03 in (744 x 1050 x 458 mm) |
| Enclosure Weight | 59.6 kg / 153.2 lbs |
| Maximum Battery Units | 4 eFlex 5.4 |
| Storage Capacity Range | 5.4kWh – 21.6 kWh per unit |
| Max. Storage Capacity | 81 kWh (4 unites in parallel) |
| Knockout Size | 1 inch & 2 inch |
| Positive and Negative Battery Busbars | 2 x 4 points; M8 (5/16) Terminal Rings |
| Positive and Negative Busbars to Inveter | 2 points; m10 (3/8) Terminal Rings |
| Battery Cables | 4 sets of |
| Terminal Torque | 7.0 – 7.7 Nm (5.1 – 5.7 ft-lb) |
| Enclosure Warranty | 3 Years |
| Certifications | UL9540, UL9540A, UL1973, CEC, SGIP |
