HomeGrid | Stack'd Integrated Series Cabinet
Overview

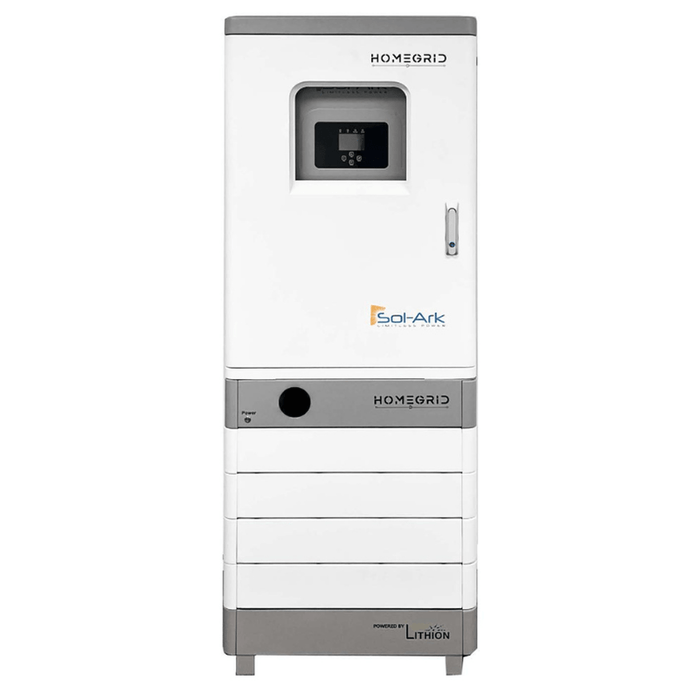

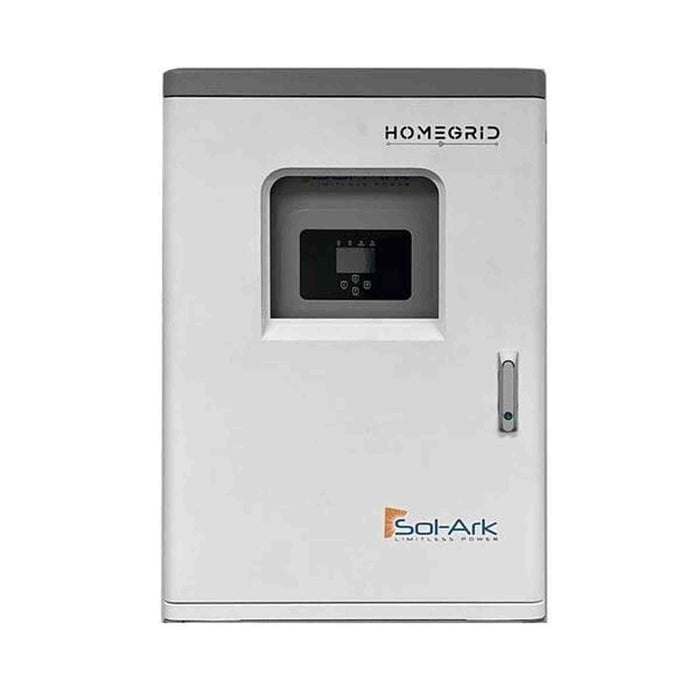

The HomeGrid Integrated Series is a compact, all-in-one energy storage solution designed for residential and small commercial applications. It combines a powerful lithium iron phosphate (LiFePO₄) battery system with a built-in hybrid inverter in a single, sleek cabinet—ideal for quick, space-saving installation and streamlined performance.
KEY FEATURES
- All-in-One Design: Combines battery and hybrid inverter in a single unit for simplified setup and maintenance.
- Expandable Capacity: Modular design allows for future capacity expansion as energy needs grow.
- 48V LiFePO₄ Battery: Offers safer, longer-lasting storage with up to 6,000 cycles and high thermal stability.
- Intelligent BMS: Integrated Battery Management System ensures efficient performance and safeguards against overcharging, overheating, and over-discharging.
- Seamless Backup Power: Delivers reliable energy for off-grid setups, load shifting, and full-home backup applications.
- Quick Installation: Plug-and-play setup with minimal wiring and configuration needed.
Specification
Modules | Capacity | Power | Surge (10s) | Weight | Height |
---|---|---|---|---|---|
2 | 9.6 kWh | 8.6 kW | 14.4 kW | 304 lbs | 25.25 in |
3 | 14.4 kWh | 12.9 kW | 14.4 kW | 412 lbs | 30.5 in |
4 | 19.2 kWh | 14.4 kW | 24 kW | 520 lbs | 35.75 in |
5 | 24 kWh | 14.4 kW | 24 kW | 628 lbs | 41 in |
6 | 28.8 kWh | 14.4 kW | 24 kW | 736 lbs | 46.25 in |
7 | 33.6 kWh | 14.4 kW | 24 kW | 844 lbs | 51.5 in |
8 | 38.4 kWh | 14.4 kW | 24 kW | 952 lbs | 56.75 in |
