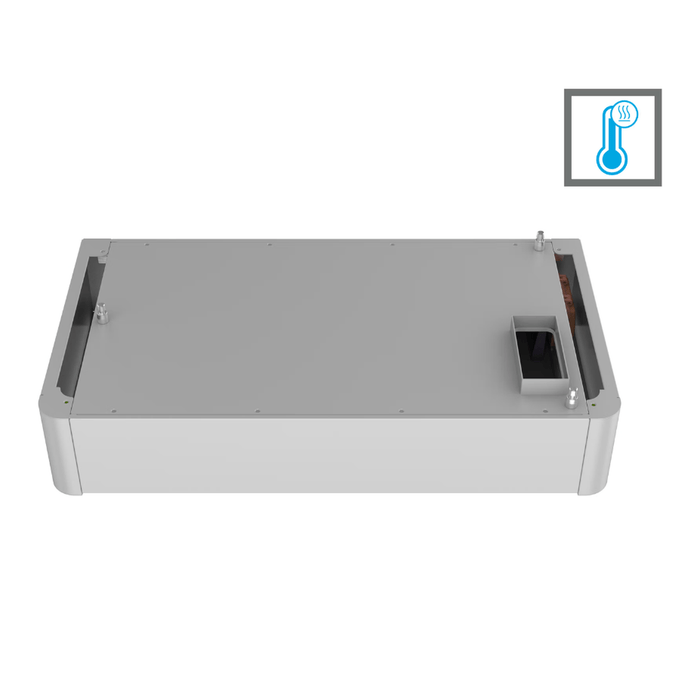

HomeGrid | Stack'd Heated Lithium Battery Module 4.8kwh 48VDC, Lithion Battery
Overview
With the highest output and capacity range available, the Stack’d Series battery is the right solution for residential and small commercial storage projects. From small off-grid cabins, to peak rate TOU (time-of-use) offset, family homes in suburbia, and small commercial projects, the HomeGrid Stack’d Series battery is the proven best choice.
KEY FEATURES
- Output: up to 14.4 kW continuous
- Surge: up to 24 kW (10 sec)
- Capacity: up to 38.4 kWh per Stack (576 kWh total)
- Install: <30 minutes
Specification
Modules | Capacity | Power | Surge (10s) | Weight | Height |
---|---|---|---|---|---|
2 | 9.6 kWh | 8.6 kW | 14.4 kW | 304 lbs | 25.25 in |
3 | 14.4 kWh | 12.9 kW | 14.4 kW | 412 lbs | 30.5 in |
4 | 19.2 kWh | 14.4 kW | 24 kW | 520 lbs | 35.75 in |
5 | 24 kWh | 14.4 kW | 24 kW | 628 lbs | 41 in |
6 | 28.8 kWh | 14.4 kW | 24 kW | 736 lbs | 46.25 in |
7 | 33.6 kWh | 14.4 kW | 24 kW | 844 lbs | 51.5 in |
8 | 38.4 kWh | 14.4 kW | 24 kW | 952 lbs | 56.75 in |
