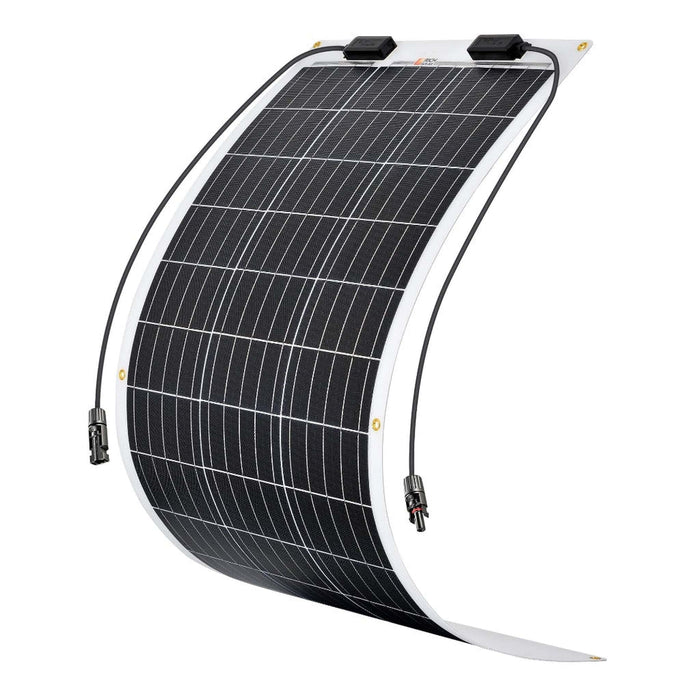

Rich Solar | MEGA 100 FLEX | 100 Watt Flexible Solar Panel | Lightweight 12V Flexible Solar Panel | High Efficiency

Overview

Features

• Lightweight: 4.8 lbs
• Thickness: 0.1 in
• Flexible up to 30 degrees
• Stainless steel grommets in the panel
• Easy and low-cost installation
• One year warranty

Ideal for

• Vans, trailers, overlanders, boats
• Utility service vehicles

• Curved roofs
• Outdoors
• Backup power

Built-in Components

• RICH SOLAR 100-watt flexible monocrystalline solar panel
• Panel leads (pair): 24 in each
• IP67 Rated waterproof junction box
• IP67 Rated waterproof solar connectors
• Bypass diodes built into the junction box

Specification

• Maximum Power (Pmax): 100W
• Maximum Power Voltage( Vmp): 18.9V
• Maximum Power Current (Imp): 5.29A
• Open Circuit Voltage (Voc): 22.8V
• Short Circuit Current (Isc): 5.59A
• Maximum System Voltage (Vmax): 1000VDC
• Temperature Range: -40 ~ +85°C
• Weight: 4.8lb
• Dimensions: 40.6 x 21.3 x 0.1(0.8) in
