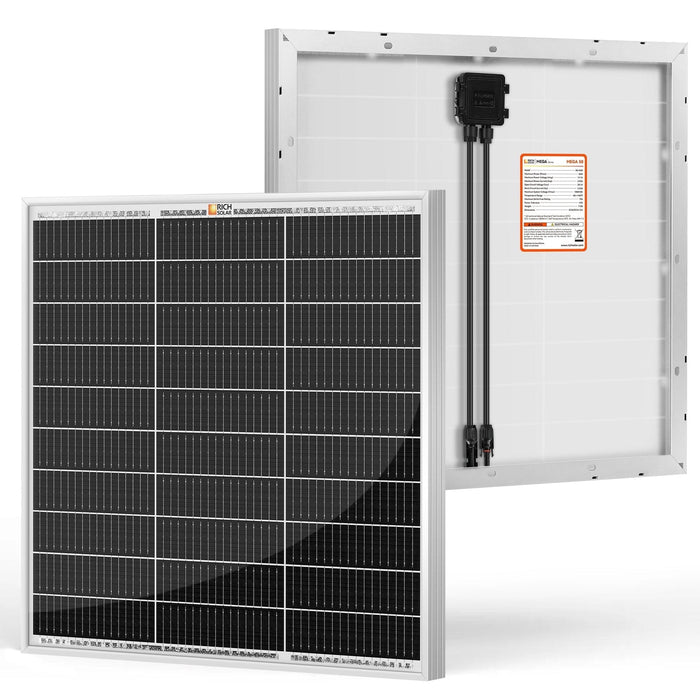

Rich Solar | MEGA 50 | 50 Watt Solar Panel | Compact 12V Off-Grid Solar Panel for Boats, Vans, Trailers | 25-Year Output Warranty | UL Certified
Overview
Features
- 12V off-grid solar panel.
- 0~+5W guaranteed positive power output.
- IP 65 or IP 67 rated.
- Built with strong tempered glass and aluminum frame.
- Certified to withstand challenging environmental conditions.
- Excellent low-light performance on cloudy days, mornings, and evenings.
Installation
- Easy installation and handling for various applications.
- Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts, and tilt mounts.
- Compatible with on-grid and off-grid inverters.
Warranty
- 25-year power output warranty
-
10-year workmanship warranty
Built-in Components
- 50W Solar Panel
- Panel Leads (Pair): 12AWG 2FT
- IP65-rated waterproof junction box
- IP67-rated waterproof solar connectors
Specifications
- Maximum Power(Pmax): 50W
- Maximum Power Voltage(Vmp): 17.1V
- Maximum Power Current(Imp): 2.92A
- Open Circuit Voltage(Voc): 20.1V
- Short Circuit Current(Isc): 3.22A
- Maximum System Voltage(Vmax): 1000VDC
- Maximum Series Fuse Rating: 10A
- Weight: 7.5 lb
- Dimensions: 22.8x20.5x1.2in
