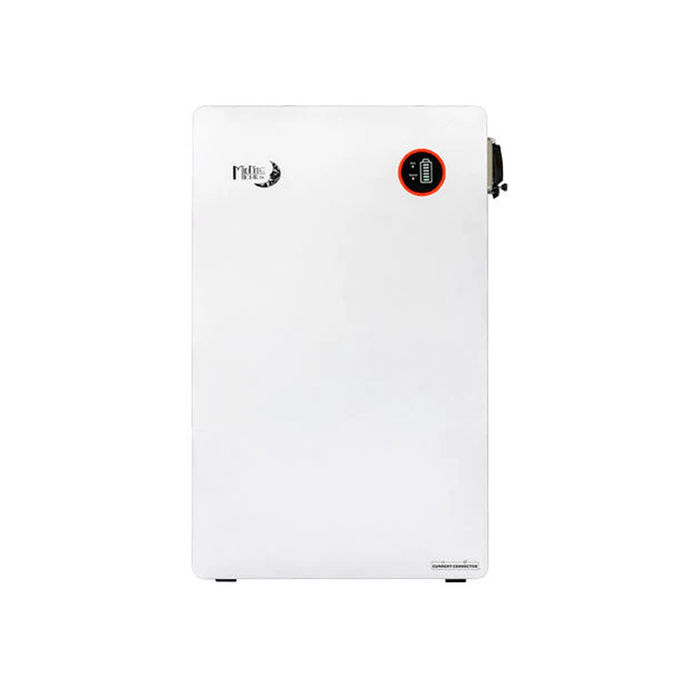

Midnite Solar | POWERFLO 16kWh Wall/Floor Mount, Lithium Battery - 48 Volt 314 AH
POWERFLO 16 kWh, 48 Volt 314 AH, Wall/Floor Mount, Lithium Battery
The MidNite MNPowerflo16 is a high-capacity LiFePO₄ energy storage unit engineered for longevity, adaptability, and intelligent system integration. Suitable for either wall or floor installation, this 48V, 314Ah battery is built for residential and light commercial applications that require dependable and expandable storage.
Using premium-grade A+ EVE lithium cells and equipped with an internal heating feature, the MNPowerflo16 maintains stable operation even in low-temperature environments. It offers true closed-loop communication with MidNite’s MNROSIE and MN15-12K-AIO inverter platforms and communicates through the widely supported Pylontech protocol, making it compatible with numerous third-party inverter brands.
With full connectivity to the MidNite Pro app, users gain centralized visibility of their entire system—including the battery, inverter, charger, MPPT controllers, and loads—either on-site or through remote cloud access.
Key Features
Quick, Simple Installation
Automatic configuration eliminates dip switches and manual setup, enabling a smooth plug-and-play experience.
Smart Closed-Loop Operation
Optimized integration with MidNite MNROSIE and MN15-12K-AIO inverters for coordinated performance and system protection.
Integrated Heating Module
Maintains safe charging and operation in colder climates, protecting overall battery life and stability.
A+ Grade EVE LiFePO₄ Cells
High-quality cells deliver enhanced lifespan, improved safety, and consistent power output.
Versatile Mounting Options
Can be installed on a wall or set on the floor for efficient use of space in various system designs.
Pylontech Protocol Support
Uses an industry-standard communication protocol for broad compatibility with modern inverter systems.
MidNite Pro App Connectivity
Monitor system metrics in real time—battery status, inverter functions, MPPTs, loads, and charging—locally or through remote access.
Upgradeable Firmware
Supports ongoing firmware updates for both the battery and inverter, ensuring access to the latest features and improvements.
What's Included
- 1x POWERFLO 16 kwh Battery
- 1 x Electric Insight tHome Communications Device
Specification
- 51.2V Nominal
- 314Ah capacity
- Absorb Voltage 56.4V, Absorb Time 5 minutes, Float Voltage 54V
- 16,076Wh capacity
- LFP Lithium Iron Phosphate
- 8000 Cycles @ 77F (25C), 0.5C / 0.5C
- Operating Voltage 46.4 to 57.6 Volts
- Heated for cold climates
- Heater power 7.8A, On around 2C, Off around 10C
- Communication using Can / RS485 / RS232
- Stack up to 16 units
- =< 35mA idle draw
- Nominal Discharge Current 160A
- Nominal Charge Current 160A
- Max Discharge Current 210A
- Outdoor or Indoor rated, IP65
- Operating Temperature -4F to 122F (-20C to 50C)
- Storage Temperature 14F to 113F (-10C to 45C)
- Max Altitude 9,843 feet (3,000 m)
- Natural convection cooling
- Wall or Floor mount installation
- Active Balancing
- Compliance UL 1973,UL 9540A,UL9540
