Rich Solar | NOVA 8K | 8000 Watt (8kW) 48V Split Phase Hybrid Inverter | 8000W PV Input, 6000W Continuous Output 120/240V

NOVA 8K | 8000 Watt (8kW) 48V Split Phase Hybrid Inverter | 8000W PV Input, 6000W Continuous Output 120/240V

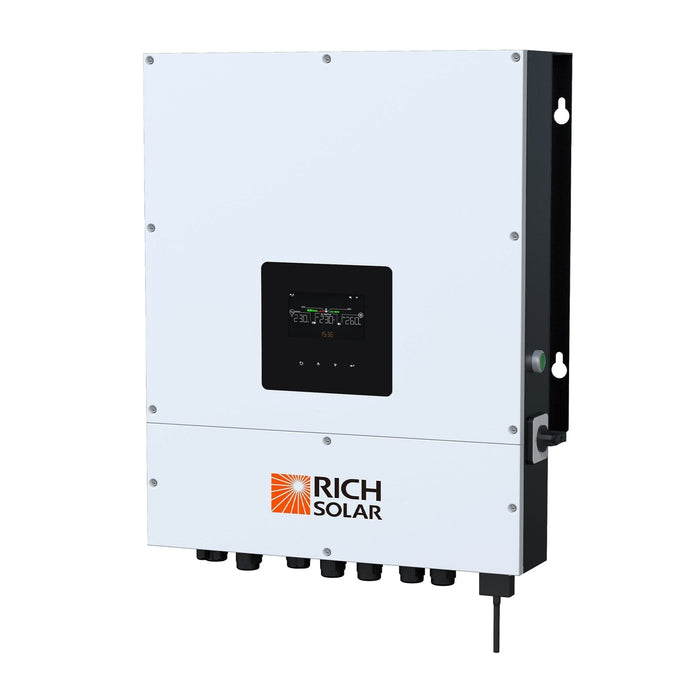

The NOVA 8K is a high-performance 48V split-phase hybrid inverter engineered for whole-home energy systems, off-grid setups, and backup power applications. With robust 8000W PV input and 6000W continuous output, this inverter is built for maximum efficiency, smart energy control, and seamless integration with batteries, solar panels, and the utility grid.

Key Features

• IP65 Waterproof & Dustproof Protection
  Designed for both indoor and outdoor use, the NOVA 8K performs reliably under various environmental conditions.

• Dynamic RGB LED Display
  Built-in LED bar with configurable colors for at-a-glance system status monitoring.

• Integrated Wi-Fi Connectivity
  Enables remote monitoring and control via a dedicated mobile app.

• Generator & Emergency Load Ready
  Features a built-in alternative port for direct connection to backup generators or critical load circuits.

• External CT Sensor (Optional)
  Supports full self-consumption optimization, allowing precise load management and zero export to the grid when needed.

• Flexible Power Priority Settings
  Programmable logic lets users select priority between PV, battery, or grid power sources based on system needs.

• Advanced Battery Communication
  Built-in RS485 communication port for seamless integration with compatible BMS-equipped lithium batteries.

• Customizable Charging Parameters
  User-adjustable voltage and current settings accommodate a wide range of battery chemistries and system requirements.

• Scalable for Larger Systems
  Supports parallel operation of up to 6 units for increased power output and system redundancy.

Specifications

Tech Specs

• Maximum PV Input Power: 7500W
• Rated Output Power: 6000VA/6000W
• PARALLEL CAPABILITY: Yes, 6 units


INPUT

• Maximum DC Voltage: 600VDC
• Start-up Voltage/initial Feeding Voltage: 120VDC/160VDC
• MPPT Voltage Range: 120VDC-550VDC
• Frequency Range: 50Hz / 60Hz (Auto detection)

OUTPUT

• Output Voltage Waveform: Pure Sine Wave
• Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
• Output Voltage Range: 105.5-132VAC per phase
• Nominal Output Current: 25A per phase

BATTERY

• Battery Voltage: 40-62 VDC
• Maximum Charging Current: 120A
• Efficient(DC to AC): 91%

OPERATING ENVIRONMENT

• Operating Temperature Range: -25°C to 60°C(>45°C derating)

PHYSICAL

• Dimension: 8.5x20.3x27.6in / 215.5x515x700mm (with extension box)
• Net Weight : 90.4lb / 41kg
