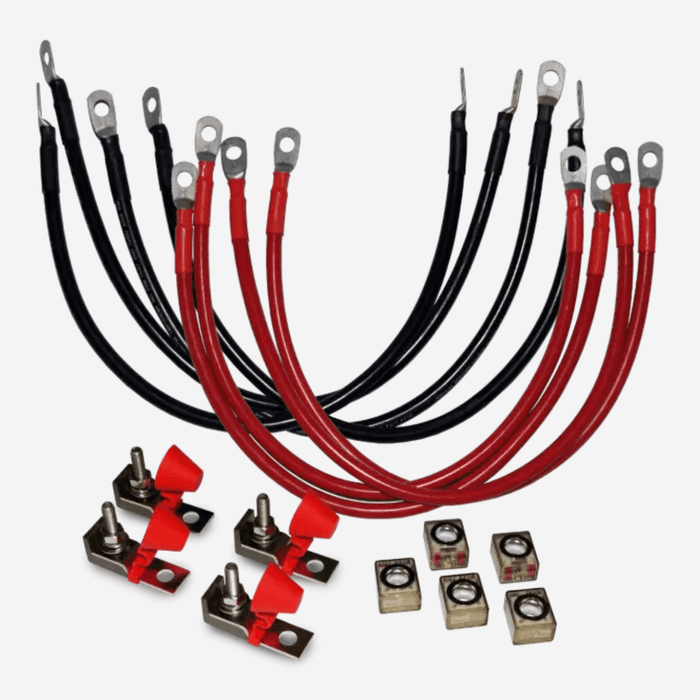

Parallel Wiring Kit with Safety Fuse Protection
Supports Up to 4 Batteries – Compatible with 12V to 48V Systems
Expand your battery capacity with confidence using the Parallel Wiring Kit with Safety Fuse Protection. This kit allows you to connect up to four Dakota Lithium batteries in parallel, maintaining the same voltage (12V, 24V, 36V, or 48V) while increasing the total amp-hour (Ah) capacity. For example, connecting four 12V 100Ah batteries in parallel results in a powerful 12V 400Ah system—ideal for RVs, boats, solar applications, and off-grid energy systems.
Engineered for safety and reliability, this heavy-duty wiring kit includes high-amp rated cables and individual fuse isolation blocks for each battery. Combined with each battery’s built-in Battery Management System (BMS), the added fuse protection enhances overall system safety by isolating faults to a single unit, preventing widespread electrical issues.
What This Kit Offers
-
Parallel wiring capability for up to four batteries
-
Heavy-duty cables designed for high-current applications
-
Individual fuse protection for each battery connection
-
Supports 12V, 24V, 36V, and 48V configurations
-
Improves safety and minimizes the risk of damage from short circuits or overloads
-
Plug-and-play design for quick, reliable setup
Specifications
Product Specs & Details
Battery Connections
Equipped with ring terminals designed to connect seamlessly with all Dakota Lithium batteries (23Ah and above) across 12V to 48V systems.
Wire Gauge
Heavy-duty 6 AWG wire for high-current applications.
Wire Length
Each cable segment measures 18 inches for easy and flexible installation.
Compatibility
Supports up to 4 Dakota Lithium batteries wired in parallel (12V–48V). Compatible with any DL battery 23Ah or larger.
Manufactured In
Minnesota, USA by Connect-Ease.
Built-In Fuse Protection
Every Dakota Lithium battery includes an internal BMS (Battery Management System) for core protection. This kit adds an additional safety layer by including isolation fuses for each battery.
-
(4) Fuse blocks with fuses (rated at 150A / 58V)
-
(1) Spare fuse included
-
Standard fuse format allows for easy replacement or customization
This setup is designed to help isolate faults and prevent system-wide issues, especially in high-load or harsh conditions—delivering safer, more resilient battery performance with minimal added effort.
