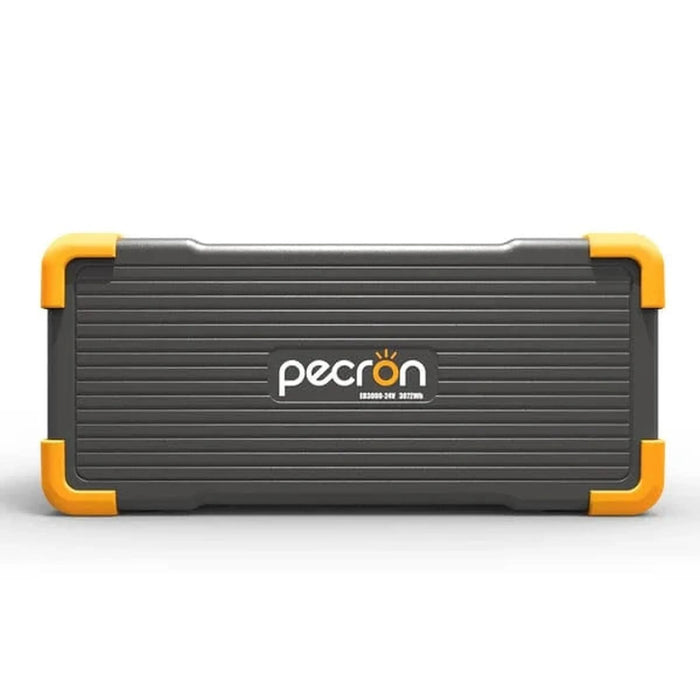

PECRON | EB3000-24V 3072Wh Expansion Battery for E2000LFP
Overview
The Pecron EB3000-24V Expansion Battery adds 3072Wh of LiFePO₄ storage to your Pecron E2000LFP power station, offering over 3,500 life cycles and support for solar, AC, or car charging. It features multiple DC, USB-C, and USB-A outputs and can function as a standalone DC power source—perfect for extending runtime during home backup, camping, or off-grid use.
KEY FEATURES
-
High-Capacity LiFePO₄ Battery: Boasts a 3072Wh capacity with over 3,500 life cycles to 80% capacity, ensuring long-term reliability.
-
Expandable Energy Storage: Connect up to two EB3000-24V units to the E2000LFP power station, achieving a total capacity of up to 8064Wh.
-
Versatile Charging Options:
-
Solar Input: Supports up to 400W (12V–95V) via built-in MPPT charge controller.
-
AC Adapter & Car Charging: Compatible with standard AC adapters and car charging ports.
-
-
Multiple Output Ports:
-
DC Output: 1×12V XT60 (30A max).
-
USB-C: 1×100W PD.
-
USB-A: 1×18W.
-
Car Charging Port: 1×12V/10A.
-
-
Standalone Functionality: Can operate independently as a DC power source, providing flexibility for various applications.
-
Robust Build: Constructed with UL-certified automotive-grade LiFePO₄ cells and integrated Battery Management System (BMS) for enhanced safety and durability.
What's Included
- Pecron EB3000-24V *1
- Cable from XT60 to Cigar port and 5525 port *1
-
MC4 port to 5-pin Solar Charging Cable(LSMC4-5GX16) *1
- M25 Cascade cable *1
- Solar Cable with 5521 Connector *1
- Anderson Solar Charging Cable *1
- Car charge cable with GX16MF-5 connector *1
- 12V Alligator Clips *1
Specification
- Capacity: 3072Wh （25.6V/120Ah）
- Battery Type: LiFePo4
- Input: AC Adapter charging /Solar charging / Car charging
- AC Adapter Input: 100Vac~120Vac .Output：42V⎓15A
- Solar Input: Voc 12V~95V / 400W Max / 15A Max
- Car Input: DC 12V~95V-100W（Max）
- DC Output: 1x12V XT60 (30A Max) ; 1xUSB-C ; 1xUSB-A
- USB Output: 1 x 100W PD, 1 x 18W
- Battery Type: LiFePO4
- Weight: 57.3lbs(26KG)
- L441*W312*H200mm；L17.3xW12.2xH7.8in
- Charge Temperature: 0°C~45°C / 32°F-113°F
- Discharge Temperature: -20°C~45°C / -4°F-113°F
