Rich Solar | 400W Solar Kit for RV, Cabin, and Off-Grid Power Systems
Rich Solar | 400W Solar Kit for RV, Cabin, and Off-Grid Power Systems
The Rich Solar 400W Solar Kit offers a reliable and efficient solution for off-grid energy needs. Designed for RVs, cabins, and backup applications, it delivers consistent solar power for charging batteries and running essential devices. With durable components and straightforward installation, this kit is ideal for users seeking dependable performance and energy independence in both mobile and stationary setups.
KEY FEATURES
MEGA 200 Watt Solar Panel
- Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.

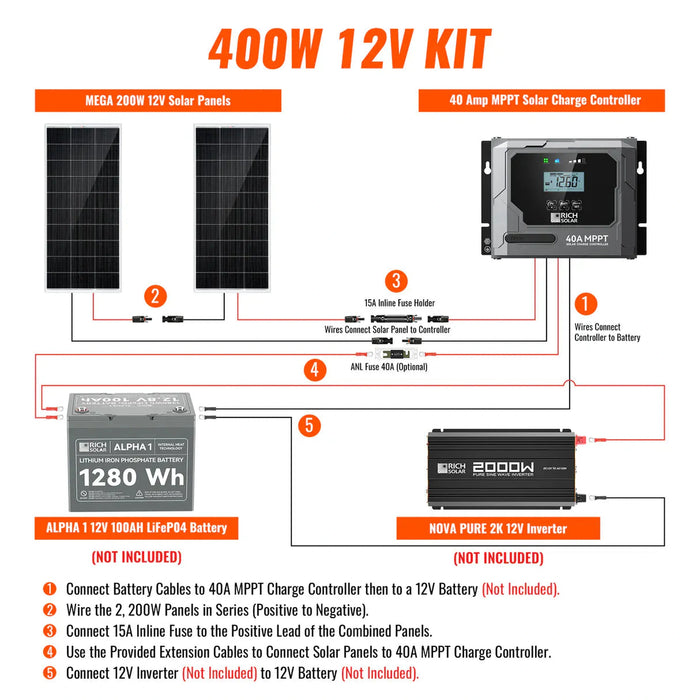

Installation:

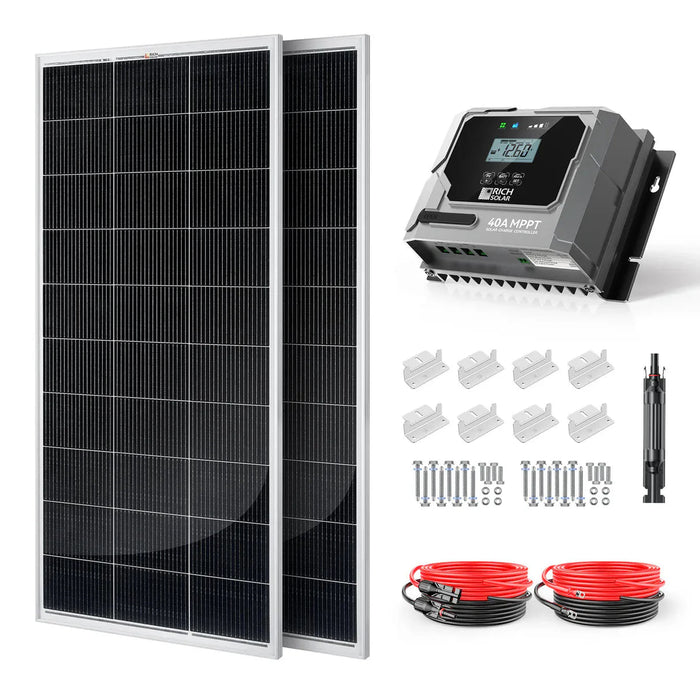

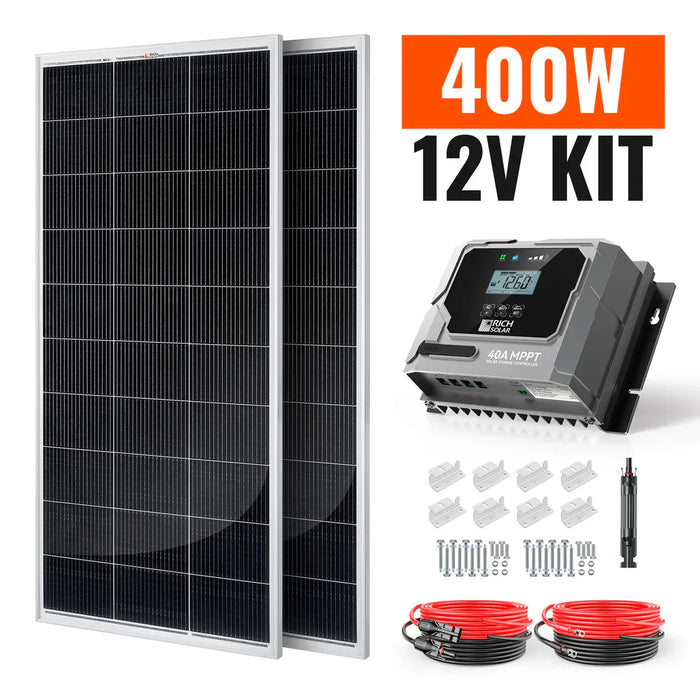

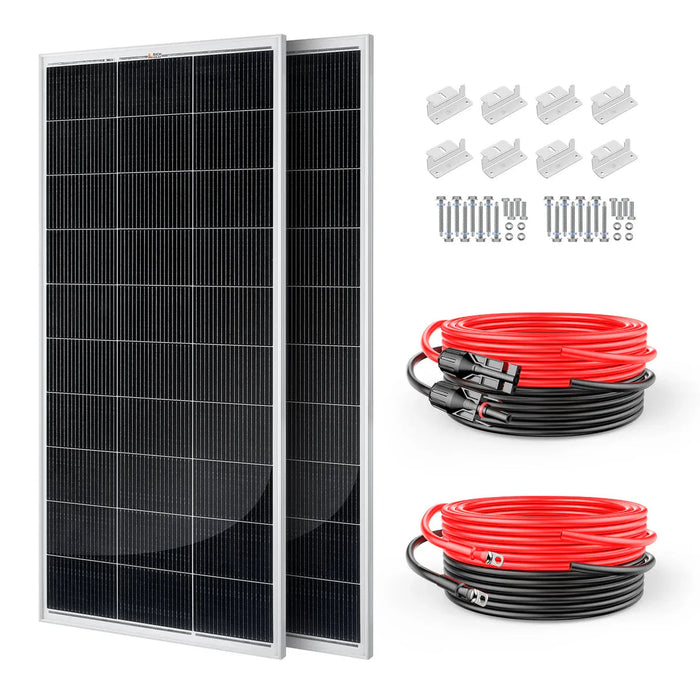

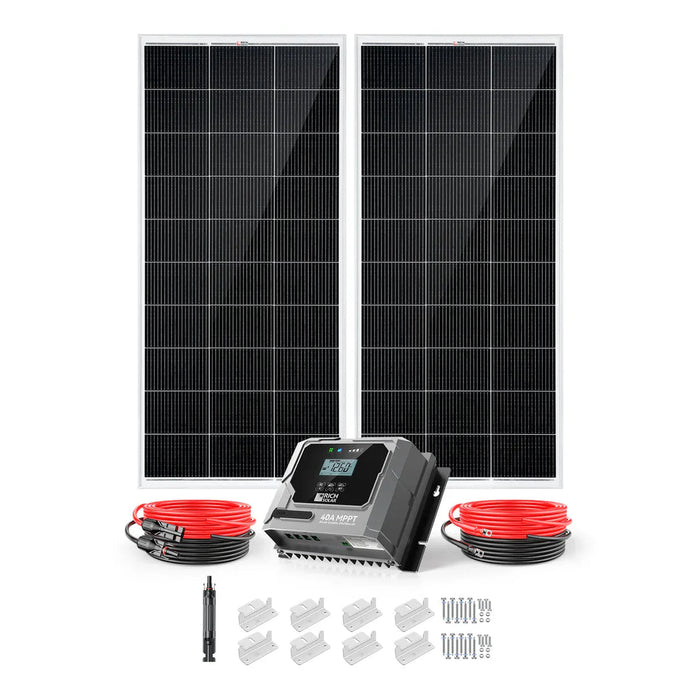

What's Included
- 2 x 200 Watt Monocrystalline Solar Panel(RS-M200)
- 1 x 40A MPPT Solar Charge Controller(RS-MPPT40P)
- 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller(RS-20101)
- 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller(RS-20101)
- 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
- 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
- 2 x Mounting Z Brackets (one set of 4)(RS-ZB4C)
- 1 x 15A Inline Fuse Holder with Fuse(RS-SC15F)
Specifications
MEGA 200 Watt Solar Panel Specifications
| Maximum Power (Pmax) | 200W |
| Maximum Power Voltage (Vmp) | 18.4V |
| Maximum Power Current (Imp) | 10.9A |
| Open Circuit Voltage (Voc) | 21.8V |
| Short Circuit Current (Isc) | 11.6A |
| Temperature Range | -40 ~ +185°F |
| Maximum Series Fuse Rating | 15A |
| Weight | 24 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
BRAVO 40 Amp MPPT Solar Charge Controller Specifications
| System Nominal Voltage | 12/24V Auto |
| Max PV Open Circuit Voltage | 100VDC |
| Charging Technology | MPPT |
| Max PV Charging Current | 40A |
| Max Recommended PV Input Power | 600W (12V) / 1200W (24V) |
| Battery Type Preset | Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Housing Case Color | Black / Grey |
| IP Grade | IP43 (Inside PCBA), IP22 (Connection Area) |
| Net Weight | 1.17 kg / 2.58 lb |
| Dimensions (L×W×H) | 195 × 142 × 74 mm / 7.7 × 5.5 × 2.9 in |
