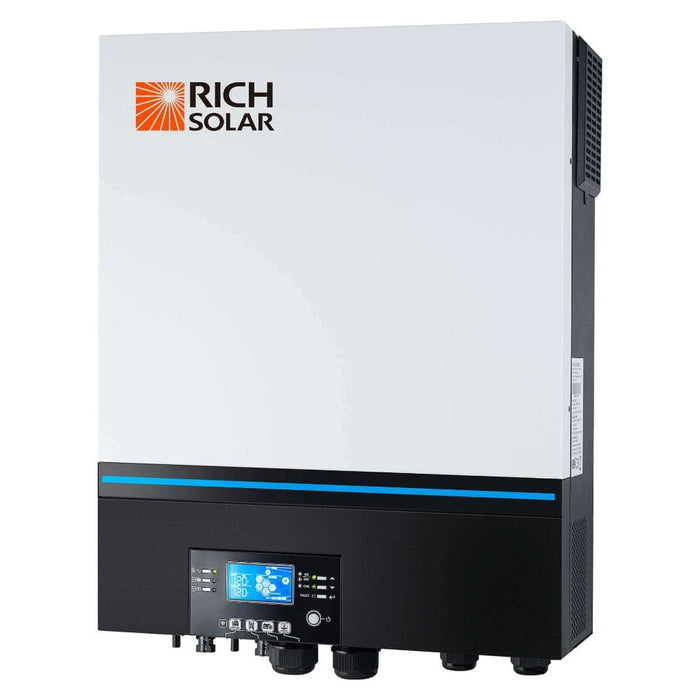

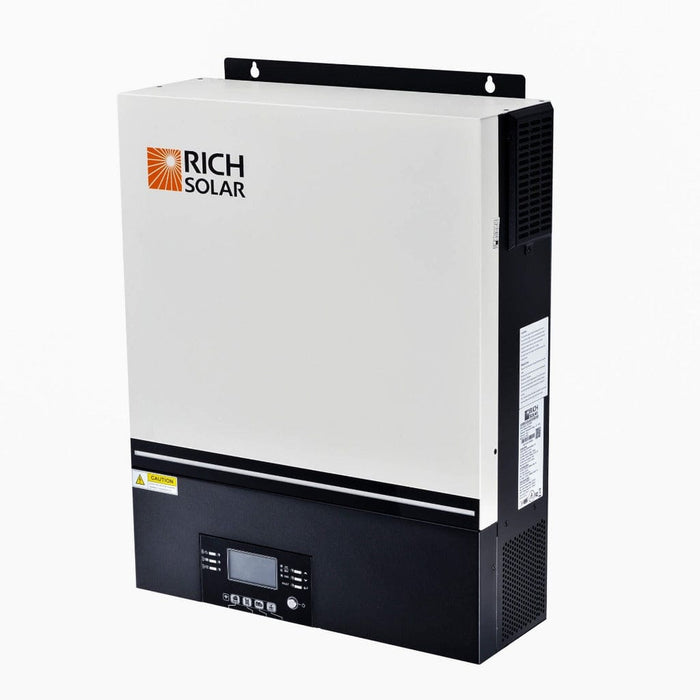

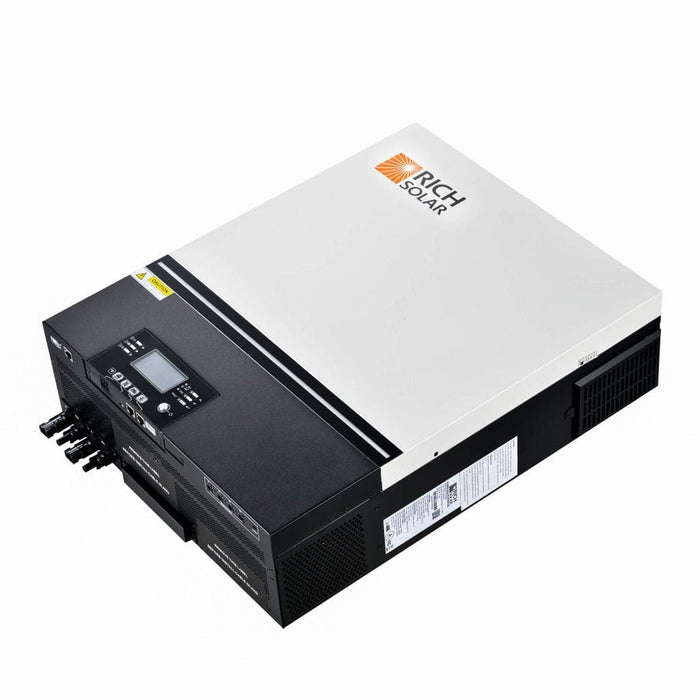

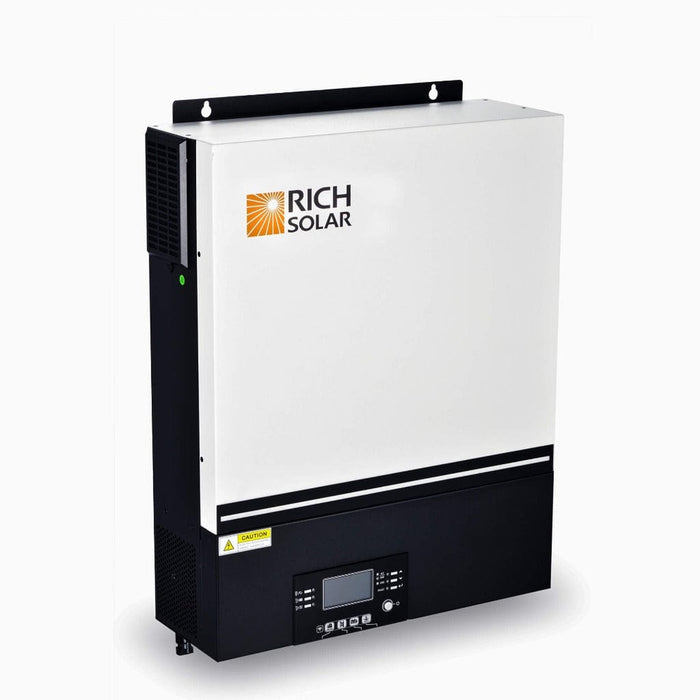

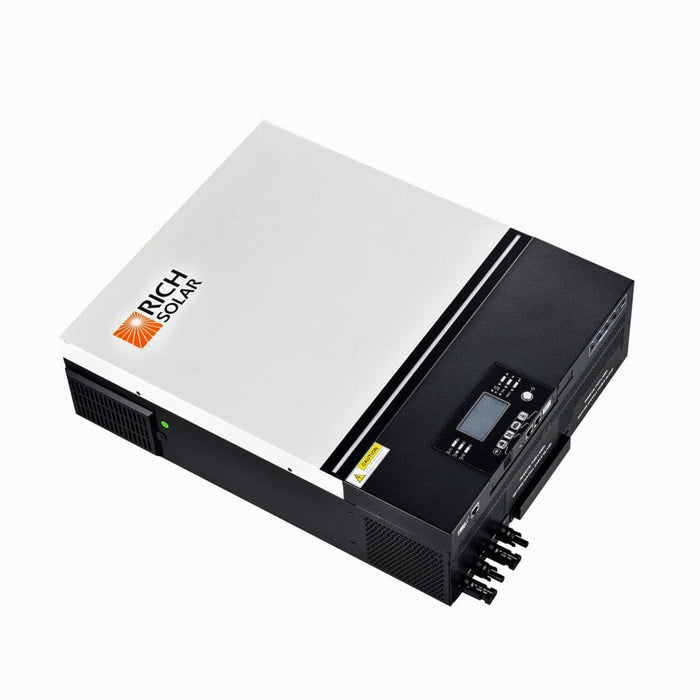

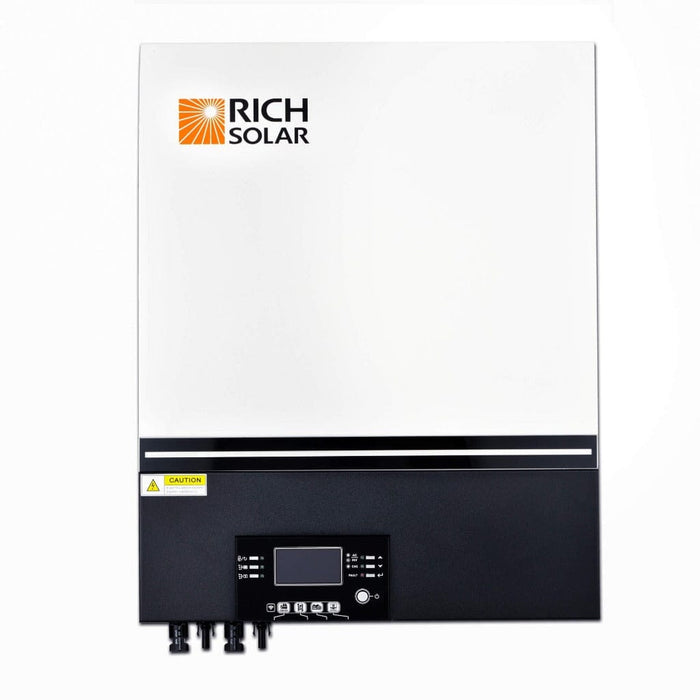

Rich Solar | NOVA 6548 – 6500W 48V Off-Grid Hybrid Inverter | UL Certified

The NOVA 6548 is a 6500 Watt (6.5kW) 48 Volt Off-Grid Hybrid Solar Inverter engineered for high-performance energy management. Whether you're powering an off-grid home, RV, or backup system, this premium hybrid inverter delivers reliable, efficient power with flexible configurations and smart features.

FEATURES

• Pure Sine Wave Output – Stable and clean energy for sensitive electronics

• Built-in RGB LED Bar – Customizable color display for system status at a glance

• Integrated Wi-Fi – Enables real-time mobile monitoring (mobile app required)

• USB On-the-Go Support – Simplifies firmware updates and data transfers

• Anti-Dust Kit – Protects internal components in harsh environments

• Detachable LCD Control Module – Allows remote operation and multiple communication ports (RS485, CAN-BUS, RS232)

• Custom Input Voltage Range – Adjustable for home appliances and PCs

• Output Timer & Prioritization – Configure AC/PV output usage based on your needs

• Charger Priority Settings – Choose AC or solar charging priority via LCD panel

• Adjustable Charging Current – Fine-tune for specific battery requirements

• Utility or Generator Compatible – Flexibility to connect to any AC source

• Auto Restart – System automatically restarts when AC power returns

• Built-In Protections – Overload, over-temperature, and short circuit protection

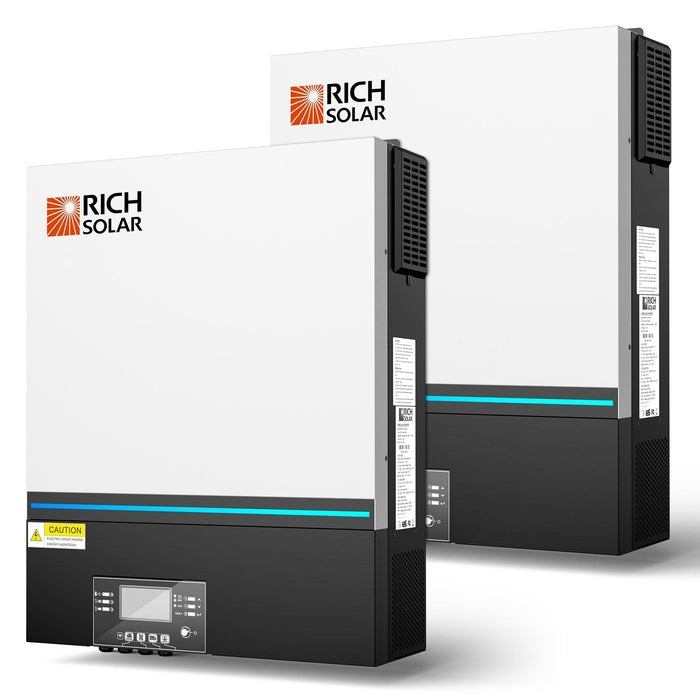

• Parallel Operation – Scale your system by connecting up to 6 units

• Smart Battery Charger – Maximizes battery health and performance

• Cold Start Function – Power up the inverter without external AC input

How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations

When Not to Update the Firmware on the 6548 Hybrid Inverter

Specifications

Tech Specs

Model: RS-H6548
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

• Voltage: 120 VAC
• Selectable Voltage Range: 90-140 VAC (For Computers)
• 80-140 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 120VAC ± 5%
• Surge Power: 15000VA
• Efficiency (Peak): 90% ~ 93%
• Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform: Pure Sine Wave
• No Load Power Consumption: <70W
• Optional DC Voltage: 12 VDC ± 5%, 100W
• Dual Outputs: Yes

BATTERY

• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (4000W x 2)
• MPPT Operating Voltage Range: 90 ~ 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 120A
• Maximum Charge Current: 120A

PHYSICAL

• Dimension(D X W X H): 5.8 x 17.0 x 21.8 in
• Net Weight: 40.6 lb
• Communication Interface: USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

• Humidity: 5% to 95% Relative Humidity(Non-condensing)
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C

STANDARD

• Compliance Safety: UL
