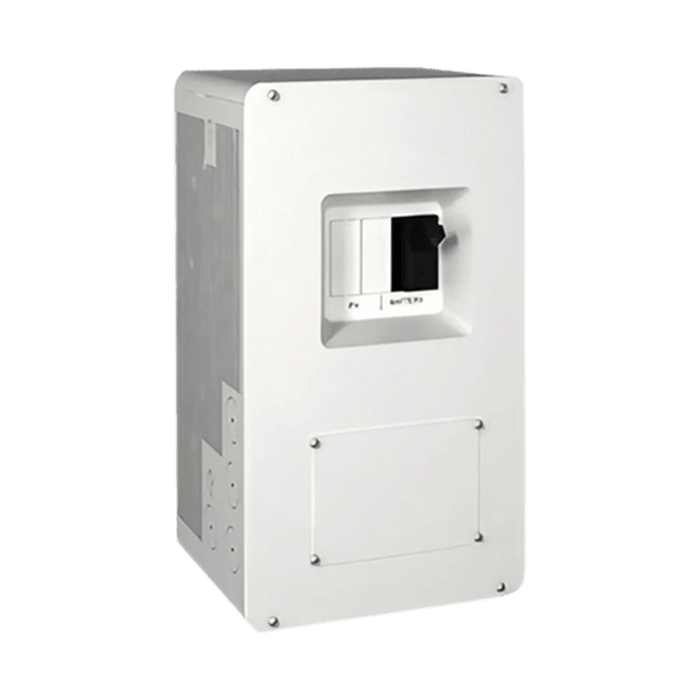

Schneider Electric | Conext SW Inverter DC Breaker Panel (Switch Gear)
Overview
The universal DC Breaker Panel is pre-wired for fast installation and ensures a secure and code-compliant connection to the battery bank and solar charge controller with only one Conext SW. A DC shunt, two battery breakers, and two breaker connections to MPPT 60-150 solar charger controllers are all included in the DC Breaker Plate.
What's Included
- (1) Distribution Panel Box
- (1) Distribution Panel Cover
- (1) 250A DC Breaker (pre-installed)
- (1) Positive copper bus bar (pre-installed)
- (1) Negative copper bus bar (pre-installed)
- (1) Mounting bracket
- Expansion position available for (2) DC breakers
Specification
Electrical Specifications | ||
Product Dimensions (H x W x D) |
42.1 x 24.0 x 20.0 cm 16.57 x 9.45 x 7.87 in |
|
Shipping Dimensions (H x W x D) |
47.5 x 29.7 x 26.0 cm 18.7 x 11.7 x 10.24 in |
|
Shipping Weight | 9.0 kg / 20.0 lbs |
