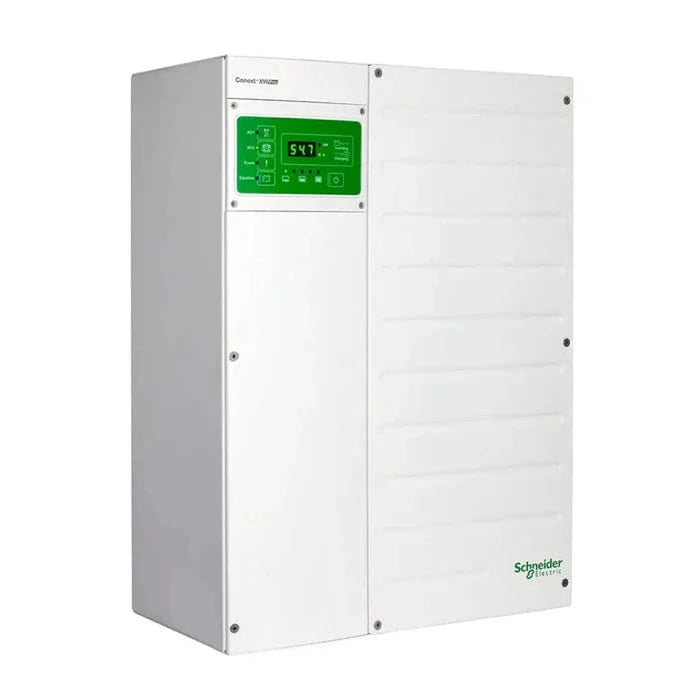

Schneider Electric | Conext XW PRO 6848, 6800W Inverter/Charger 120/240VAC
Overview
The Schneider Electric Conext XW Pro is a versatile, high-performance hybrid inverter/charger engineered to meet modern energy demands and evolving grid standards. Designed as the central component of your home power system, the XW Pro seamlessly integrates solar, battery storage, and utility grid connections to deliver reliable backup power, energy independence, and long-term resilience.
Featuring a split-phase 120/240V output, a single XW Pro inverter delivers up to 6.8 kW of power, and systems can be expanded by paralleling up to four inverters, supporting up to 27.2 kW of total output. Whether you're building a grid-tied system with battery backup or going fully off-grid, the XW Pro’s flexible and efficient design makes it an ideal solution.
KEY FEATURES
Backup Power and Off-Grid Performance
- Reliable operation of backup power and off-grid loads with a high overload power rating
- Seamless transition to backup power with an integrated high-speed transfer switch
- Grid and generator input ports
Designed for Reliability
- Extensive quality and reliability testing
- Highly Accelerated Life Testing (HALT)
- Globally proven and recognized field performance
Flexible
- Single or split-phase systems from 7.0 kW to 102 kW
- Supports DC coupled and AC coupled off-grid and grid-tie architectures
- Supports charging of Lithium Ion battery pack integration
- Grid tied and off-grid, Rule 21, HECO Rule 14H and PREPA compliant
Easy to Service
- Field serviceable with replacement boards and spare parts
- Monitor, troubleshoot or upgrade firmware with Conext Gateway
Easy to Install
- System configures quickly into compact wall-mounted system
- Integrates both grid and generator power with dual AC inputs
- Balance of system components integrates battery bank, solar charge controllers and generators
- Commission the entire system with Conext Gateway and Conext Insight 2
Specification
- Continuous Output Power at 25ºC (77ºF): 6,800 Watts
- Overload Power (30 min / 60 sec) 25ºC (77ºF) : 8,500 / 12,000 Watts
- Continuous Output Power at 40ºC (104ºF): 6,000 Watts
- Output AC Frequency: 50/60 Hz (selectable)
- Max. Output Charging Current: 140 Amps (battery temp. sensor is included)
- Peak Efficiency: 95.7%
- Weight: 121.7 lbs.
- Dimensions (H x W x D): 23" x 16" x 9"
- Regulatory Approval: UL1741, CSA 107.1, FCC & Industry Canada Class B, IEEE 1547 and CSA 107.1
