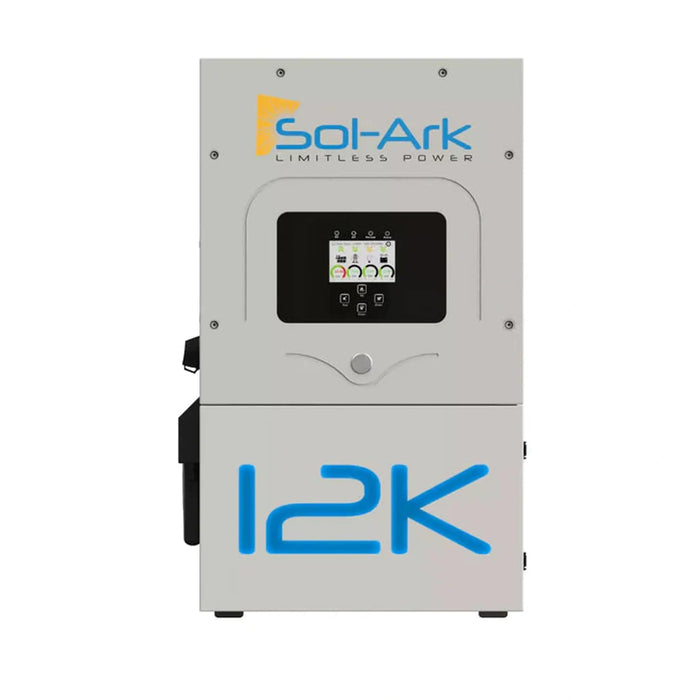

Sol-Ark 12K EMP Hardened Hybrid Inverter

The Sol-Ark 12K is a market-leading all-in-one hybrid solar inverter designed to deliver unmatched performance, efficiency, and flexibility for both grid-tied and off-grid applications. Pre-wired and EMP-hardened, it supports 120V, 240V, and 208V appliances, and is compatible with a wide range of 48V battery chemistries—making it a truly universal, future-proof energy solution.

Key Features

• EMP-Hardened Design
  Engineered for resilience against electromagnetic pulses, ideal for emergency preparedness and critical systems.

• All-In-One Simplicity
  Pre-wired inverter includes dual MPPT charge controllers, load center with breakers, rapid shutdown, Wi-Fi, auto-generator start, battery disconnect, and color touchscreen—all in one box.

• Universal Compatibility
  Works with all 48V battery types (lead-acid, lithium, LFP), and powers both 120V/240V split-phase and 208V applications.

• Flexible Power Sources
  Simultaneously manages power from solar panels, battery banks, the grid, loads, and generators.

• Remote Monitoring & Control
  Monitor and adjust settings from anywhere via the Sol-Ark app and web interface.

• High-Efficiency Performance
  Improves battery round-trip efficiency by 10–15% and reduces overall system costs by more than 50% compared to traditional setups.

Technical Specifications

• Power Output: 12,000W continuous

• Solar Input: 13kW (6.5kW per MPPT)

• Battery Input Voltage: 48V

• Output Voltages: 120/240/208V

• Charge Controllers: Dual 500V MPPTs (1–6 strings)

• Output Waveform: Pure sine wave

• Battery Disconnect, Arc & Ground Fault Protection

• Built-in Rapid Shutdown & Wi-Fi Connectivity

• Breakers: 50A for AC In/Out, Gen In, Smart Load, and Load Out

• Temperature Range: Built for real-world outdoor conditions

• Enclosure Rating: NEMA 3R

• Warranty: 10-Year Limited Warranty

Application Modes

• Grid-Tied Mode – Export solar energy to the utility grid for bill reduction.

• Meter Zero Mode – Offset your entire electric bill without a smart meter.

• Time-of-Use Mode – Use solar and battery power during expensive peak-rate hours.

• Smart Load Mode – Prioritize high-energy loads when solar production is abundant.

• Off-Grid Ready – Full energy independence with or without batteries.

• AC Coupling – Retrofit-friendly for existing grid-tied PV systems.

• Battery Backup Mode – Seamlessly powers essential circuits during grid outages.

Why Choose the Sol-Ark 12K?

• Outstanding Efficiency – Maximizes your solar harvest with superior energy conversion.

• Industry-Leading Power – Easily powers all common residential and small commercial loads.

• Unrivaled Versatility – Supports a wide range of configurations and power sources.

• User-Friendly Setup – Pre-wired for fast, low-cost installation.

• Reliable Support – Backed by Sol-Ark’s U.S.-based technical team, available 7 days a week.

• Cost-Effective – Advanced features at a price significantly lower than alternatives like Tesla Powerwall.

What's in the Box

• Sol-Ark 12K Inverter (Pre-Wired)

• Battery Temperature Sensor

• Current Sensors

• Rapid Shutdown Signal Output

• Built-in Arc Fault, Ground Fault, and PV Disconnect

• Wiring Knockouts and Breakers

• Wi-Fi Dongle

• User Interface via Touchscreen Display
