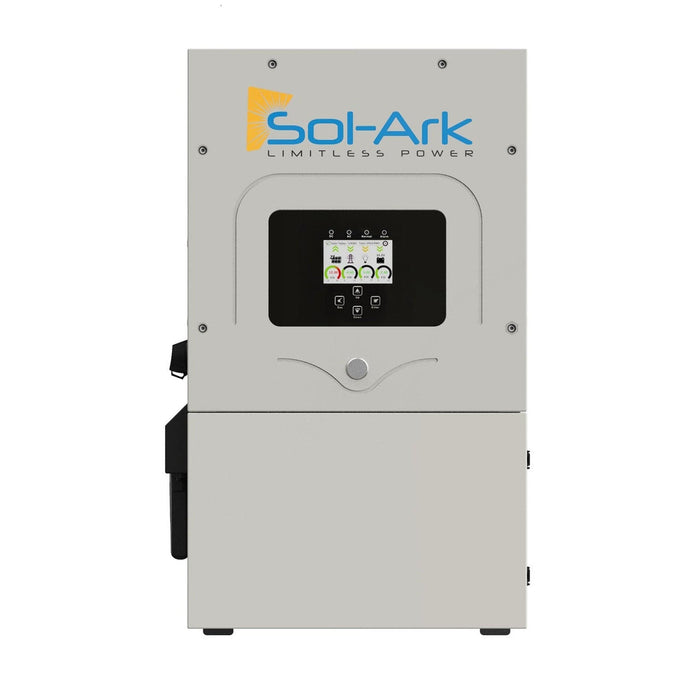

Sol-Ark | 5K-2P All-In-One Hybrid Inverter

The Sol-Ark 5K-2P-N Pre-Wired Hybrid Inverter System provides a complete solution, integrating an inverter, charge controller, and remote monitoring display. It is designed to suit Grid-tied, Off-Grid, or battery backup solar setups, effectively handling power distribution among Solar, Battery, Grid, Load, and Generator sources.

Specifications of Sol-Ark 5K-2P Inverter

• Dimensions: 30.0 inches (H) x 18.3 inches (W) x 10.0 inches (D)
• Weight: 78 pounds
• Enclosure: NEMA 3R Rated
• Operating Temperature Range: -25 to 55°C (Derating required for temperatures >45°C)
• Installation: Wall Mounting Design
• Connectivity: Wi-Fi & LAN included
• Warranty: 5-Year Standard, verified by HALT Testing

Key Features of the 5K-2P

• User-friendly installation with an intuitive touchscreen interface
• Grid Tied Mode facilitates selling excess power back to the grid, helping to reduce electricity bills
• Meter Zero Mode allows zeroing out of the electric bill even without a smart meter
• Time of Use function optimizes the use of solar and batteries to reduce reliance on grid power
• Programmable Smart Load Mode enhances efficiency
• Capable of both DC and AC Coupling Compatible with various battery chemistries, from Lead acid to Lithium, ensuring flexibility in system setup
• Rated for Outdoor Use with NEMA 3R Enclosure and NEMA -4 Electronics
• Universal Voltage Compatibility: 120/240/208V in a single unit
• Generates Pure Sine Wave Output

• Versatile Modes:
  • Home Export Limitation (Limited/Zero Export)
  • Time of Use and Peak Shaving Features
• Compatible with All 48V Batteries Regardless of Brand, Type, or Chemistry Automated Generator Start Functionality
• Options for Rapid Shutdown:
  • Tigo TS4-A-F
  • APSmart
  • MidNite Solar
• Dual Capability: Can Couple DC and AC Simultaneously
• Simplified AC Coupling with One-Plug Connection
• Supports 208V 3-Phase Configuration
• Integrated Arc Fault Protection
• Built-In PV Shut-Off/Disconnect Switch
• Premium UPS-Grade Transfer Time: Ultra-fast 4ms with 93% Round-Trip Efficiency (Compared to alternatives like Tesla Powerwall with 2000ms, 7000W AC Surge, 5000W continuous)
• Interactive Color Touch Display
• Completely Noise-Free Operation
• Access to Highly Responsive Engineering Support 7 Days a Week (In-Person and Texas-Based)
• Remote Fleet Management for Installers
• Operates as Either a Grid-Tie Only or Off-Grid System with PV and Generator
• Hybrid/On/Off-Grid Inverter with AC/DC Coupling Capabilities
• Dual 10A 500V MPPTs, Supporting 2 Strings Each
• Lightweight, Cost-Efficient, and Highly Efficient Modern Transformerless Inverters
• The Sol-Ark 5k: A Top Choice for Solar/Hybrid Inverters. An All-in-One Solution, Pre-Wired with Built-In Charge Controllers and Numerous Standard Features. Offers Flexibility, Efficiency, and Affordability. Comes in a Single, Easy-to-Install Package.

Next-Generation Features

• Improved Efficiency: Merely 4% Losses, Markedly Better Than the Usual 14% in Existing Battery-Based Systems
• Split Phase Capability: Powers 120V and 240V Appliances Together
• Compatible with Grid-Tied, Hybrid, or Off-Grid Configurations
• Handles Power from Solar, Battery, Grid, Load, and Generator Simultaneously
• Flexible and Easy to Use
• Standard 5-Year Warranty with Optional 10-Year Extension

What’s in the Box

• Limiter Sensor 5/8” CT sensors 2x
• Battery Temp Sensor for voltage adjustment
• Battery Cable Toroid x2
• CAT5 Cable for parallel communications
• Allen key for opening the user area of the system
• French cleat for wall mounting the Sol-Ark
• WiFi Plug (Dongle) for software updates and remote monitoring (use screws to hold in!)
• Inverter (everything is included in 1 box and is RSD compatible)
