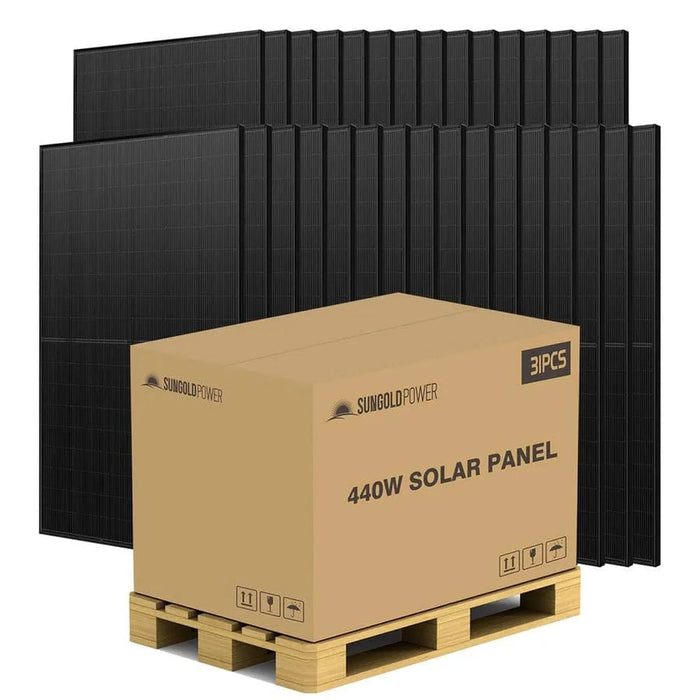

SunGoldPower | 440W Mono Black Perc Solar Panel Full Pallet (32 Panels)
Overview
-
High Efficiency Module: Featuring Mono PERC Half-Cut Technology, this module achieves an efficiency of up to 20.32%. SunGoldPower's 440W panels deliver more output per square meter compared to traditional solar panels.
-
Enhanced Tolerance: Constructed with half-cell technology, these 440W solar panels improve power output and performance. Their unique wiring system and increased cell count provide superior shade tolerance.
-
Versatile Applications: The 440W solar panel is ideal for off-grid, on-grid, or hybrid systems. It's perfect for use in RVs, tiny houses, marine applications, household power supply, and commercial buildings, helping to reduce energy consumption and costs over time.
-
Warranty: Each solar panel includes a 10-year workmanship warranty and a 25-year linear performance warranty. They are TUV certified, with UL certification pending.
Off-grid & On-grid Solution & Hybrid System
This high-efficiency PERC solar panel is ideal for on-grid, off-grid, and hybrid solar systems. It effectively stores energy in batteries, lowers electricity costs, and can fully power an off-grid home.

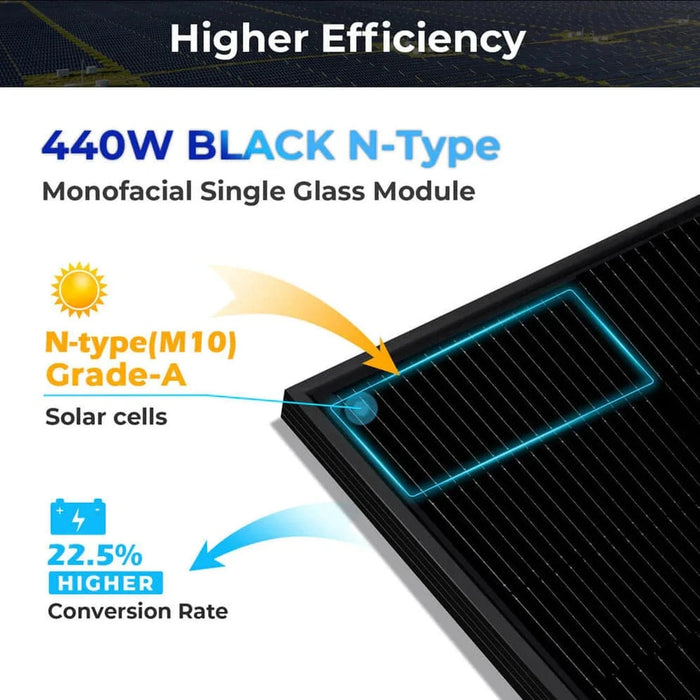

High efficiency
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

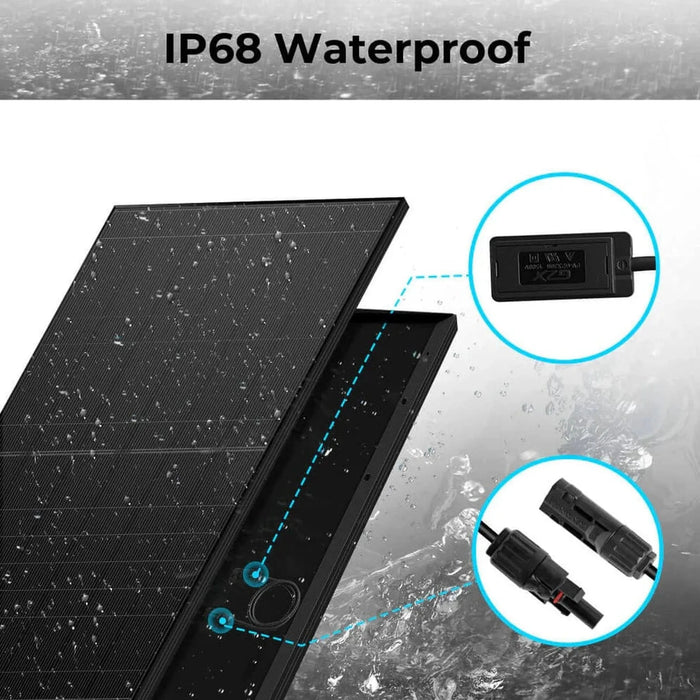

Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Specifications
| Model Type | SG-440WM |
|---|---|
| Peak Power (Pmax) | 440W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.05A |
| Maximum Power Voltage (Vmp) | 33.72V |
| Short Circuit Current (Isc) | 13.73A |
| Open Circuit Voltage (Voc) | 39.79V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 12(6*20) |
| Cell Type | PERC Mono182*91mm |
| Certifications | CE TUV |
| Product Weight | 54.0lbs |
| Product Dimension | 75.16*44.65*1.38inch |
| Package Weight | 108lbs（2PCS） |
| Package Dimension | 76.56*47.6*3.5inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty. |
Manuals and Downloads
440W Mono Black Solar Panel User Manual
FAQ
Is it waterproof?
Yes, this solar panel is indeed waterproof. It is specifically designed to endure various environmental conditions, including rain and moisture.
Warranty
25 Year Warranty
