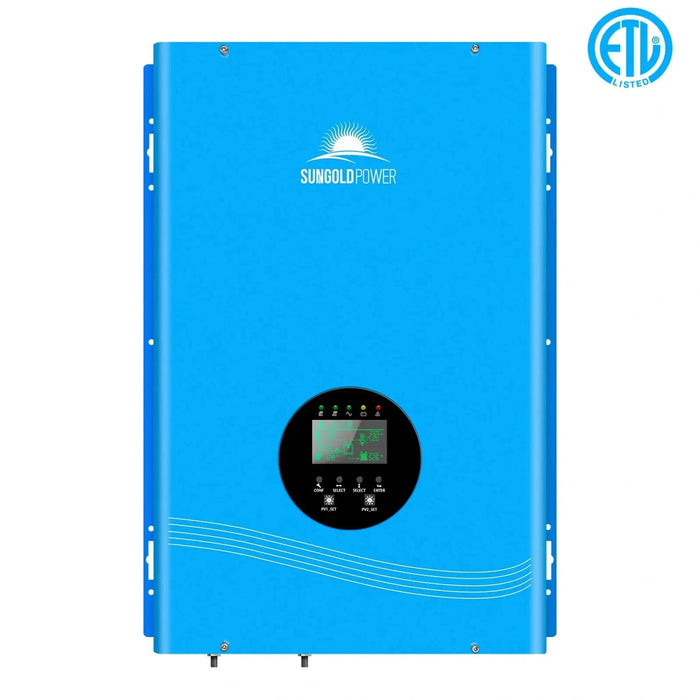

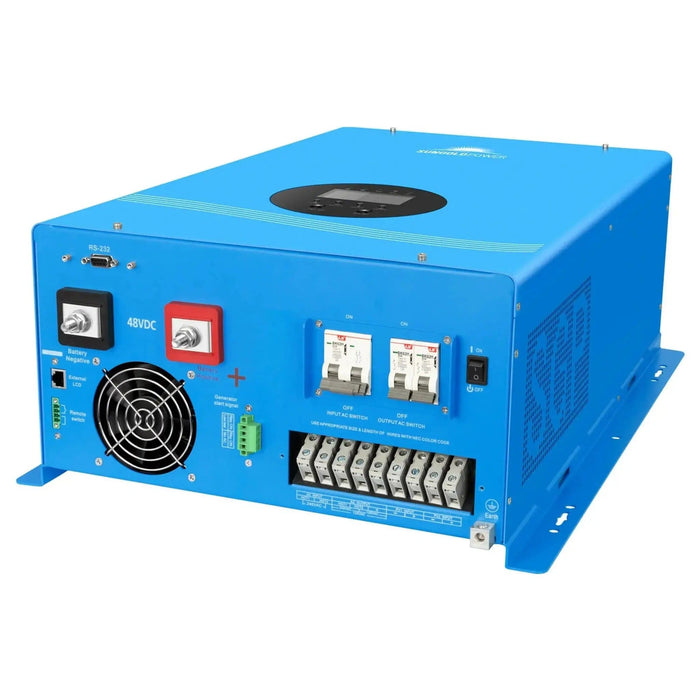

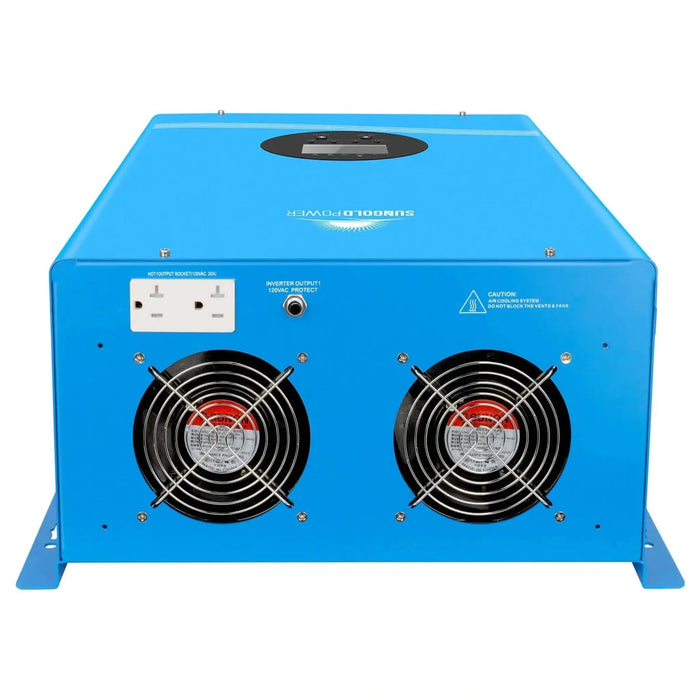

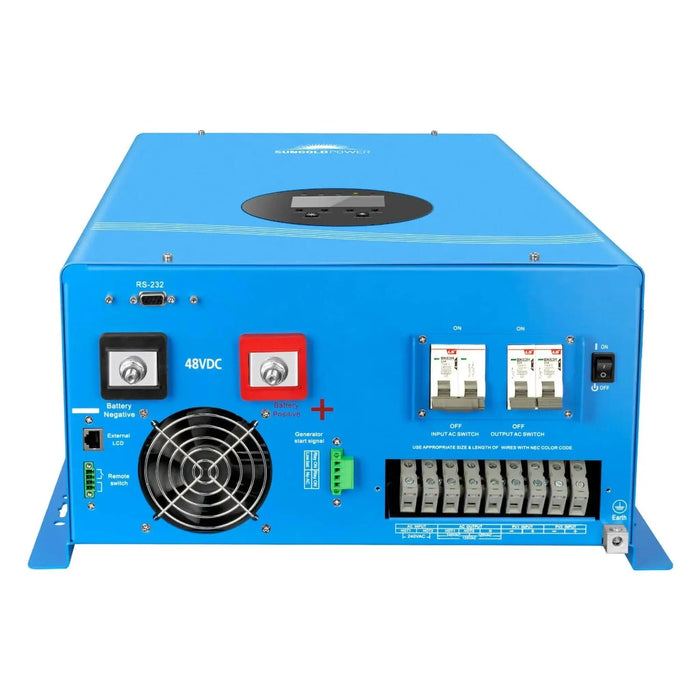

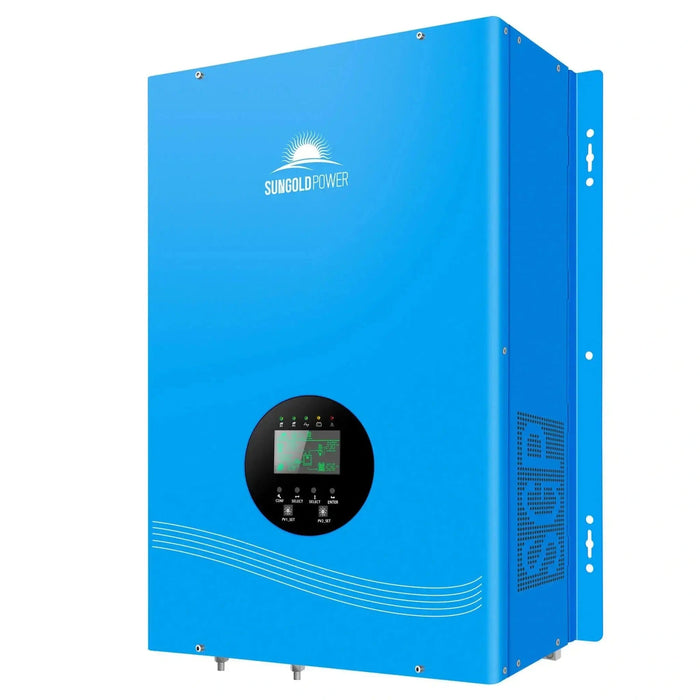

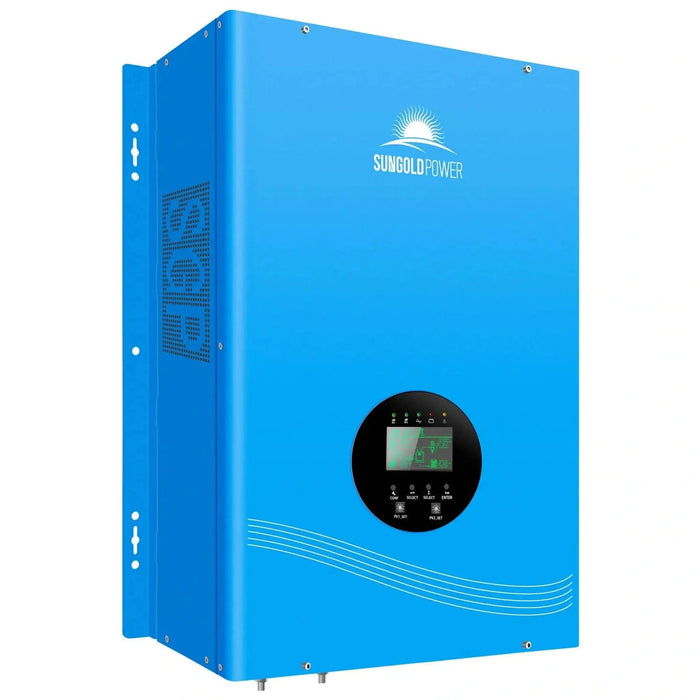

SunGoldPower | 12KW Hybrid Solar Inverter UL1741 Standard
Overview
- Introducing the LF-PV Series Pure Sine Wave Inverter: a comprehensive 48-volt system combining an inverter, AC charger, and Auto-transfer switch seamlessly. Without MPPT, this versatile solution caters to diverse power needs.
- Operating at 240VAC input, our split-phase inverter delivers 120VAC or 240VAC output power, adaptable to various appliances and offering frequency options of 50 or 60Hz through SW4 adjustment.
- AC/Battery Priority: By default, our inverter prioritizes AC, with the option to switch to battery priority via SW5.
- Features include Smart Remote Control, Automatic Generator Starting (AGS), and compatibility with different battery types.
- Applications span a wide range, accommodating loads such as refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and large-scale home and business appliances.
Specifications
Key Features:
- 12KW split-phase pure sine inverter charger with DC 48V input and AC 240V output (120V/240V).
- Auto Generator Start (AGS) functionality included.
- Comes with Battery Temperature Sensor (BTS) and Remote Control for added convenience.
- Supports 8 types of battery voltage selection, including lithium LiFePO4, gel, AGM, and lead-acid batteries.
- Compatible with a wide range of home and office appliances.
- Offers a powerful charge rate of up to 120Amp, adjustable from 0% to 100%.

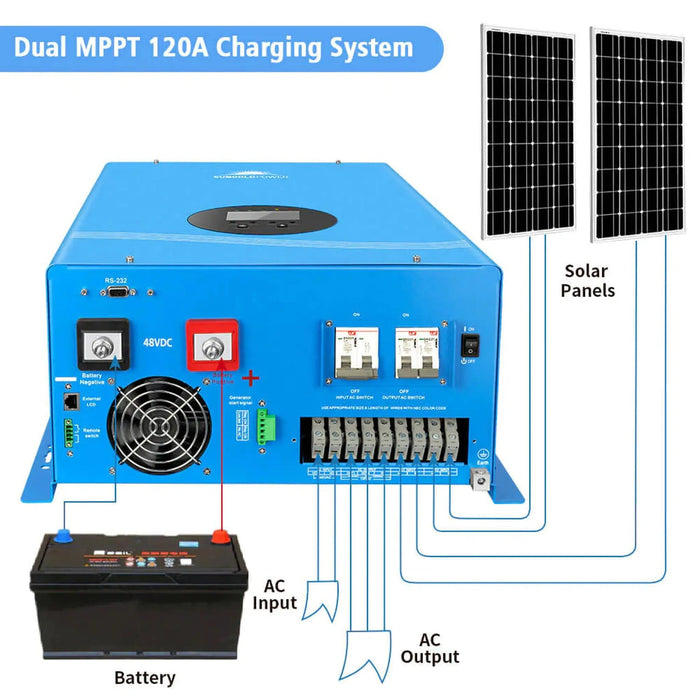

- Built-in transfer switch for seamless transitions between battery charge, backup, or off-grid power solutions.
- AC/Battery Priority Mode allows for designated inverter-preferred UPS configuration.
- Utilizes 4-step Intelligent Battery Charging and features PFC (Power Factor Correction) for the charger.
- Typical transfer time of 8 ms between utility and battery ensures uninterrupted power supply.
- Incorporates a 15-second delay before transfer when AC recovers, providing load protection when used with a generator.
Main Specification：
- Continuous Output Power: 12.0KW
- Surge Rating(20s): 36.0KW
- Output Waveform: Pure Sine Wave
- AC Output Voltage: 120V and 240V
- AC Input Voltage: 240V ( not suitable for AC 120V input )
- DC Battery Voltage: 48Vdc
- AC Battery charger: 120±5Amp
- Output Frequency: 50Hz /60Hz
- Typical transfer Time: 10ms(Max)
- DC Input:
- Nominal Input Voltage: 48.0Vdc
- Minimum Start Voltage: 40.0Vdc/ 42.0Vdc
- Low Battery Alarm: 42.0Vdc / 44.0Vdc
- Low Battery Trip: 40.0Vdc / 42.0Vdc
- High Voltage Alarm: 64.0Vdc
- Low Battery voltage recover: 62.0Vdc
- Power Saver on Idle Consumption: 40W
- Power Saver off Idle Power: 180W
- Charger : Output Voltage: Depends on battery type
- Battery Initial Voltage for Start Up: 40-62.8V
- Over Charge Protection Shutdown: 62.8V
- Charger Breaker: 80A
- Input Voltage Waveform: Sine wave (Grid or Generator)
- AC input range:184-253Vac/140-270Vac
- Nominal Input Frequency :50Hz or 60Hz (Auto detect)
Packaging:
- *12000W 48V Split Phase Pure Sine Wave Power Inverter
- *English Manual
- *Remote Control
- *BTS Cable
- *Unit Weight: 160LB
- *Unit Size: 27.6 x 16.5 x 8 inch
- *Shipping Weight: 185 LB
- *Shipping Size: 29.2 x 23 x 16.5 inch
User Manual
Download LF-PV Series Pure Sine Wave Inverter User's Manual
Frequently Asked Questions:
-
How does this inverter connect to a home with a multiple-phase system? Our inverter provides dual-phase output at 120V and 240V, which means it cannot operate with a multiple-phase system.
-
Can this inverter simultaneously provide 240V and 120V output? Yes, our inverter can supply both 240V and 120V output simultaneously. To achieve this, connect two cables to HOT1. However, please note that the power for 120V load must not exceed 50% of the inverter's total power capacity, which is 6000W when using the 120V output.
-
What is the power consumption of the inverter when there is no load? The power consumption varies depending on the power saver settings. With power saver on idle, the consumption is 40W, while with power saver off idle, it is 180W.
