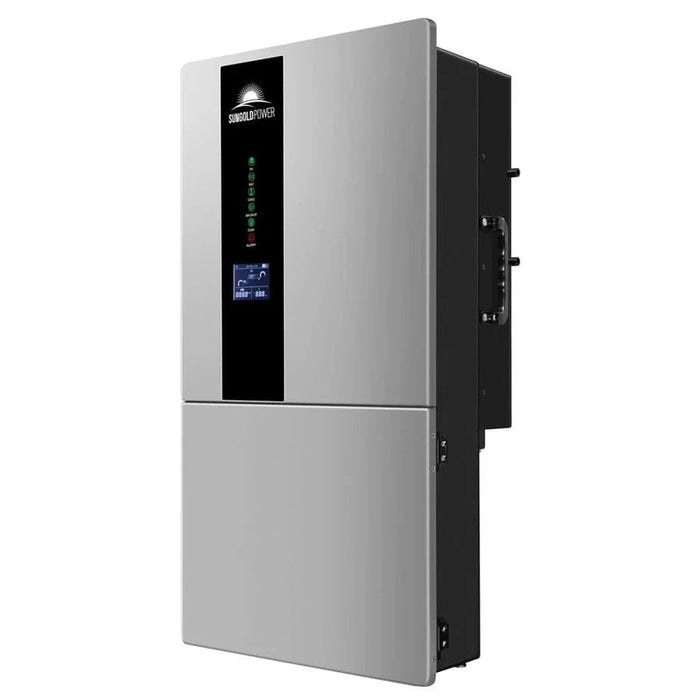

SunGoldPower | 7.6KW Hybrid Inverter 48V Split Phase SGN7.6K1HB-48
7.6KW Hybrid Inverter 48V Split Phase | SGN7.6K1HB-48
This 7.6KW Hybrid Inverter offers a powerful and flexible energy solution, designed to support off-grid, grid-tie, and hybrid solar applications. With three independent MPPTs supporting up to 600V input each and a total solar input of 12kW, it efficiently converts solar energy into usable AC power, stores it in batteries, or exports it to the grid.
The inverter delivers a continuous output of 7.6kW (up to 10kW peak), making it suitable for residential or small commercial energy systems. It supports parallel operation of up to 9 units, allowing you to scale your system up to 68.4kW, as your energy needs grow.
Key Features
-
High Solar Input: 3 MPPTs with a combined input capacity of 12kW, each supporting up to 600V, ensuring maximum solar harvest.
-
Flexible Power Configuration: Operates in off-grid, grid-tied, or hybrid modes to match your energy strategy.
-
Scalable System: Connect up to 9 inverters in parallel for a total power capacity of 68.4kW.
-
Advanced AC Coupling: Seamlessly integrates with grid-tied systems and enables smart load management.
-
Reliable Backup Power: Automatically supplies power to critical loads when the grid fails, ensuring uninterrupted operation.
-
User-Friendly Interface: Manage and monitor settings through a built-in LCD display or mobile app.
-
Rugged & Durable: IP65-rated for outdoor use, featuring a wall-mounted design and optional 5 or 10-year warranty for peace of mind.
-
Certified Safe: Complies with UL 1741, CSA C22.2, UL 1699B, UL 1741SB, IEEE 1547:2018, and HECO SRD 2.0 standards.
