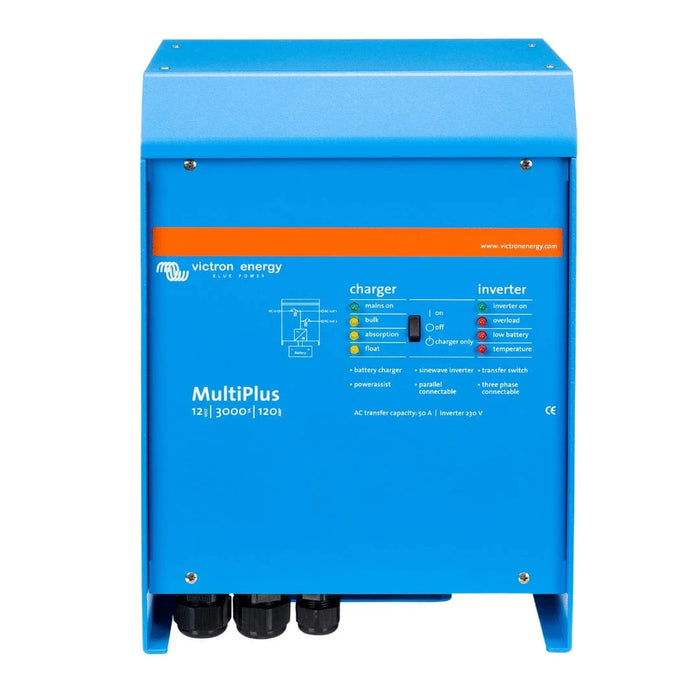

Victron Energy | MultiPlus 12/3000/120-50 120V VE.Bus (UL 1741 & 458)
SKU PMP122301102
Original price
$1,168.75
-
Original price
$1,168.75
Original price
$1,168.75
$1,168.75
-
$1,168.75
Current price
$1,168.75
SPRING SALE – LOWEST PRICES GUARANTEED
Spring is here, and so are unbeatable deals. Don’t wait—shop now and secure the lowest prices before the sale ends!
Overview
The Victron Energy MultiPlus 12/3000/120-50 120V VE.Bus (UL 1741 & 458) is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
The Victron Energy MultiPlus 24/3000/70-50 120V is a powerful true sine wave inverter, a sophisticated battery charger with adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features.
- Unique PowerAssist Feature: The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
- Uninterrupted AC Power (UPS Function): In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
- Virtually Unlimited Power Thanks to Parallel Operation: Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
- Remote Monitoring & Control: When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more.
Specification
| Specification | 12/3000/120-50 120V | 24/3000/70-50 120V |
|---|---|---|
| PowerControl / PowerAssist | Yes | |
| AC Input Voltage Range | 95 – 140 VAC | |
| Input Frequency | 45 – 65 Hz | |
| Power Factor | 1 | |
| Max Feed Through Current (A) | 50 | |
| Min. AC Current for PowerAssist (A) | 7.5 | |
| INVERTER | ||
| Input Voltage Range (VDC) | 9.5 – 17 | 19 – 33 |
| Output Voltage / Frequency | 120 VAC ± 2% / 60 Hz ± 0.1% | |
| Cont. Output Power at 25°C (VA) | 3000 | 3000 |
| Cont. Output Power at 25°C (W) | 2400 | 2400 |
| Cont. Output Power at 40°C (W) | 2200 | 2200 |
| Cont. Output Power at 65°C (W) | 1700 | 1700 |
| Peak Power (W) | 6000 | 6000 |
| Max Efficiency (%) | 93 | 94 |
| Zero Load Power (W) | 20 | 20 |
| Zero Load (AES Mode) (W) | 15 | 15 |
| Zero Load (Search Mode) (W) | 8 | 10 |
| CHARGER | ||
| Charge Voltage Absorption (VDC) | 14.4 | 28.8 |
| Charge Voltage Float (VDC) | 13.8 | 27.6 |
| Storage Mode Voltage (VDC) | 13.2 | 26.4 |
| Charge Current House Battery (A) | 120 | 70 |
| Charge Current Starter Battery (A) | 4 | |
| Battery Temperature Sensor | Yes | |
| GENERAL | ||
| Auxiliary Output | Max. 32A, switches off when no external AC | |
| Programmable Relay | Yes, 3x | |
| Protection | a – g | |
| VE.Bus Comm Port | Yes | |
| General Purpose Comm Port | Yes, 2x | |
| Operating Temperature | -40 to +65°C / -40 to 150°F | |
| Humidity (non-condensing) | Max 95% | |
| ENCLOSURE | ||
| Material & Colour | Aluminium (blue RAL 5012) | |
| Protection Category | IP 21 | |
| Battery Connection | M8 bolts (2 plus, 2 minus) | |
| AC Connections | Screw terminals 13mm² (6 AWG) | |
| Weight (kg) | 19 | |
| Dimensions (mm) | 362 x 258 x 218 | |
| STANDARDS | ||
| Safety | UL1741, UL458, EN 60335-1, EN 60335-2-29 | |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 | |
| Automotive Directive | 2004/104/EC | |
