Complete Deep Cycle Battery Voltage Chart: 12V, 24V, and 48V Systems Explained

When setting up a solar power system, one of the most common questions asked is: how many volts should a deep cycle battery have? Knowing this helps you accurately measure battery health, monitor charging performance, and ensure you’re getting the most out of your off-grid energy setup.

Deep cycle batteries are the backbone of renewable energy systems, powering homes, RVs, boats, and solar backup kits day and night. Unlike standard car batteries that deliver quick bursts of energy, deep cycle batteries are designed to discharge power slowly and recharge repeatedly without degrading quickly.

In this guide, we’ll walk through everything you need to know about deep cycle battery voltage readings, provide complete voltage charts for 12V, 24V, and 48V systems, and explain what each reading means for battery performance.

What Is a Deep Cycle Battery?

A deep cycle battery is a type of rechargeable battery designed to provide consistent power over long periods. It’s built to handle hundreds or even thousands of charge and discharge cycles — making it ideal for solar power storage and off-grid applications.

The key difference between deep cycle batteries and regular lead-acid batteries lies in plate design and chemical composition. Deep cycle batteries have thicker lead plates and denser active material, allowing them to discharge up to 80% of their capacity without damage.

This makes them perfect for:

• Solar energy systems

• Marine and RV power

• Backup and off-grid energy storage

Types of Deep Cycle Batteries

There are several types of deep cycle batteries, each designed for specific use cases. Understanding these will help you interpret voltage readings more accurately.

1. Flooded Lead-Acid (FLA)

• Oldest and most affordable type

• Requires regular maintenance (adding distilled water)

• Best for stationary setups

2. Absorbed Glass Mat (AGM)

• Sealed, maintenance-free design

• Excellent for mobile or enclosed environments

• Performs well in cold weather

3. Gel Batteries

• Uses a gel-based electrolyte

• Resistant to vibration and extreme temperatures

• Typically lasts longer but costs more

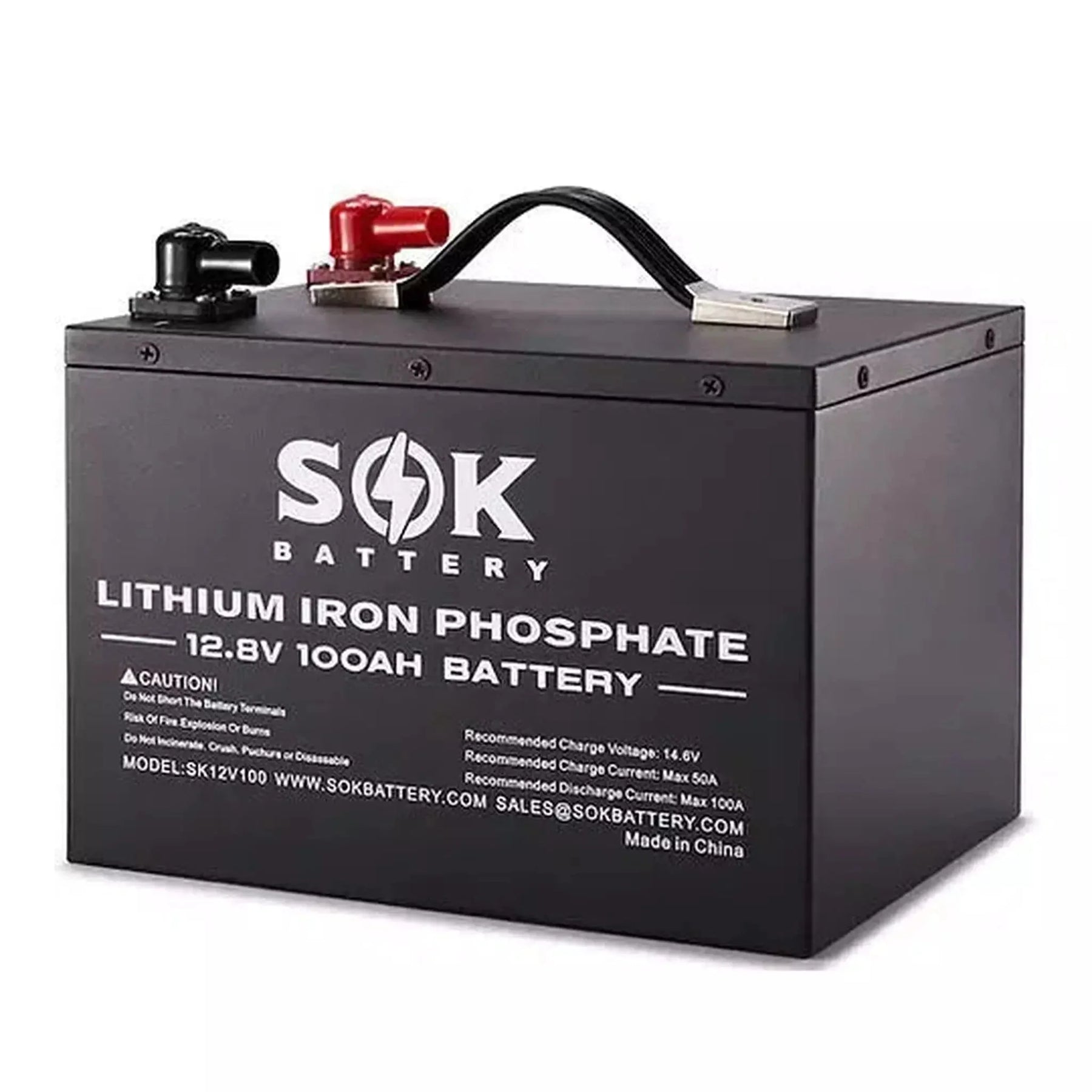

4. Lithium-Ion (LiFePO4)

• Highest efficiency and lifespan (up to 10 years or more)

• Lightweight and maintenance-free

• Delivers consistent voltage across the discharge curve

Understanding Battery Voltage and State of Charge

Voltage is one of the easiest and most accurate ways to determine your battery’s state of charge (SOC).

However, voltage readings can fluctuate depending on whether the battery is charging, discharging, or resting. For the most accurate reading, always check the voltage after the battery has rested for several hours with no load or charge connected.

Here’s what different voltage readings generally mean for deep cycle batteries:

• Higher voltage = battery is charged or being charged

• Lower voltage = battery is discharging or nearly empty

• Stable mid-range voltage = battery is resting

12V Deep Cycle Battery Voltage Chart

The 12V battery is the most common setup for small solar systems, RVs, and boats. Below is a detailed chart showing how voltage correlates to the state of charge for a 12V AGM deep cycle battery:

Pro Tip: Regularly discharging a lead-acid battery below 50% shortens its lifespan. For optimal performance, keep it between 50%–100% state of charge.

24V Deep Cycle Battery Voltage Chart

24V systems are popular for medium-sized solar installations that require more efficiency and less current loss. They’re also common in RVs and boats where multiple appliances run simultaneously.

For 24V systems, maintaining voltage above 24V ensures battery health and consistent power delivery.

48V Deep Cycle Battery Voltage Chart

48V systems are typically used for larger off-grid homes, commercial solar installations, and high-capacity battery banks. They offer excellent efficiency, lower current flow, and minimal energy loss over long distances.

For long-term reliability, avoid dropping below 48V during use.

AGM Battery Resting Voltage

When a deep cycle battery is fully charged and disconnected from any load, it reaches what’s called a resting voltage.

Here’s what that looks like for different systems:

Allow at least 12–24 hours after charging to measure an accurate resting voltage. This ensures the voltage stabilizes and reflects the true state of charge.

Deep Cycle Battery Discharge Explained

When a load (like lights or an inverter) is connected, the battery starts discharging — meaning it’s releasing stored energy.

The depth of discharge (DoD) refers to how much energy you’ve used relative to the battery’s total capacity.

For example:

• 20% DoD = 80% of charge remaining

• 50% DoD = half the battery used

• 80% DoD = nearly drained

Excessive deep discharges can shorten lifespan, especially in lead-acid batteries. Lithium batteries, on the other hand, can safely reach 80–90% DoD without damage.

How to Measure Deep Cycle Battery Voltage

Measuring battery voltage is simple if you have a digital multimeter or battery monitor. Follow these steps:

1. Turn off all loads and chargers.

2. Wait at least 2 hours (preferably overnight) to let the voltage stabilize.

3. Connect the multimeter — red probe to positive (+), black probe to negative (−).

4. Compare the reading with the voltage chart above.

If your reading is significantly lower than expected, your battery may need recharging — or it might be nearing the end of its life cycle.

Choosing the Right Deep Cycle Battery

When selecting a deep cycle battery for your solar setup, consider the following:

• Budget: AGM and Flooded are more affordable; Lithium is pricier but long-lasting.

• Maintenance: Choose AGM or Lithium for maintenance-free convenience.

• Cycle Life: Lithium batteries can last up to 4x longer than lead-acid models.

• Application: AGM is great for RVs and boats; Lithium is ideal for homes and cabins.

You can explore high-quality deep cycle batteries from trusted brands like SunGoldPower, ACOPower, and Anker SOLIX — all available at SolarGuysPro.com

FAQs

1. How many volts should a deep cycle battery have when fully charged?

A 12V deep cycle battery should read about 12.8–13.0 volts when fully charged. For 24V batteries, it’s 25.6–26.0 volts, and for 48V, it’s 51.2–52.0 volts.

2. What voltage is too low for a deep cycle battery?

For lead-acid batteries, anything below 11.8V (12V system), 23.5V (24V system), or 47V (48V system) indicates a low charge and should be recharged immediately.

3. How long does a deep cycle battery last?

Lifespan depends on type and usage — AGM batteries last 3–5 years, while Lithium batteries can last up to 10–15 years with proper care.

4. Can you overcharge a deep cycle battery?

Yes, overcharging can damage lead-acid batteries. Use a quality MPPT charge controller to manage charging safely and efficiently.

Conclusion

To summarize, knowing how many volts should a deep cycle battery have is essential for maintaining efficiency, maximizing lifespan, and avoiding costly replacements.

A fully charged 12V battery should measure around 12.8–13.0 volts, while 24V and 48V systems should show 25.6V–26.0V and 51.2V–52.0V, respectively. Regular voltage checks will help ensure your solar or off-grid system runs smoothly and reliably.
