Infinite Off-Grid Cooling: How the ZERO BREEZE Mark 3 Solar Cable Powers Solar AC

The ZERO BREEZE Mark 3 Solar Charging Cable makes it possible to recharge the Mark 3 Battery from compatible solar panels, creating a practical solar-powered cooling setup for camping, RVs, vans, and other off-grid applications. The key is using the cable with the Mark 3 Battery and keeping the solar array within its 12V–60V charging range.

Key Takeaways

• The ZERO BREEZE Solar Charging Cable links compatible solar panels to the Mark 3 Battery.

• This device uses MC4 connectors and D20 connections to the battery.

• The cable length is 2 meters, 16 AWG wire and 10A capacity.

• The Mark 3 Battery allows solar charging in the range of 12V-60V.

• Solar panels that generate voltage above 60V must not be connected to the Mark 3 Battery.

• Since the Mark 3 AC works on 48V DC, the battery or any other 48V power supply will work with the air conditioner.

• The LiFePO4 battery banks could be used as well; however, voltage matching is crucial here.

• The series of solar panels could be used to get the right voltage required for effective Mark 3 charging.

• Increased solar wattage does not always mean higher charging speed when the input capacity of the battery is exceeded.

• Solar Guys Pro may assist you in matching your panels, batteries, cables, and portable power devices.

ZERO BREEZE Mark 3 Solar Charging Cable

The ZERO BREEZE Mark 3 Solar Charging Cable is a 2-meter MC4-to-D20 cable designed to connect compatible solar panels to the Mark 3 Battery. It uses 16AWG wire with a 10A rating and supports the Mark 3 Battery's 12V–60V solar charging range, making it useful for portable off-grid charging.

How the Solar Setup Actually Works

Look, there's one important detail we don't want to gloss over.

The solar cable doesn't plug directly into the ZERO BREEZE Mark 3 AC and magically runs the compressor.

Instead, the solar panels charge the Mark 3 Battery. The battery then supplies the 48V DC power the Mark 3 AC needs.

The basic setup looks like this:

Solar Panels → Solar Charging Cable → Mark 3 Battery → Mark 3 AC

That's actually a pretty clean arrangement.

The Mark 3 AC has a rated cooling input of around 500W and operates at 48V DC, with a published operating range of 38V–58.5V.

The battery acts as the energy buffer between changing solar production and the air conditioner's demand.

Why 48V Matters?

The Mark 3 operates at 48V, and that's a big deal for an off-grid cooling system.

For example, a 500W load theoretically requires roughly:

500W ÷ 48V = 10.4A

At 12V, the same 500W would require about:

500W ÷ 12V = 41.7A

Actual current varies with system conditions, but the math shows why higher voltage can make larger DC loads easier to manage.

This is also why you shouldn't assume a standard 12V battery can directly power the Mark 3.

ZERO BREEZE states that 12V, 24V, or 36V sources require its 48V Booster to supply the Mark 3's required operating voltage.

Our Pro Tip: Don't Chase Maximum Panel Wattage

Here's a common mistake.

People see a bigger solar panel and assume more watts always means faster charging.

Not necessarily.

The Mark 3 Battery has a 10A charging-current limit, and its solar input must remain within the specified voltage range.

So the goal isn't simply to throw 1,000W of panels at the battery.

The goal is to build a solar array that stays within the battery's voltage and current limits while providing useful power during available sunlight.

That's where proper series and parallel configuration matters.

If you're unsure how to configure your panels, check out our solar kits or reach out to our team before connecting anything.

Series vs. Parallel Solar Panels

ZERO BREEZE's own solar setup demonstrates why panel configuration matters.

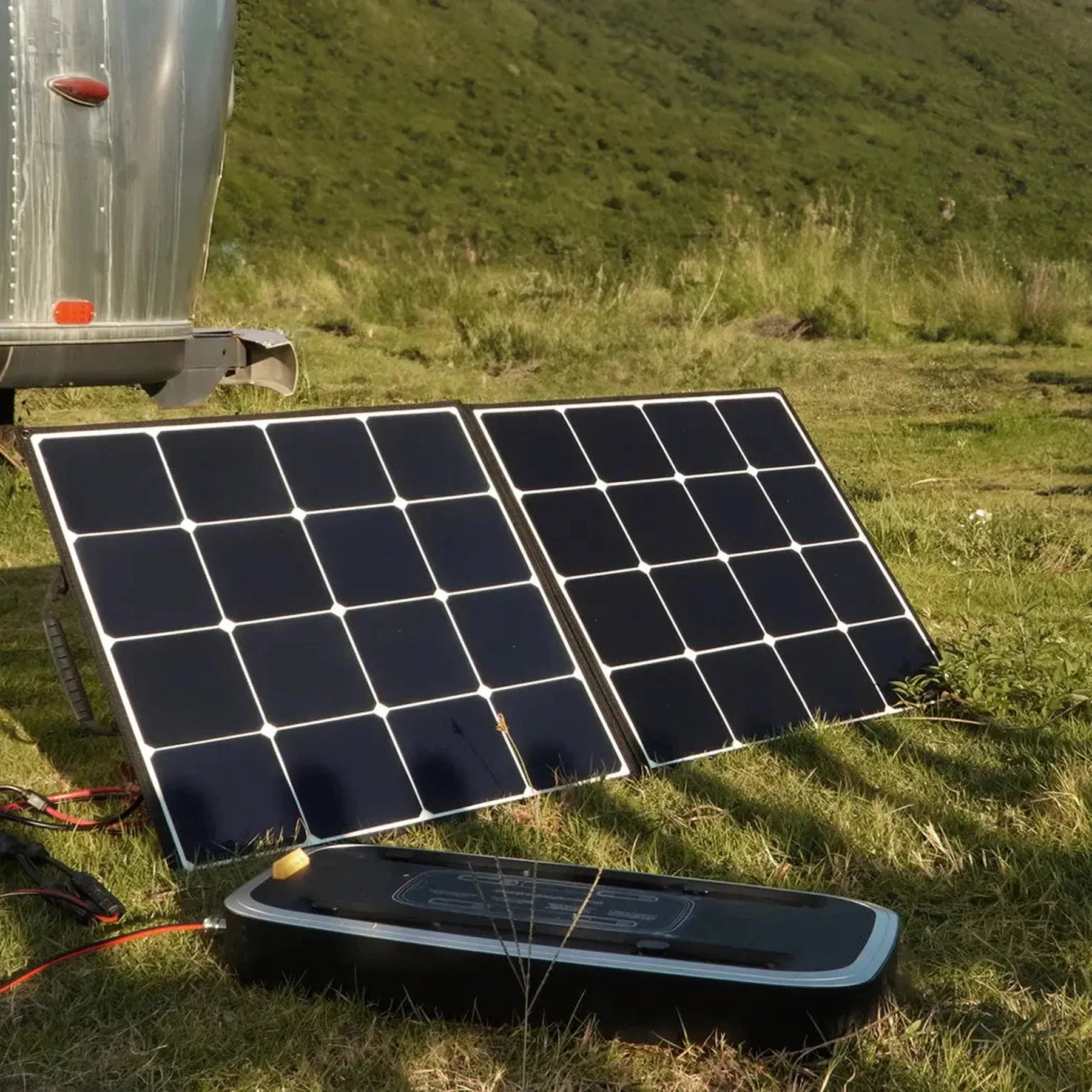

Two 100W panels can be connected in series to produce roughly a 48V solar output, which is suitable for the Mark 3 Battery's solar input. ZERO BREEZE also describes configurations using four and six 100W panels for higher charging capability while staying within the system's input requirements.

Series connections increase voltage.

Parallel connections increase current.

That's basic solar wiring, but it's extremely important here.

If you're building your own array, check the Voc of each panel, calculate the total voltage when panels are connected in series, and make sure the result stays below the battery's maximum PV input.

Don't design from the panel's "nominal voltage" alone.

Solar Doesn't Have to Run the AC Directly

This is one of the biggest advantages of using a battery between the solar panels and air conditioner.

• Solar production changes constantly.

• A cloud moves in. Output drops.

• The sun comes out. Output rises.

• The compressor starts. Power demand changes.

• The battery smooths those changes

ZERO BREEZE notes that its Mark 3 Battery can charge from solar while the AC is running, although solar-only operation may not be stable when the battery is empty or solar production suddenly drops.

That's why we prefer thinking of the battery as the system's energy reservoir, not just an emergency backup.

How-To: Build a Solar-Powered Mark 3 Setup

1. Check Your Battery

Start with the ZERO BREEZE Mark 3 Battery or another compatible 48V power source.

The Mark 3 Battery is rated at 1,022Wh and provides a 42V–58.8V output to the air conditioner.

2. Choose Compatible Panels

Check the panel's Voc and operating voltage.

Your combined solar voltage must remain within the Mark 3 Battery's 12V–60V solar charging range.

3. Configure the Panels

Use series connections when you need to increase voltage.

Use parallel connections when you need additional current while staying within the system's limits.

4. Connect the Solar Cable

Connect the panels using the appropriate MC4 connection and connect the other end to the Mark 3 Battery.

You'll feel the connector seat firmly when it clicks into place. That's a small detail, but secure connections matter when you're moving gear around at a campsite.

5. Connect the Mark 3 AC

Once the battery has sufficient charge, connect the Mark 3 AC using the appropriate power connection.

The air conditioner then draws its required 48V DC power from the battery.

6. Watch the Solar Input

Monitor charging performance during different sunlight conditions.

Don't expect the system to maintain its maximum rated input all day. Clouds, panel angle, heat, shading, and other factors all affect production.

If you're building an off-grid cooling setup for an RV or van, our team can help you work through the solar and battery sizing before your next trip.

What Does the Setup Feel Like?

One thing we like about portable DC systems is how little hardware you need to move around.

The Mark 3 AC itself weighs about 22 pounds, while the Mark 3 Battery is around 14 pounds.

You can actually feel the difference when you're carrying everything to a campsite.

There's no giant inverter box to wrestle with.

You connect the solar cable, hear the MC4 connectors snap into place, and let the battery handle the energy buffering.

That's the appeal of a purpose-built portable system.

The Mark 3 Solar Cable vs. Other Charging Options

The Solar Charging Cable is the right choice when your goal is charging the Mark 3 Battery from solar panels.

If you're charging from a vehicle's 12V outlet, ZERO BREEZE offers a separate cigarette-lighter charging cable. That cable is designed to charge the battery and isn't intended to power the Mark 3 AC directly from a 12V vehicle outlet.

For users with a 12V, 24V, or 36V lithium battery system, ZERO BREEZE also offers a 48V Booster that can step the voltage up for the Mark 3.

For a native 48V source, the Mark 3 DIY Cable can connect directly to a compatible lithium battery source when properly configured. ZERO BREEZE specifies that the source should provide more than 600W.

If you're stuck choosing between solar, vehicle charging, or a 48V battery setup, contact Solar Guys Pro. We'll help you compare the options instead of guessing.

Who Is This Solar Setup For?

The ZERO BREEZE Mark 3 solar system makes sense for campers, RV owners, van lifers, tent campers, boaters, and anyone who wants portable cooling without depending entirely on shore power.

It's particularly useful where sunlight is available but traditional AC power isn't.

The important thing is understanding that solar panels recharge the battery while the battery powers the AC.

Once you understand that relationship, the whole system becomes much easier to design.

Semantic FAQ

Who should use the ZERO BREEZE Mark 3 Solar Charging Cable?

It's designed for users who want to recharge a ZERO BREEZE Mark 3 Battery from compatible solar panels. It's especially useful for camping, RV, van, and other off-grid applications.

What does the Mark 3 Solar Charging Cable connect to?

It connects compatible solar panels to the Mark 3 Battery using MC4 and D20 connections. The cable is 2 meters long, uses 16AWG wire, and has a 10A rating.

Where can I use the Mark 3 solar setup?

You can use it anywhere you have suitable sunlight and a safe place to deploy your panels, including campsites, RVs, vans, boats, and remote properties.

Why does the Mark 3 need a battery between the solar panels and AC?

The battery stores solar energy and provides a more stable 48V DC source for the air conditioner. It also helps compensate for changing solar production throughout the day.

How many solar panels do I need?

It depends on the panel voltage, wattage, and the charging limits of your Mark 3 Battery. For example, ZERO BREEZE describes two 100W panels connected in series for roughly 48V, while larger configurations can provide more charging power within the system's limits.

Final Thoughts

The ZERO BREEZE Mark 3 Solar Charging Cable is a small component, but it plays an important role in building a portable solar-powered cooling system.

The real trick is matching everything correctly: solar voltage, charging current, battery capacity, and the Mark 3's 48V DC operating requirements.
