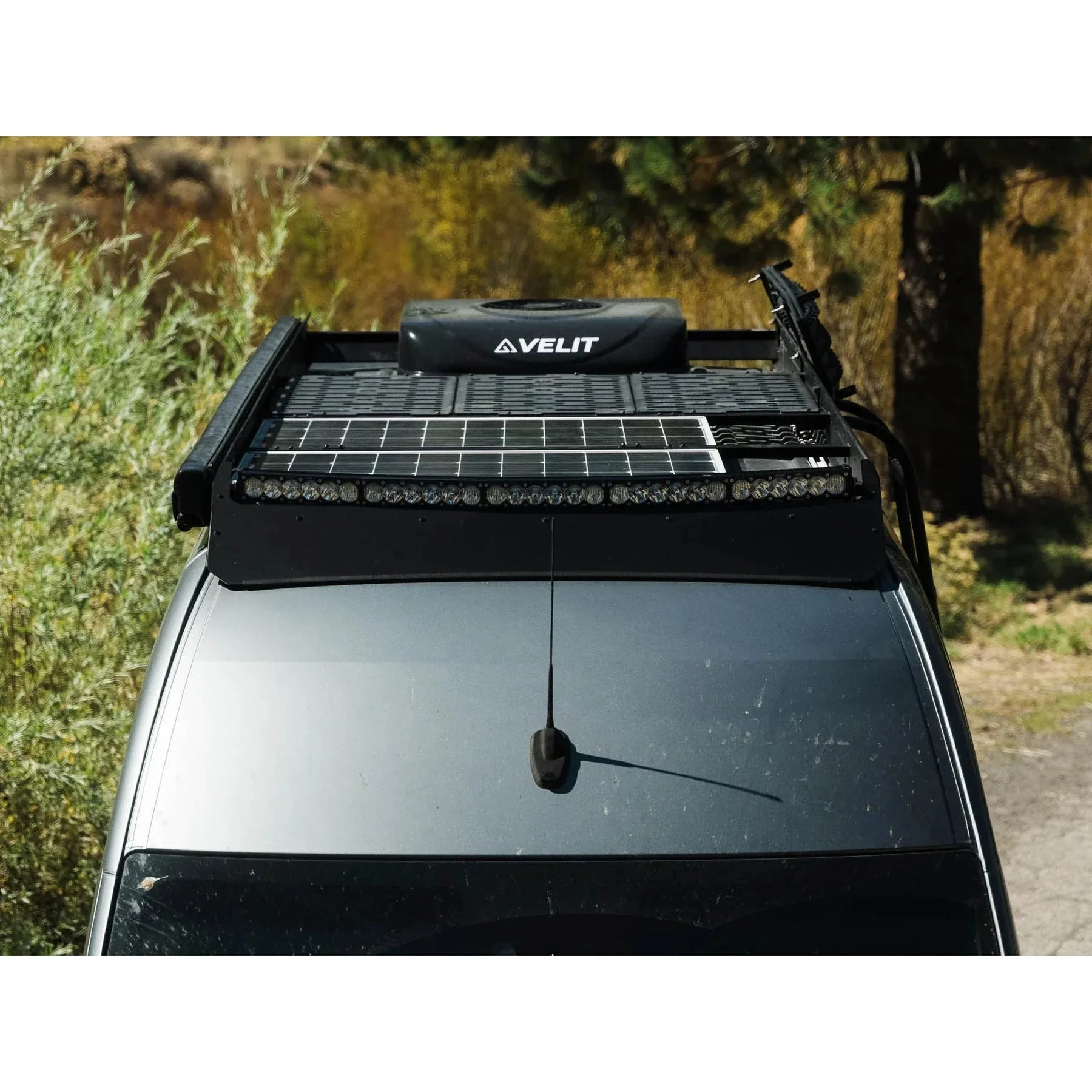

Maximize Your Roof Space: Why the Flatline Van Co. Standard Roof Rack is Built for 144" High Roof Sprinters

With the design of the Flatline Van Co. Standard Roof Rack, better use can be made of the abundant roof space available on high-roof 144-inch Mercedes-Benz Sprinter vans. This allows builders to mount solar panels, antennas, storage units, fans, and other components on the roof. The real benefit of this rack is that it creates usable space from unused roof space for off-grid builds.

Key Takeaways

• Flatline Van Co. Standard Roof Rack is created for Sprinter vans only.

• A 144" high-roof Sprinter provides good roof space for solar power installation and for other accessories.

• Correct planning of the rack will help to arrange solar panels, making space for vents and other things.

• Roof-based solar power can generate electricity at 12V, 24V, or 48V based on a LiFePO4 battery bank.

• Placement of the solar panels is as important as the total wattage of the panels.

• Shadows caused by rooftop accessories can affect solar energy production.

• Weight distribution is important when installing several rooftop accessories.

• Planning of cabling must be done before solar panels are installed.

• Our team recommends designing the rack and solar installation together as a single project.

• Solar Guys Pro provides open communication and a Price Match Guarantee for eligible products.

Flatline Van Co Sprinter Standard Roof Rack

The Flatline Van Co. Sprinter Standard Roof Rack is a rooftop platform that can be installed on specific types of Mercedes-Benz Sprinter vans, such as high-roof vans. This is a way of providing a structural platform where equipment such as solar panels and ventilation devices can be installed on the roof.

Why the 144" High Roof Sprinter Needs a Smart Roof Plan?

Look, the roof of a high-roof Sprinter looks huge when you're standing beside it.

Then you start adding things.

• Solar panels

• Roof vents

• Fans

• An awning

• Antennas

• Maybe a Starlink system

Suddenly, that "huge" roof doesn't feel quite so big.

That's why a roof rack can be more than a simple accessory. It gives you a defined mounting structure and lets you plan where every component belongs before you start drilling holes or running cables through the van.

The 144" high-roof Sprinter is especially popular for camper and adventure conversions because it provides significant interior space. The roof is part of that usable real estate.

If you're building an off-grid electrical system, wasting that space doesn't make much sense.

Solar Is Where the Rack Gets Interesting

For us, the biggest opportunity is solar.

A roof rack can create a clean platform for mounting multiple solar modules while keeping other roof equipment organized.

You might build around a 12V LiFePO4 battery for a smaller electrical system. A larger build could use a 48V LiFePO4 battery bank with a higher-voltage solar array and inverter.

The rack doesn't determine your electrical architecture.

But it does influence how much solar you can physically install.

That's important.

A 400W solar panel and a 2,000W solar array have very different space requirements. Before buying panels, measure the usable roof area and account for every permanent obstruction.

Don't buy the solar system first and hope everything fits afterward.

If you're stuck figuring out how much solar will fit on your Sprinter, check out our solar kits or reach out to Solar Guys Pro. We can help you think through the physical and electrical sides together.

Our Pro Tip: Plan Around Shade, Not Just Panel Count

Here's a mistake that's easy to miss.

You can fit a lot of solar panels on a van roof and still end up with disappointing production if your equipment creates shadows across them.

Roof vents, antennas, storage boxes, and other accessories can cast shadows depending on the sun's position.

Even a relatively small shaded section can affect the output of a solar module.

Our approach is to map the roof before installation.

Look at where the sun will be during the parts of the day when you're most likely to need solar energy. Then position panels and accessories accordingly.

The goal isn't to fit the maximum number of panels. It's to get the maximum useful production from the space you have.

More Roof Space Doesn't Mean Unlimited Weight

A roof rack makes it tempting to keep adding equipment.

That's where you need to slow down.

Solar panels may not seem particularly heavy individually. Add a rack, mounting hardware, fans, vents, storage boxes, recovery gear, and other accessories, though, and the total weight starts climbing.

You also need to consider how that weight affects the van.

More weight can influence handling, braking, suspension behavior, and overall efficiency.

When we're building a van system, we think about the roof as part of the vehicle—not an empty shelf.

Keep heavy equipment where it makes sense and follow the vehicle and rack manufacturer's load specifications.

The Rack Also Helps With Installation Planning

There's something satisfying about working on a well-planned van roof.

You lay the panel down, line up the mounting points, tighten the hardware, and hear that solid little click as everything seats correctly.

Then you step back and look at the layout.

That's much better than realizing halfway through the installation that a roof fan is blocking your preferred solar-panel location.

A rack can give you more flexibility when positioning equipment, but you still need to verify mounting compatibility and load limits.

Don't assume every panel or accessory can be attached anywhere.

How-To: Plan a Sprinter Roof Rack Solar Setup

1. Measure the Usable Roof Area

Start with actual measurements.

Account for roof curves, existing mounting points, vents, antennas, and other equipment. Don't use the roof's overall length and width as your usable solar area.

2. List Every Roof Component

Write down everything that needs roof space.

Solar panels, fans, vents, awnings, antennas, storage, and other accessories should all have a planned location.

3. Choose Your Electrical Voltage

Decide whether your build will use a 12V, 24V, or 48V battery system.

For larger off-grid systems, 48V LiFePO4 can reduce current requirements compared with a 12V system at the same power level.

4. Plan Solar Panel Placement

Position panels to minimize shading and maximize available sunlight.

Don't automatically put the largest panel in the easiest location.

5. Plan Cable Routing

Figure out where your PV cables will enter the van before mounting the panels.

Keep cable runs practical and use appropriately sized conductors, connectors, fusing, and disconnects according to your system design.

6. Check Weight and Clearance

Confirm that your rack, panels, and accessories stay within the applicable load specifications.

Also check clearance for bridges, garages, trees, and other obstacles.

7. Test Everything Before Finalizing

Before tightening every component permanently, verify panel placement, cable routing, fan operation, and access to service points.

It's much easier to move a panel before the entire system is finished.

Why Does a Roof Rack Make a Van More Flexible?

A good Sprinter conversion is rarely built for one purpose.

Today, you might be camping.

Tomorrow, you're working remotely.

Next weekend, you're carrying bikes or extra equipment.

The roof rack can become part of that flexible system.

Instead of permanently filling the roof with one large piece of equipment, you can use the available structure to organize multiple functions.

That's particularly useful for off-grid builds where solar, ventilation, communication, and storage all compete for limited space.

Solar Power for 12V and 48V Van Builds

Your battery voltage also affects the way you design the rest of the system.

12V systems are used in smaller RV and van electrical systems. They are convenient when using many DC appliances, although heavy-duty applications might need a lot of current.

For instance, in theory, a 1,200W load uses around 100A on 12V before losses.

With 48V, that 1,200W load becomes around 25A.

One of the reasons larger van electrical systems are now being built using higher-voltage battery packs is to address this problem.

In both cases, LiFePO4 batteries are still the most preferred due to their high capacity and long cycle life.

The roof rack does not mind what voltage you are using.

Your wiring does.

If you're unsure which electrical architecture fits your Sprinter conversion, talk with our team before ordering your components.

Who Is the Flatline Van Co. Standard Roof Rack For?

The Flatline Van Co. Standard Roof Rack makes sense for Sprinter owners who want to use their roof for more than a single accessory.

It's especially useful for camper conversions, overland builds, work vans, and off-grid systems that need space for solar and other equipment.

For a 144" high-roof Sprinter, the rack can become part of a larger design strategy: solar above, living space below, and a carefully organized electrical system connecting everything together.

Semantic FAQ

Who is the Flatline Van Co. Standard Roof Rack designed for?

It's intended for compatible Sprinter van applications where owners need additional roof mounting space. It's particularly useful for camper, adventure, work, and off-grid conversions.

What can I mount on a Sprinter roof rack?

Depending on the rack configuration and manufacturer's specifications, a roof rack can support equipment such as solar panels and other van accessories. Always verify the rack's mounting and load requirements before installing equipment.

Where should solar panels go on the roof?

Place them where they receive strong sunlight with minimal shading from vents, antennas, storage, or other equipment. The best layout balances solar production with access to the rest of the roof.

Why use a roof rack for solar panels?

A rack provides a structured mounting platform and can help organize multiple roof components. It can also make it easier to plan solar around vents and other accessories.

How do I maximize solar on a 144" high-roof Sprinter?

Start by measuring usable roof space, then map every accessory before selecting your panels. Minimize shading, plan cable routing early, and match the solar array to your 12V, 24V, or 48V LiFePO4 electrical system.

Final Thoughts

The Flatline Van Co. Standard Roof Rack gives a 144" high-roof Sprinter something every van builder eventually needs: more usable space.

But the smartest build isn't necessarily the one with the most equipment on the roof. It's the one where the solar panels, vents, wiring, and accessories all work together without wasting space or adding unnecessary weight.

At Solar Guys Pro, we believe good builds start with good planning. We're committed to open, responsive communication, whether you're putting together your first van system or upgrading an existing one.

Ready to maximize your Sprinter's roof space? Contact Solar Guys Pro and ask about our Price Match Guarantee. We'll help you find the right solar and power equipment to make your van build more capable without making it unnecessarily complicated.
