Marine Battery Voltage Chart: Understand Charge Levels and Performance

When you’re out on the open water, reliable power isn’t just a convenience it’s a necessity. Whether you’re navigating, fishing, or powering onboard electronics, your boat’s battery is the heart of the system. To keep it running efficiently, understanding the Marine Battery Voltage Chart is crucial. This guide will break down how voltage reflects charge levels, performance, and overall battery health, helping you make informed decisions for long-term reliability.

This article will be published on Solar Guys Pro your trusted source for marine energy solutions, solar systems, and power accessories.

What Is a Marine Battery?

A marine battery is specifically engineered to power boats and other watercraft under demanding conditions. Unlike standard automotive batteries, marine batteries are designed to endure constant vibration, humidity, and temperature fluctuations—all while providing steady power for navigation systems, radios, lighting, and trolling motors.

There are three main types of marine batteries, each serving a different purpose:

1. Starting Batteries – Deliver high bursts of energy to start your engine quickly.

2. Deep-Cycle Batteries – Provide consistent power over extended periods, perfect for running onboard electronics.

3. Dual-Purpose Batteries – Offer a balance of both, suitable for smaller or multipurpose vessels.

Why the Marine Battery Voltage Chart Matters

The voltage of a battery directly indicates its state of charge (SoC) how much power is left before it needs recharging. By consulting a Marine Battery Voltage Chart, you can easily interpret whether your battery is fully charged, partially depleted, or in need of immediate recharging.

Without this knowledge, you risk undercharging or over-discharging the battery, both of which can shorten its lifespan or damage internal components.

Understanding Voltage and Charge Levels

Voltage is a measure of electrical potential difference, essentially showing how much stored energy the battery has available. For marine batteries, the most common nominal ratings are 12V and 24V, depending on your vessel’s electrical requirements.

• Fully charged: A 12V marine battery typically reads around 12.7 volts or higher.

• Half charged: The voltage drops to around 12.2 volts.

• Fully discharged: Anything below 11.9 volts signals a depleted battery.

As voltage decreases, performance also drops—lights dim, motors slow, and electronics malfunction. Understanding these numbers ensures you can prevent downtime and maintain consistent performance while out at sea.

Marine Battery Voltage Chart (12V and 24V Systems)

Use this chart as a quick reference guide when checking your marine battery’s charge level with a multimeter.

The Relationship Between Voltage and Battery Performance

A higher voltage reading indicates a greater amount of stored electrical energy. When voltage drops below a certain threshold, the battery’s ability to deliver consistent current weakens, affecting overall system performance.

For instance:

• At 12.7V, your marine battery is running efficiently and delivering optimal performance.

• At 12.2V, you’ll notice reduced output from accessories like lighting or navigation systems.

• Below 12.0V, you risk incomplete engine starts or even total power failure.

This correlation between voltage and usable energy makes regular monitoring essential, especially during long boating trips.

Deep-Cycle vs. Starting Batteries: Voltage Differences

While both are 12V systems, deep-cycle and starting batteries behave differently under load.

• Deep-Cycle Batteries maintain voltage consistency over time, even as they discharge slowly.

• Starting Batteries provide short bursts of high current and drop voltage faster after use.

If you rely heavily on electronics, a deep-cycle battery offers a more reliable voltage curve, ensuring your devices perform without sudden power drops.

How Temperature Affects Voltage Readings

Temperature plays a significant role in battery performance and voltage readings:

• Cold temperatures slow chemical reactions inside the battery, lowering voltage temporarily.

• Hot temperatures can increase voltage but also accelerate degradation over time.

For accurate readings, it’s best to measure voltage when the battery is at room temperature (around 77°F or 25°C).

Best Practices for Marine Battery Maintenance

To get the most out of your marine battery, follow these tips:

1. Check Voltage Regularly – Use a digital multimeter to monitor charge levels weekly, especially before and after long trips.

2. Avoid Deep Discharge – Keep voltage above 12.0V whenever possible to extend battery life.

3. Use a Smart Charger – Automatically adjusts charge rate to prevent overcharging.

4. Store Properly – When not in use, disconnect and store the battery in a cool, dry place.

5. Clean Terminals – Salt and corrosion can lead to voltage loss and poor performance.

Routine maintenance ensures optimal charge retention and helps avoid costly replacements.

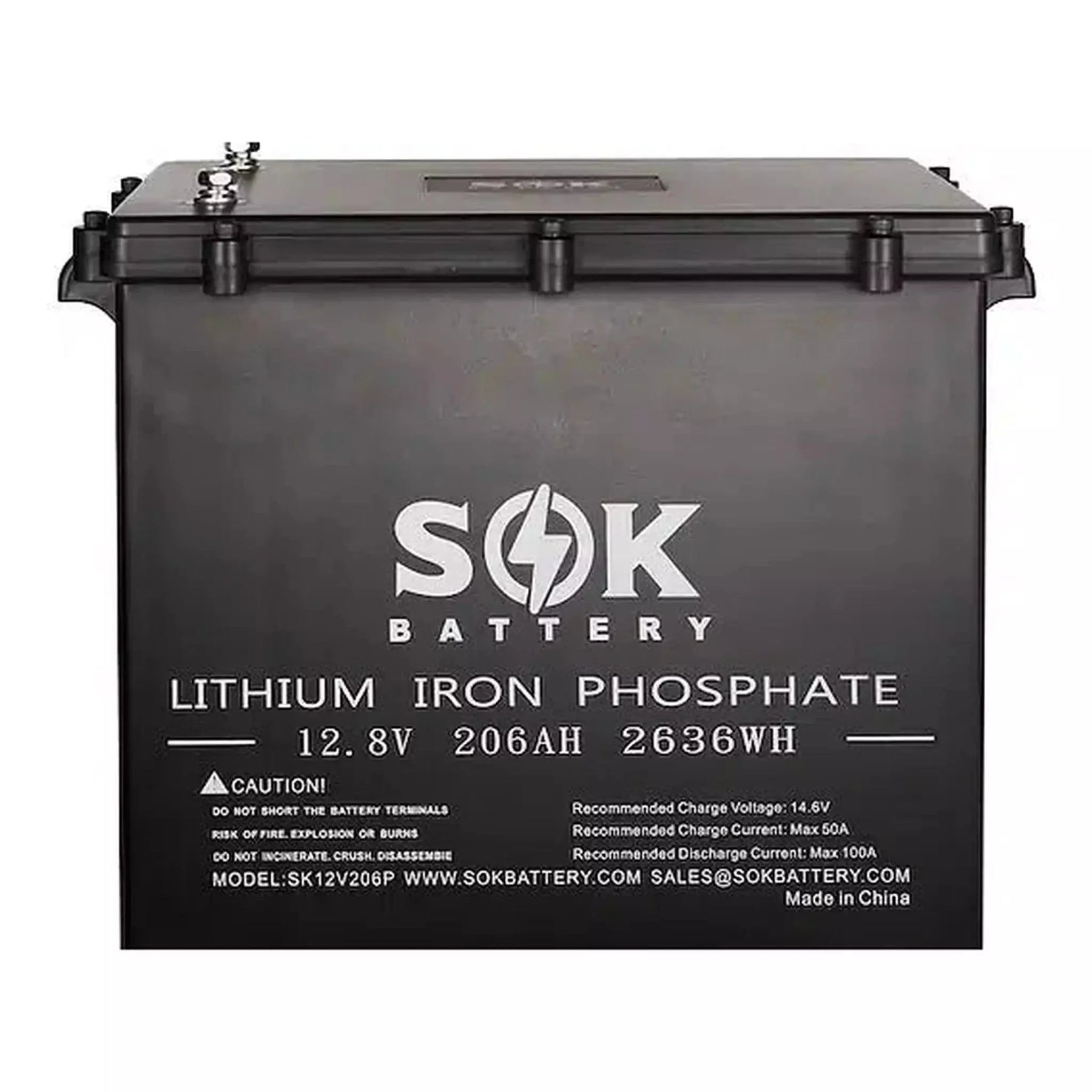

Choosing the Right Marine Battery

When choosing a battery for your vessel, consider:

• Capacity (Ah rating) – Determines how long the battery can power your equipment.

• Voltage Compatibility – Match the battery voltage to your boat’s electrical system (12V or 24V).

• Battery Type – Lithium-ion marine batteries are lighter and last longer than lead-acid versions.

A solid understanding of the Marine Battery Voltage Chart will help you select the perfect model for your energy requirements and budget.

The Role of Solar Charging in Marine Systems

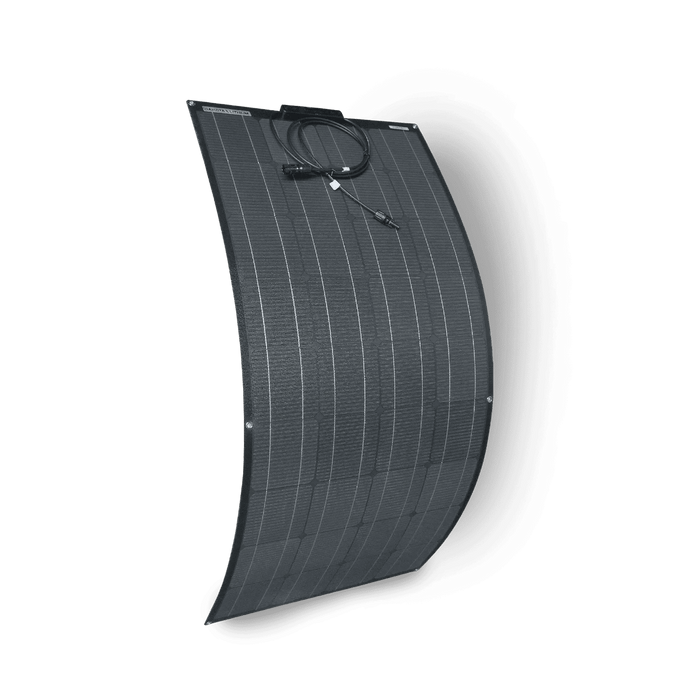

Many boat owners now pair their batteries with marine solar panel kits for sustainable charging. Solar setups reduce dependency on shore power and extend your time on the water.

Solar charge controllers regulate voltage levels to prevent overcharging—keeping your marine battery operating safely and efficiently.

Troubleshooting Low Voltage Issues

If your voltage reading drops unexpectedly:

• Check for loose connections or corrosion.

• Verify that onboard devices aren’t drawing excessive current.

• Use a load tester to ensure the battery still holds charge.

Persistent low voltage may indicate an aging or failing battery that needs replacement.

Conclusion

Understanding the Marine Battery Voltage Chart is essential for keeping your boat’s electrical system in peak condition. Voltage readings aren’t just numbers—they reveal the health, charge level, and performance potential of your marine battery. By regularly monitoring these values, maintaining proper charge levels, and selecting the right battery type, you can ensure dependable power on every voyage.
