Modular Heavy-Duty Power: Building High-Capacity 12V/24V/48V Banks with Lifeline 2V 900Ah AGM Cells

If you're building a serious off-grid battery bank, the Lifeline GPL-6CT-2V AGM battery gives you a modular way to build 12V, 24V, or 48V storage from individual 2V, 900Ah deep-cycle cells. Six cells in series make a 12V bank, twelve make 24V, and twenty-four make 48V, with each series string retaining its 900Ah capacity.

This is a lot of battery.

But once you get to this point, the difficulty is not just getting more amp hours. It is making sure that everything from voltage, charging system, cable, protection, support, and load fit together well.

Key Takeaways

• The Lifeline GPL-6CT-2V is a 2V deep-cycle AGM battery with a rating of 900Ah on the 20hr rate.

• The use of six cells connected in series gives a nominal 12V, 900Ah system, which is equivalent to 10.8kWh nominal capacity.

• A system of twelve cells connected in series gives a nominal 24V, 900Ah system, or about 21.6kWh nominal capacity.

• Finally, the use of twenty-four cells in series produces a nominal 48V, 900Ah system, or 43.2kWh nominal capacity.

• Each cell weighs 90 lb, hence a 48V system of 24 cells will weigh around 2 Don't use lithium charging profiles on a Lifeline AGM bank.

• Higher system voltage dramatically reduces current for the same power, making 48V much more practical for large inverter systems.

• Our biggest pro tip: design the physical battery rack before ordering the cells. At this scale, floor loading and service access can become bigger problems than electrical capacity.

Battery description:

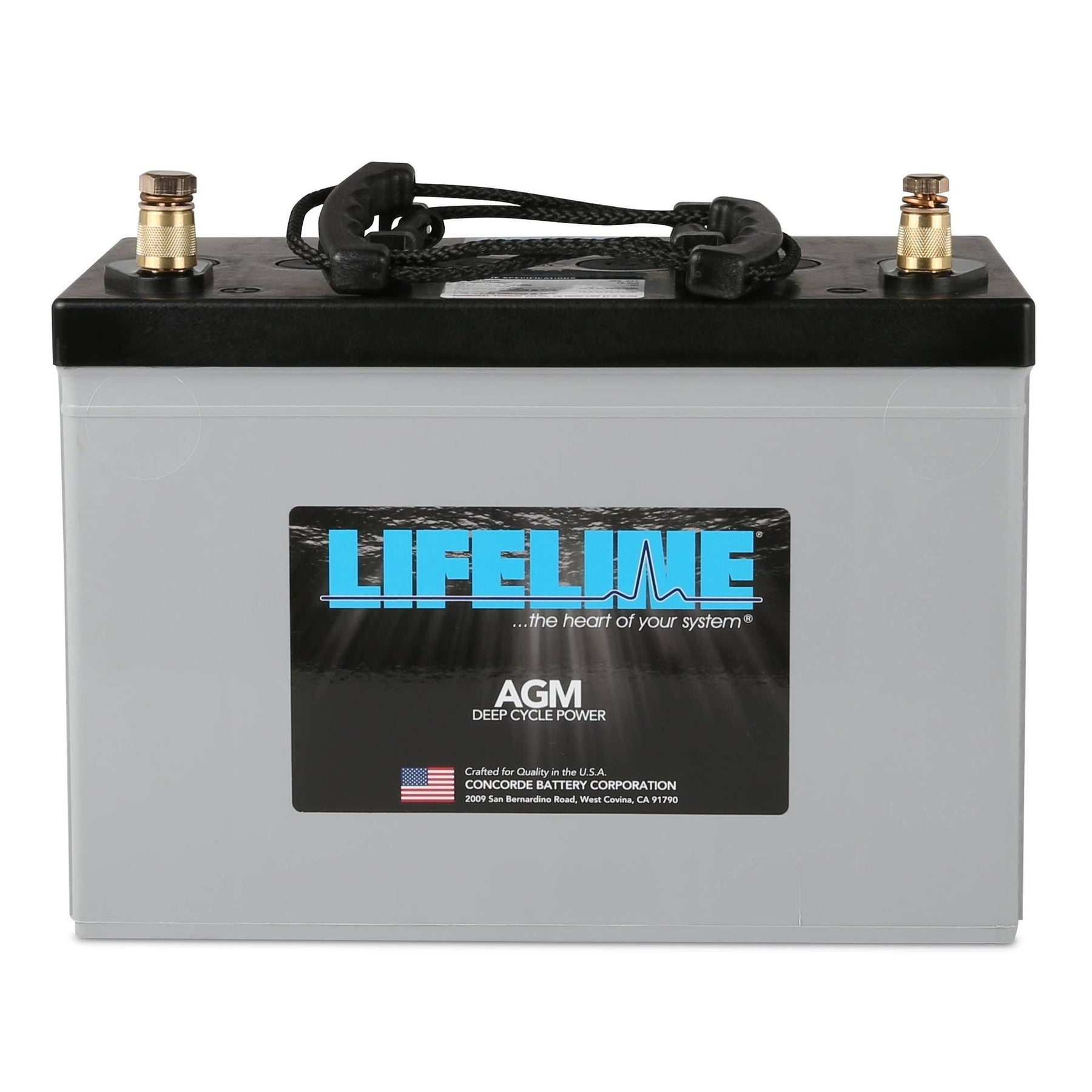

Lifeline GPL-6CT-2V AGM Battery

The Lifeline GPL-6CT-2V battery is a 2V AGM deep cycle battery with a 900Ah capacity at the 20-hour rate. The battery has a size of approximately 10.28 x 7.06 x 13.02 inches and has a weight of 90 lbs. The battery is a suitable choice for creating 12V, 24V, and 48V battery packs since multiple batteries can be wired in series to form the packs.

Why Start With 2V Cells?

Here's the deal: modularity becomes extremely useful when you're building a large stationary battery system.

A conventional 12V battery gives you a fixed voltage and capacity. If you need more storage, you add another battery or bank. With 2V cells, you can build the system voltage you actually need from the ground up.

The Lifeline GPL-6CT-2V is rated at 900Ah at the 20-hour rate. Lifeline lists the cell at 2V, with dimensions of approximately 10.28 inches long, 7.06 inches wide, and 13.02 inches high. Current Lifeline specifications list the weight at about 90 pounds.

That last number deserves attention.

When we handle large AGM cells, they're not something you casually move around with one hand. You feel the weight immediately. The built-in lifting handles help, but 90 pounds is still 90 pounds.

And you're not moving just one.

Building a 12V, 24V, or 48V Bank

The basic electrical rule is simple: series connections increase voltage while keeping amp-hours the same.

For a 12V system, you connect six 2V cells in series. The result is 12V at 900Ah, giving approximately 10.8kWh of nominal stored energy.

For 24V, you use twelve cells in series. That's 24V at 900Ah, or approximately 21.6kWh nominal.

For 48V, you need twenty-four cells in series. That produces 48V at 900Ah, or approximately 43.2kWh nominal.

The math is:

Volts × amp-hours = watt-hours

So:

12V × 900Ah = 10,800Wh

24V × 900Ah = 21,600Wh

48V × 900Ah = 43,200Wh

Those are nominal energy figures, not promises about how much usable energy you'll actually get. Battery performance depends on discharge rate, temperature, system limits, and the manufacturer's operating guidance.

Lifeline rates the GPL-6CT-2V at 900Ah using a 20-hour rate, so you shouldn't assume the same capacity will appear under every possible load.

Why 48V Makes More Sense for Big Inverters?

This is where higher voltage really earns its keep.

Imagine you're powering a 6,000W inverter load.

At 12V, the theoretical DC current is about:

6,000W ÷ 12V = 500A

At 24V:

6,000W ÷ 24V = 250A

At 48V:

6,000W ÷ 48V = 125A

Real systems will draw more because inverters aren't 100% efficient, but the relationship is what matters.

Higher voltage means less current for the same power.

That can mean smaller conductors than you'd need at 12V, lower voltage drop, easier busbar design, and less stress on the DC distribution system.

That's why we'd generally look toward 48V when a large stationary solar system has substantial inverter loads.

But don't assume every accessory should suddenly become 48V.

A 48V LiFePO4 battery system, for example, can still supply 12V equipment through a properly sized DC-DC converter. Your battery voltage and your accessory voltage don't have to be identical.

AGM vs. LiFePO4: Don't Mix the Rules

We need to make this distinction very clear.

The Lifeline GPL-6CT-2V is AGM, or Absorbed Glass Mat, technology. Lifeline describes its batteries as maintenance-free AGM batteries and lists the GPL-6CT-2V specifically as a deep-cycle AGM model.

LiFePO4, or lithium iron phosphate, is a different chemistry.

Lithium can offer excellent energy density and strong cycle performance, but its charging requirements, protection electronics, temperature behavior, and battery-management architecture are different.

Don't buy a 48V lithium charger and assume you can use it on a 48V Lifeline AGM bank.

The voltage label isn't enough.

The charging profile needs to match the chemistry and manufacturer's specifications.

If you're converting an existing solar system from AGM to LiFePO4, check the inverter/charger, solar charge controller, alternator charger, and other charging sources individually.

If you're unsure, check out our solar kits and reach out to our team before changing the battery chemistry. It's much easier to solve compatibility issues before the new bank is installed.

The Comparison: 12V vs. 24V vs. 48V

The 12V configuration is the smallest of the three. Six GPL-6CT-2V cells provide 900Ah and about 10.8kWh nominal energy. It's useful when the rest of the system already revolves around 12V equipment, but high-power inverter loads can push the DC voltage very high.

The 24V configuration doubles the system voltage while keeping the 900Ah capacity. Twelve cells provide about 21.6kWh nominal energy. It's a useful middle ground for systems that are too demanding for 12V but don't require a full 48V architecture.

The 48V configuration uses twenty-four cells and provides about 43.2kWh nominal energy. For serious stationary solar and high-power inverter applications, the lower current at 48V is the major attraction.

The important point is that series-connected cells don't increase Ah.

Six 2V, 900Ah cells do not become 5,400Ah at 12V.

They become 12V, 900Ah.

That's a common calculation mistake, and it can lead to badly oversized or undersized system expectations.

A Pro Tip Most People Miss: Design the Rack First

Here's our big one.

Don't start the battery design with the inverter. Start with the room.

With smaller battery systems, you can sometimes get away with figuring out physical placement later. With 90-pound cells, that's a bad strategy.

Measure the installation area. Check doorways. Look at how the cells will be transported. Confirm the floor can support the finished bank. Leave enough room to inspect terminals, clean the area, replace a cell if necessary, and safely work around the connections.

Then build the electrical architecture around that physical reality.

We call this the "last cell problem." You can have enough room for 23 cells, but if the 24th cell can't be accessed or the rack can't handle the completed weight, your beautifully calculated 48V bank isn't a finished system.

For large AGM installations, serviceability is part of the design.

If your battery room layout is giving you headaches, check out our kits and talk with us before ordering. A five-minute conversation can save a lot of rearranging later.

How-To: Build a High-Capacity Lifeline AGM Bank

1. Choose the System Voltage

Decide whether your inverter and overall architecture should operate at 12V, 24V, or 48V.

Don't choose based only on battery capacity. Look at the inverter's DC input voltage, expected continuous load, surge requirements, wire lengths, and available charging equipment.

2. Calculate the Cell Count

Use six GPL-6CT-2V cells for 12V, twelve for 24V, or twenty-four for 48V.

If you need more capacity at the same voltage, additional series strings can be paralleled, but parallel battery strings require careful current sharing, protection, and interconnection design.

3. Design the Battery Rack

Account for the physical dimensions and roughly 90-pound weight of each cell.

Don't forget the weight of the rack itself.

4. Install Proper DC Protection

Use appropriately rated disconnects, fuses, busbars, and conductors.

A large AGM bank can deliver enormous fault currents. Lifeline publishes very high short-circuit-current figures for its 2V cells, which is a good reminder that battery protection isn't optional.

5. Connect the Cells Correctly

For series connections, connect the positive terminal of one cell to the negative terminal of the next.

Take your time here.

Check polarity before making the final system connection.

6. Match the Charger to AGM

Configure your inverter/charger and solar charge controller for the correct Lifeline AGM charging requirements.

Don't copy settings from a LiFePO4 installation.

Use the manufacturer's current charging guidance for your exact battery and system.

7. Commission and Monitor the Bank

Before placing the system under heavy load, verify voltage, polarity, connections, protection, and charging behavior.

Then monitor the bank during real operation.

A battery monitor can tell you much more than a simple voltage reading when you're trying to understand how a large bank is behaving.

Where Does Solar Fit Into a Bank This Large?

A 43.2kWh nominal 48V AGM bank needs serious charging capability if you intend to cycle it regularly.

That means your solar array, MPPT charge controller, generator, or other charging sources need to be sized around the actual energy you expect to replace.

And there's another important point: don't assume a giant battery automatically means a giant solar array is required immediately.

You can build storage for backup purposes and recharge it more slowly if your use case allows.

Or you can pair substantial solar production with the bank for frequent cycling.

The right answer depends on how much energy you consume each day, how deeply you discharge the AGM bank, and how quickly you need to recover that energy.

If you're building around solar, our team can help you match the battery bank to the array and charging equipment instead of treating each component as a separate purchase.

Common Mistakes With Large AGM Banks

The first mistake is underestimating weight.

The second is choosing 12V simply because "12V is what RVs use." That can make high-power inverter systems unnecessarily difficult because current rises rapidly as voltage falls.

The third is mixing batteries with different ages, capacities, or conditions without considering how that affects the bank.

Another mistake is forgetting that 900Ah is a 20-hour rating. Battery capacity isn't a universal number that stays identical at every discharge rate. Lifeline's published discharge figures illustrate why load profile matters.

And finally, don't bury the batteries where you can't inspect them.

A high-capacity bank should be accessible enough to check connections, wiring, protection, and overall condition.

Semantic FAQ

Who is the Lifeline GPL-6CT-2V best for?

The Lifeline GPL-6CT-2V is aimed at users who need large deep-cycle AGM storage and want to build a bank around individual 2V cells. It's particularly interesting for stationary solar, backup power, marine, RV, and other demanding applications where modular series configurations are useful.

What is the capacity of the GPL-6CT-2V?

The GPL-6CT-2V is rated at 900Ah at the 20-hour rate and has a nominal voltage of 2V. Six cells connected in series produce a 12V, 900Ah bank.

Where can these 2V cells be used?

They can be configured into larger battery systems for applications such as RV, marine, backup, and off-grid power. The exact installation needs to account for weight, charging, ventilation, protection, wiring, and applicable electrical requirements.

Why choose 2V AGM cells instead of a conventional 12V battery?

The modular 2V format gives you more flexibility when designing a large bank around 12V, 24V, or 48V architectures. It also allows the system designer to build a series string from individual deep-cycle cells rather than relying on a single fixed-voltage battery package.

How many GPL-6CT-2V cells do I need for 48V?

You need 24 cells connected in series to create a nominal 48V, 900Ah bank. That represents approximately 43.2kWh of nominal energy before accounting for usable-depth limits, conversion losses, discharge rate, temperature, and other system factors.

Final Thoughts: Build the Bank Around the System

With 2V, 900Ah AGM cells, you can build a 12V, 24V, or 48V bank around the needs of the system. At 48V, the same 900Ah capacity represents roughly 43.2kWh of nominal storage, while the higher system voltage dramatically reduces current compared with a 12V architecture.

But the numbers are only half the job.

You need the right charger. The right inverter. Proper DC protection. Correct conductors. A strong battery rack. And enough physical space to actually service the bank.
