Whole-Home Independence: How the EG4 18kPV Hybrid Inverter Replaces Gas Generators and Cuts Grid Dependency

The EG4 18kPV Hybrid Inverter is a control hub of a modular home solar-battery system that uses solar power, a 48V battery pack, and a grid connection to ensure the functioning of critical appliances without having to rely as much on the grid or a generator. The EG4 hybrid inverter can provide up to 12kW of AC output capacity and can handle considerable solar power input.

We like this kind of system because it changes the way you think about backup power. Instead of waiting for the grid to fail and dragging a generator outside, you're building an energy system that can produce, store, and manage electricity every day.

Key Takeaways

• The EG4 18kPV is a 48V split-phase hybrid inverter designed for 120/240V residential power systems.

• It provides 12kW of continuous AC output and supports up to 18kW of PV input, with EG4 recommending up to 21kW of PV input under its specified configuration.

• Three MPPTs and up to 600V DC PV input allow large solar arrays with less DC cable current than low-voltage solar architectures.

• A 48V LiFePO4 battery bank is a practical foundation for this class of system.

• The inverter can operate in off-grid, grid-assist, and grid-connected configurations, giving homeowners several ways to manage energy.

• Up to 10 EG4 18kPV units can be paralleled for larger systems.

• The real advantage isn't simply replacing a generator. It's reducing how often you need outside power in the first place.

• Our pro tip: size the battery around your nighttime and outage loads, not around the inverter's maximum 12kW output.

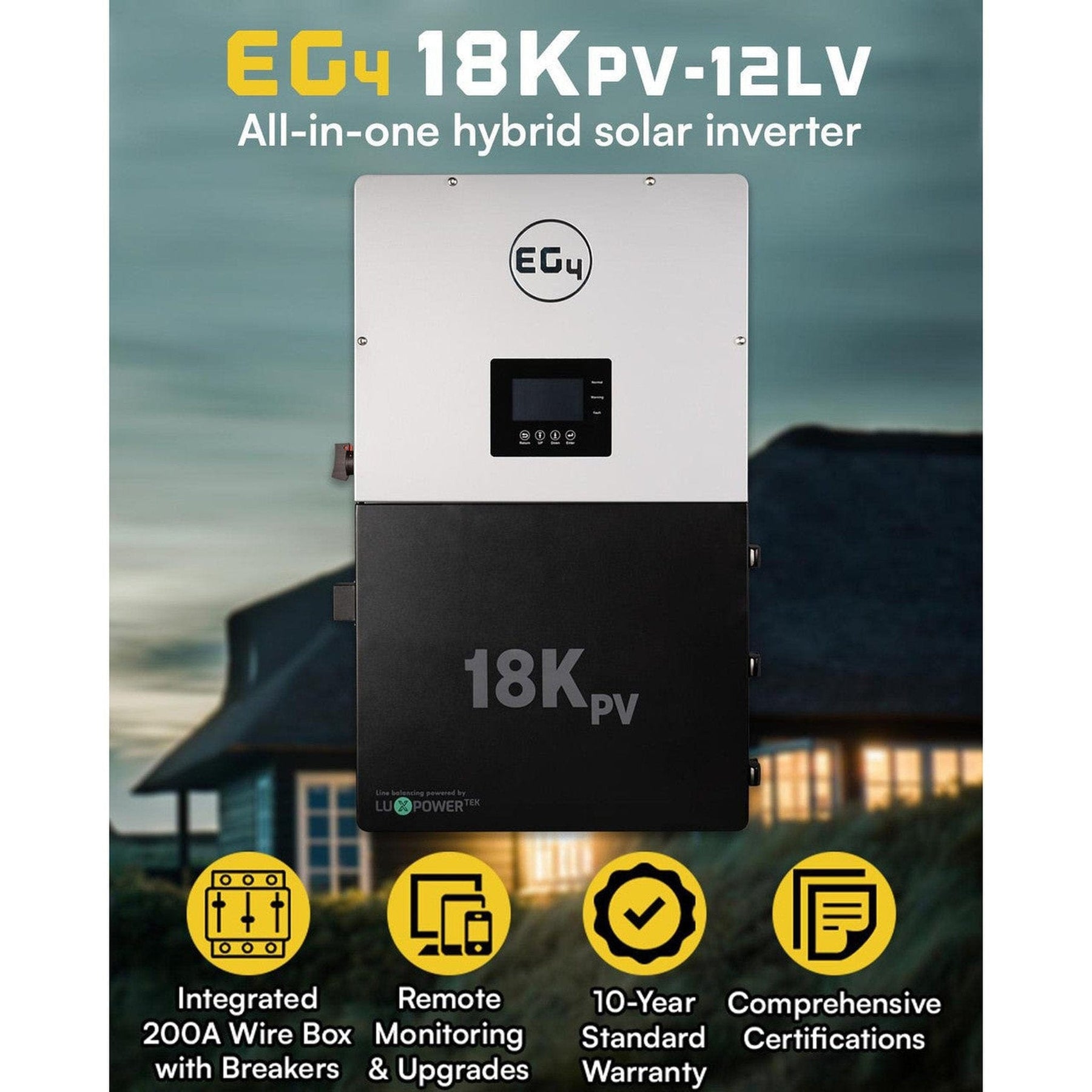

EG4 18kPV Hybrid Inverter

The EG4 18kPV Hybrid Inverter is an inverter/charger of the split‑phase type that operates at 48 volts. It is intended for off‑grid solar applications on a larger scale. The EG4 18kPV Hybrid Inverter can take up to 18 kilowatts of power from PV panels. The EG4 18kPV Hybrid Inverter can deliver 12 kilowatts of AC power output. The EG4 18kPV Hybrid Inverter can work with 120/240 volt loads. The EG4 18kPV Hybrid Inverter can be paired with a 48‑volt battery system.

Why the EG4 18kPV Changes the Generator Equation

A gas generator is excellent at one thing: producing electricity when you need it.

But it has to burn fuel every time you want that electricity.

Solar works differently. Once the panels are installed, sunlight becomes your fuel source. The battery then gives you a way to carry some of that energy into the evening, overnight, or through a cloudy stretch.

That's where the EG4 18kPV fits.

The inverter regulates the interaction between your solar panel system, 48V battery system, loads, and grid connection. Based on the configuration of the system, the inverter may act as a backup power supply, grid assist, off-grid system, or feed power back to the grid if allowed by law.

So, yes, it can reduce your dependence on a gas generator.

But I wouldn't think of it as simply "a generator replacement."

It's closer to an energy-management hub.

12kW of Output Doesn't Mean You Need a 12kW Battery

Here's a mistake we see all the time.

Someone sees "12kW inverter" and immediately starts shopping for enough batteries to deliver 12kW continuously.

That's not necessarily the right approach.

The inverter's output rating tells you how much AC power the system can deliver. Your battery capacity tells you how long you can sustain those loads.

Those are two different questions.

For example, a home might have a refrigerator, lights, internet equipment, well pump, freezer, and a few outlets running during an outage. The instantaneous load may be several kilowatts, but the average load over the night could be much lower.

That's why we prefer to start with the actual load profile.

If your home consumes 2kW on average during a six-hour overnight period, that's roughly 12kWh before accounting for system losses and reserve capacity. That's a very different battery requirement than trying to support 12kW continuously.

This is one of the biggest ways a properly planned battery system beats simply buying the biggest generator you can afford.

If you're stuck on the math, check out our solar kits or reach out to our team. We can help you work backward from your actual loads.

Why 48V Makes Sense at This Scale?

The EG4 18kPV is designed around a 48V battery architecture, and that's a major advantage for a large residential system.

Think about the current involved.

A 12,000W load at 12V would theoretically require about 1,000 amps before accounting for inverter losses.

At 48V, that same 12,000W load is about 250 amps.

That's still serious current, but it's dramatically easier to manage.

Lower current means smaller conductors can potentially be used for equivalent power transfer, lower resistive losses, and a more practical battery-bank architecture.

This is why we generally don't recommend building a system this large around a 12V battery bank.

A 12V LiFePO4 battery is fantastic for many RVs, vans, cabins, and smaller off-grid systems. For whole-home power at this scale, 48V LiFePO4 is much more appropriate.

And when you handle the battery cabling, you notice the difference. These aren't little automotive wires. We're talking about substantial conductors and serious connection hardware. When properly torqued, the lugs should feel solid and the connection shouldn't move under hand pressure.

That's the kind of detail that matters more than flashy numbers on a product page.

High-Voltage Solar Makes Large Arrays Easier to Manage

The EG4 18kPV supports PV input up to 600V DC and uses three MPPTs. EG4 lists 18kW of PV input capability and recommends up to 21kW under its specified design conditions.

Why does that matter?

Because solar-array voltage affects current.

For the same amount of power, higher voltage means lower current. That can simplify conductor sizing and reduce voltage drop across longer PV runs.

It also means your string design matters.

You can't just connect a random number of panels until you hit some target wattage. You need to calculate the string's operating voltage, open-circuit voltage, current, temperature effects, and the inverter's MPPT operating range.

Pro tip: don't design your PV strings using the panel's normal operating voltage alone. Check the panel's cold-weather open-circuit voltage and make sure the string stays below the inverter's maximum DC input voltage under the coldest expected conditions.

That's one of those details that looks boring on a spreadsheet but can save an expensive mistake.

Solar Doesn't Have to Do Everything

Another misconception is that going solar means completely eliminating the grid.

Not necessarily.

The EG4 18kPV can be configured for different operating modes, including grid-assist and off-grid operation. That flexibility means you can use the grid as a backup resource while still shifting a large portion of your energy consumption toward solar and stored battery power.

Think of it as reducing dependence rather than chasing an arbitrary "zero grid" number.

Maybe your solar handles daytime loads.

Your battery handles evening consumption.

The grid covers unusual high-demand periods.

And during an outage, the battery and solar take over the critical loads.

That can dramatically reduce generator runtime while giving you a much quieter backup system.

If you're planning a system around energy independence rather than just emergency backup, our team can help you map those priorities before you start buying equipment.

How the EG4 18kPV Can Replace Generator Runtime?

A generator often gets used because the battery is empty.

Solar changes that cycle.

During the day, the PV array supplies your loads while also charging the 48V LiFePO4 battery bank. As evening arrives, the stored energy can take over.

If the next day brings good sunlight, the battery can recharge again.

You aren't burning gasoline just because the sun went down.

That's the key difference.

A generator may still make sense as an extreme-weather or extended-outage backup. We don't tell people to throw theirs away. A prolonged storm can produce several days of poor solar conditions, and having another energy source is smart.

The goal is to make the generator the last line of defense, not the first thing that starts every time the grid drops.

How-To: Build an EG4 18kPV Whole-Home System

1. Audit Your Loads First

List the appliances and circuits you actually want powered.

Separate critical loads from optional loads. Refrigeration, lighting, communications, medical equipment where applicable, pumps, and heating controls may deserve priority over electric dryers or other high-demand appliances.

2. Choose the Battery Capacity

Build the battery bank around your expected energy use during the period when solar isn't producing.

For many systems, 48V LiFePO4 is the practical chemistry because of its energy density, cycle life, and suitability for stationary storage.

Don't size the battery solely around the inverter's 12kW output.

3. Design the PV Array

Determine how much daily energy your home needs, then size the PV array around your solar resource, roof or ground-mount space, seasonal conditions, and battery-charging requirements.

Check every string's voltage and current against the EG4 18kPV specifications.

4. Plan the 120/240V Service

The EG4 18kPV provides split-phase output for 120/240V applications.

This matters for homes with larger 240V loads, but don't assume every high-power appliance should automatically be backed up. Prioritize the circuits that matter.

5. Install Proper DC Protection

This is where we slow down.

Battery disconnects, overcurrent protection, appropriately sized conductors, grounding, and connection hardware aren't optional accessories. They're part of the system.

When we're assembling a large battery connection, we're looking for clean lug surfaces, proper torque, secure cable routing, and no accidental strain on the terminals.

6. Configure Monitoring

The EG4 18kPV supports remote monitoring through EG4's monitoring platform and Wi-Fi connectivity.

Use it.

A monitoring system lets you see whether your solar array is producing what you expected, how much energy the home is using, and whether the battery is charging or discharging as planned.

7. Test the System Under Real Loads

Don't stop after seeing the inverter power up.

Turn on representative loads and watch what happens. Check voltage, current, battery behavior, and load transitions.

A system should be tested before you discover its weak point during a storm.

Modular Expansion Is the Bigger Story

One of the best things about the EG4 18kPV is that you don't necessarily have to design your final system on day one.

EG4 states that up to 10 units can be paralleled, allowing substantially larger AC capacity for systems that need it.

That's useful for large homes, workshops, agricultural buildings, and other properties with serious electrical demands.

But modular doesn't mean careless.

Every additional inverter increases the importance of proper load balancing, battery capacity, wiring, protection, and system configuration.

Build the foundation correctly first.

Then scale.

EG4 18kPV vs. Smaller Hybrid Inverters

A smaller hybrid inverter may be perfectly adequate for a cabin or a modest backup system. If your essential loads are only a few kilowatts, there's no reason to install a massive inverter just because you can.

The EG4 18kPV makes more sense when you need substantial 120/240V capacity and want room for a large PV array and 48V battery storage.

Compared with a traditional gas generator, the difference is even more noticeable. The generator gives you power when running. The solar-battery system can provide power quietly while also reducing your normal grid consumption.

And compared with a low-voltage 12V or 24V architecture, the 48V battery side is much more practical for high-power whole-home applications.

The right tool depends on the job.

Semantic FAQ

Who is the EG4 18kPV Hybrid Inverter for?

The EG4 18kPV is aimed at homeowners and larger property owners who need substantial 120/240V power, solar input, and 48V battery storage. It's especially well suited to whole-home backup, off-grid properties, workshops, and systems designed to reduce grid dependence.

What does the EG4 18kPV actually provide?

The inverter provides 12kW of continuous AC output and supports up to 18kW of PV input, with three MPPTs and up to 600V DC PV input. It uses a 48V battery architecture and provides split-phase 120/240V output.

Where should the EG4 18kPV be installed?

The current EG4 18kPV is listed with a NEMA 4X enclosure and is designed for appropriate indoor or outdoor installations when installed according to its requirements. The installation location still needs proper clearances, electrical protection, environmental consideration, and code compliance.

Why use the EG4 18kPV instead of a gas generator?

A generator burns fuel whenever it operates, while a solar-battery system can use stored solar energy without running an engine. The EG4 18kPV can also manage solar, batteries, and grid power, so the generator can become a backup to the backup rather than your everyday source of emergency electricity.

How do you size the battery for an EG4 18kPV?

Start with your expected energy consumption during the hours when solar production is low, then account for usable battery capacity, system losses, reserve capacity, and battery discharge limits. A 48V LiFePO4 battery bank is a practical starting point, but the final capacity should come from your actual load profile rather than the inverter's 12kW rating.

Whole-Home Independence Is a System, Not One Box

The EG4 18kPV is powerful, but the inverter alone isn't what creates energy independence.

The real system is the combination of solar panels, a 48V LiFePO4 battery bank, proper DC protection, 120/240V distribution, load management, and intelligent energy control.

Get those pieces working together and the gas generator starts looking less like your primary backup and more like an emergency tool you hope you never need.
