AGM Battery Voltage Chart: Understanding Charge Levels and Performance

When managing a solar setup, RV system, or off-grid power solution, knowing your battery’s charge level is essential for reliable energy performance. One of the best ways to monitor that is by using an AGM Battery Voltage Chart. This chart helps you interpret voltage readings to understand the state of charge, battery health, and efficiency.

At Solar Guys Pro, we specialize in dependable energy storage solutions designed for solar and off-grid systems. In this guide, we’ll break down how AGM batteries work, how to interpret their voltage charts, and how to keep them performing at their best.

What Is an AGM Battery and How Does It Work?

AGM stands for Absorbent Glass Mat, a type of sealed lead-acid battery designed for improved durability and maintenance-free performance. Instead of liquid electrolytes sloshing around, AGM batteries use fiberglass mats that hold the electrolyte in place between lead plates.

This design makes them:

• Spill-proof and vibration-resistant

• Maintenance-free (no need to add water)

• Faster to charge and discharge

• Ideal for solar power systems, RVs, boats, and backup power setups

AGM batteries deliver reliable performance even in demanding environments. Because of their sealed design, they can be mounted in various orientations and used indoors without worrying about fumes or leakage.

Why Understanding AGM Battery Voltage Matters

Voltage readings reveal a lot about your battery’s condition. Every AGM battery has a specific voltage range that corresponds to its state of charge (SOC).

For example:

• A fully charged 12V AGM battery will read around 12.8V to 13.0V.
• A discharged battery may drop to 10.5V or lower.

By consulting an AGM Battery Voltage Chart, you can quickly determine how much usable energy remains and when it’s time to recharge — avoiding deep discharges that reduce battery lifespan.

12V AGM Battery Voltage Chart

A 12V AGM battery is the most common type used in small solar systems, RVs, and portable power setups. Below is a simple chart showing how voltage correlates with charge level:

Pro Tip: Avoid letting your AGM battery drop below 50% regularly. Frequent deep discharges can shorten its lifespan.

24V AGM Battery Voltage Chart

24V AGM batteries are common in mid-size solar installations or home backup systems where more power storage is needed.

A 24V system typically pairs well with medium-sized solar kits or off-grid homes using inverters between 1000W–3000W.

48V AGM Battery Voltage Chart

Larger systems, such as full off-grid homes, commercial setups, or farms, often rely on 48V AGM batteries. These handle heavier power demands and longer runtimes.

A 48V AGM system is ideal for larger off-grid homes, cabins, or farms that run higher loads through inverters rated at 5000W or more.

Factors That Affect AGM Battery Voltage

Several factors can influence how your voltage readings appear on a meter. Understanding these helps ensure accurate interpretation of your AGM Battery Voltage Chart:

1. Temperature:
   Cold temperatures can lower voltage readings, while hot environments can increase them. Most charts assume readings at 77°F (25°C).

2. Battery Age:
   As AGM batteries age, their ability to hold a charge decreases, slightly affecting voltage levels.

3. Charging or Resting State:
   Always check voltage after the battery has been resting (no load or charge) for at least 4–6 hours for accurate readings.

4. Load and Current Draw:
   Heavy loads cause temporary voltage drops. Allow the battery to rest before measuring.

5. Manufacturer Differences:
   Each brand may vary slightly in voltage thresholds, so always cross-check with the manufacturer’s specifications.

Understanding Depth of Discharge (DoD)

Depth of Discharge (DoD) tells you how much of your battery’s capacity has been used.

Example:

• A 300Ah battery at 50% DoD = 150Ah used
• At 80% DoD = 240Ah used (but reduces lifespan)

High-capacity batteries allow you to use more energy while staying within safe limits.

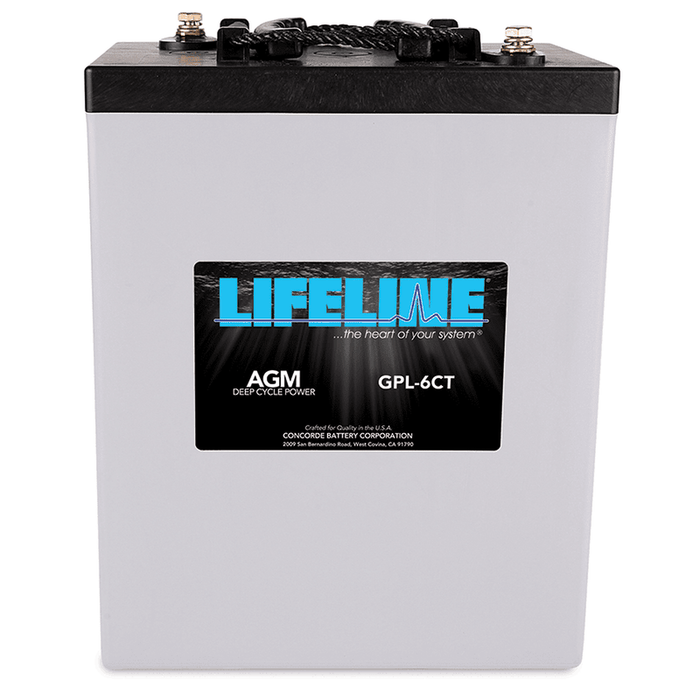

For instance, a battery like the Lifeline GPL-6CT 6V 300Ah AGM Battery provides substantial storage capacity, making it easier to stay above 50% charge even in demanding RV or solar applications.

Advantages of AGM Batteries in Solar Systems

Choosing AGM batteries for your solar or backup setup comes with several key advantages:

Maintenance-Free: No need to refill water or clean corrosion like flooded batteries.
Sealed and Safe: No gas emissions or leaks, perfect for indoor or mobile use.
High Discharge Rates: Provides reliable power during peak loads.
Durable Design: Withstands vibration and temperature changes.
Faster Charging Efficiency: Recharges quicker than standard lead-acid batteries.

This makes AGM batteries an ideal choice for off-grid cabins, RVs, marine use, and solar backup power systems.

How to Extend the Life of Your AGM Battery

To get the most from your AGM batteries, follow these expert tips:

1. Avoid Deep Discharges – Keep your battery above 50% whenever possible.

2. Use the Right Charger – Choose a smart charger or MPPT solar charge controller designed for AGM batteries.

3. Keep Batteries Cool and Dry – Store in ventilated, shaded areas to prevent overheating.

4. Regularly Check Voltage – Use your AGM Battery Voltage Chart to ensure performance stays within healthy ranges.

5. Equalize Occasionally (if recommended) – Some AGM batteries benefit from mild equalization to balance cell voltages.

Choosing the Right AGM Battery for Your Solar Setup

Choosing the right battery depends on your system size, usage, and runtime requirements.

Small Systems (RVs, Boats, Small Solar Kits)

For compact setups, you need a balance between size and capacity.

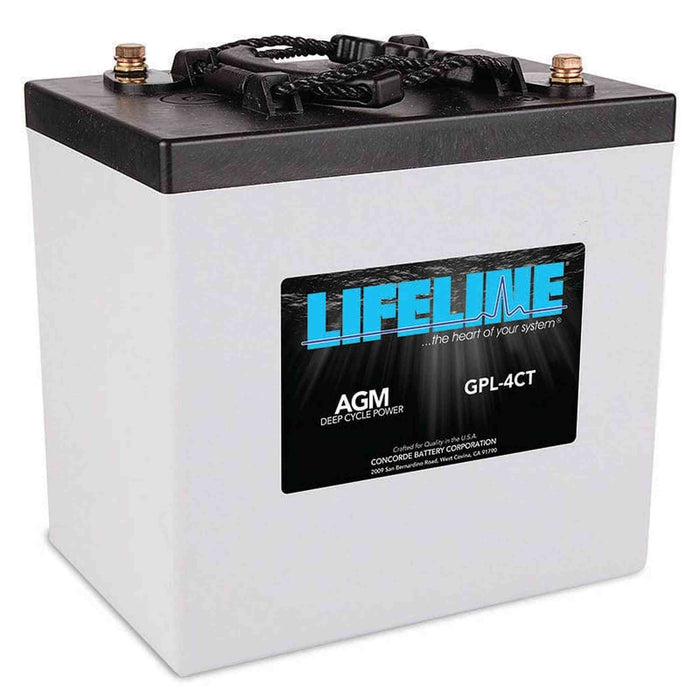

The Lifeline GPL-4CT 6V 220Ah AGM Battery is a strong option here—offering reliable deep-cycle performance while remaining space-efficient for mobile or marine environments.

Medium Systems (Home Backup, Mid-Size Solar)

These systems typically run on 24V configurations and require higher capacity for longer runtime.

Pairing multiple AGM batteries in series/parallel allows you to scale efficiently while maintaining stable voltage.

Large Systems (Off-Grid Homes, High Energy Demand)

For large-scale applications, capacity becomes critical.

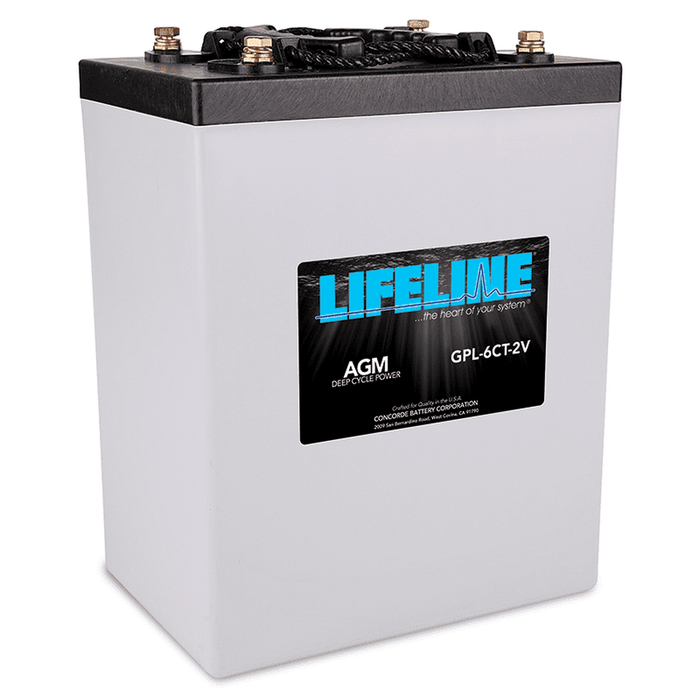

Industrial-grade batteries like the Lifeline GPL-6CT-2V 900Ah AGM Battery are designed for high-demand environments, delivering extended runtime and reliable performance for off-grid homes and backup systems.

At Solar Guys Pro, you can explore a wide range of AGM and lithium batteries, solar kits, inverters, and accessories — all designed for efficient, reliable off-grid power.

Recommended AGM Batteries for Reliable Performance

If you’re upgrading or building a system, choosing a high-quality AGM battery makes a significant difference in long-term reliability.

• The Lifeline GPL-4CT 6V 220Ah AGM Battery is ideal for compact and mobile setups
• The Lifeline GPL-6CT 6V 300Ah AGM Battery offers excellent capacity for RVs and solar systems
• The Lifeline GPL-6CT-2V 900Ah AGM Battery is built for large-scale energy storage and off-grid applications

Each option supports different system sizes while maintaining the durability and performance AGM batteries are known for.

Why the AGM Battery Voltage Chart Matters

In the world of solar and off-grid power, accurate monitoring is key to long-term performance. The AGM Battery Voltage Chart serves as a simple yet powerful tool that helps you:

• Track charge levels accurately
• Prevent battery damage
• Improve system efficiency
• Extend battery lifespan

Whether you’re maintaining a 12V setup in your RV or a 48V system for your home, knowing how to interpret these charts empowers you to use your batteries more efficiently.

Explore premium AGM and lithium battery options at Solar Guys Pro your trusted source for solar energy products, inverters, and power storage solutions built for off-grid independence.

Final Thoughts

The better you understand your battery, the more efficient and reliable your entire energy system becomes.

By combining proper voltage monitoring with the right battery choice, you can:

• Maximize usable energy
• Reduce long-term costs
• Ensure consistent performance

If you’re building or upgrading your system, integrating high-quality AGM batteries into your setup is one of the smartest long-term investments you can make.
